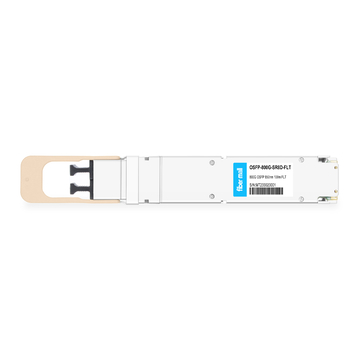

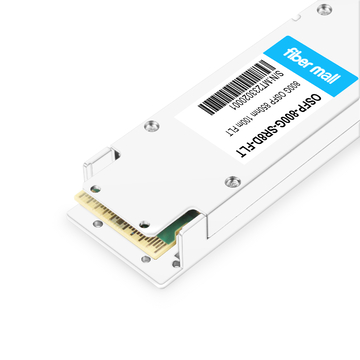

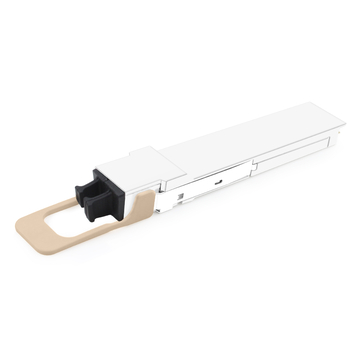

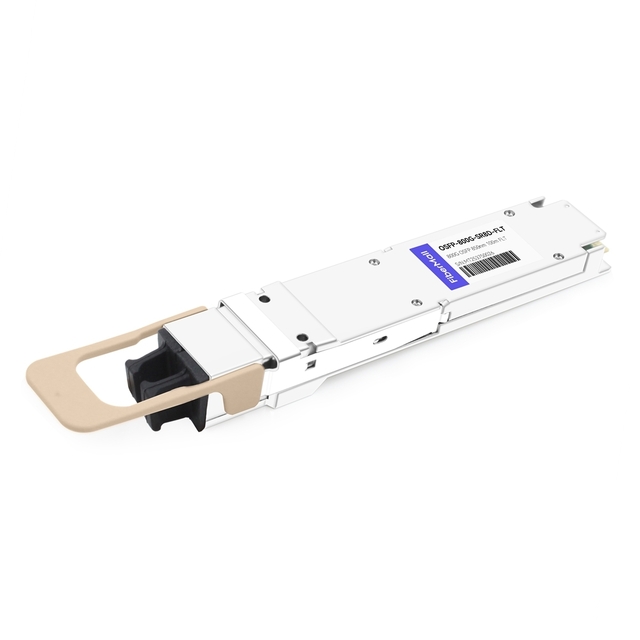

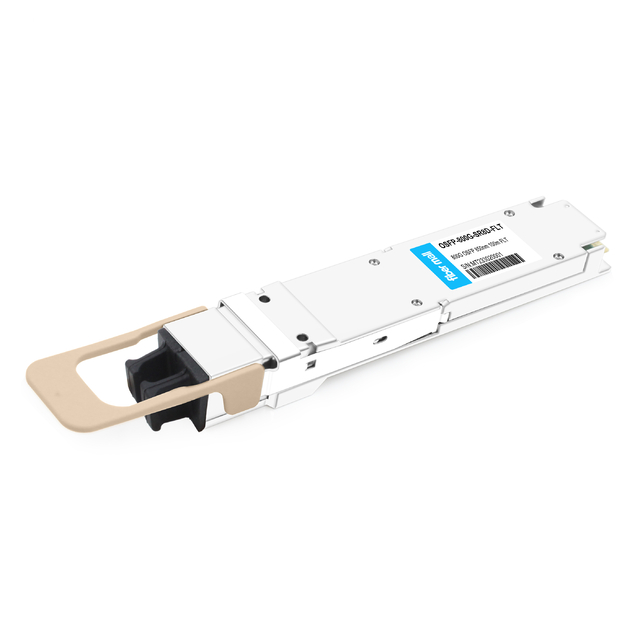

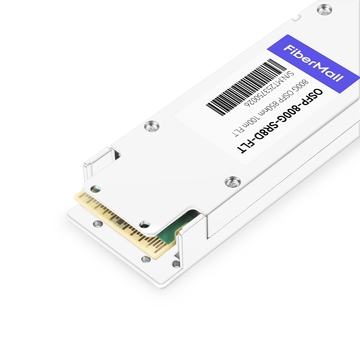

OSFP-800G-SR8D-FLT OSFP 8x100G SR8 Flat Top PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

OSFP-800G-SR8D OSFP 8x100G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, Flat Top, DOM)

FiberMall's OSFP-800G-SR8D-FLT is fully compatible with NVIDIA's MMA4Z00-NS-FLT. OSFP 800G transceiver modules are designed for 800 Gigabit Ethernet links over 60m OM3 or 100m OM4 fiber. The module has 8 independent electrical input/output channels, each operating at up to 106.25Gbps. The transceiver comprises two transmitter/receiver units, each operating at 850nm wavelength. The transmitter path of the module contains a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. The receiver path consists of 8 photodiodes and two 4-channel TIAs with a PAM4 re-timer. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with OSFP MSA.

Quality Certifications

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safet standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Quality Assurance

Excellent quality is the foundation of Fiberalls’ survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Features

Accelerating AI Network Architecture Innovation

FiberMall offers a forward-looking InfiniBand solution with high bandwidth efficiency, excellent scalability, predictable network latency, and enhanced security.

The FiberMall 800G OSFP SR8 module utilizes advanced Dual Broadcom DSP and VCSEL chips, offering high-speed, low-power, and stable data transmission in 800G links. It provides higher bandwidth for hyperscale data centers and cloud infrastructures.

Low BER on par with NVlDlA originals

During LL FEC (272,257) testing, FiberMall transceivers achieve Pre-FEC BER of -8~-10, and near-zero post-correction, reducing operations and maintenance (O&M) complexity and costs.

Understand the differences in heat sink design for better device connectivity

Exploring the differences in heat sink design between finned-top OSFP and flat-top OSFP shells for better data transmission.

Our Advantages

Rigorous Industrial Product Testing

Optical communication products belong to industrial products, which require high stability and reliability. FiberMall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably.

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Coding (EEPROM Programming) Testing system
