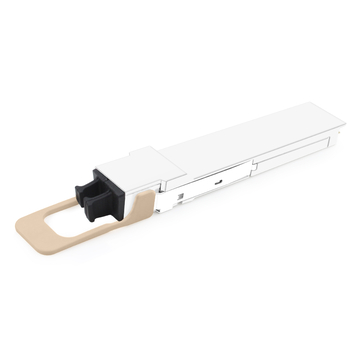

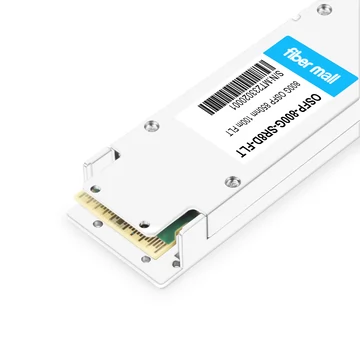

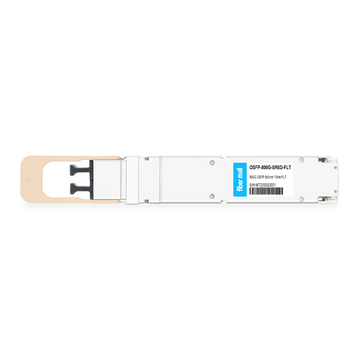

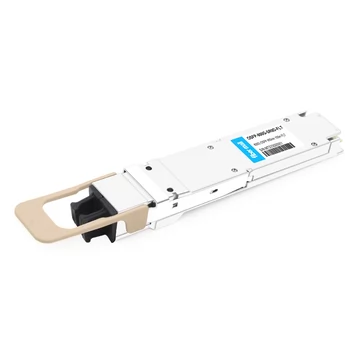

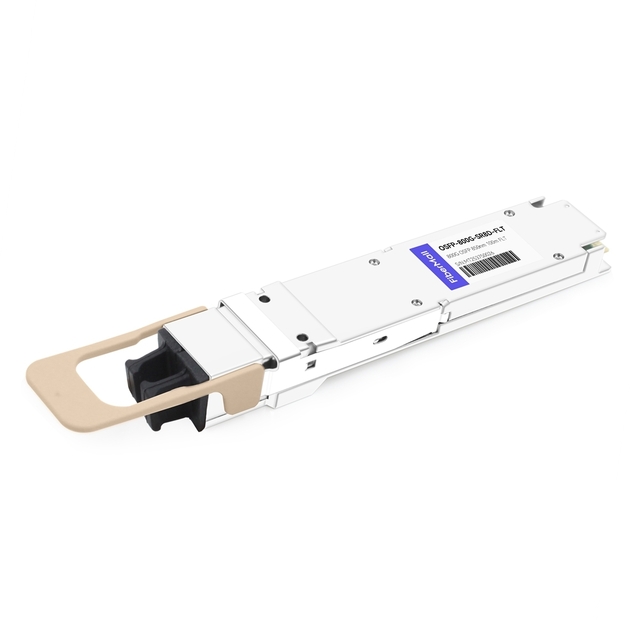

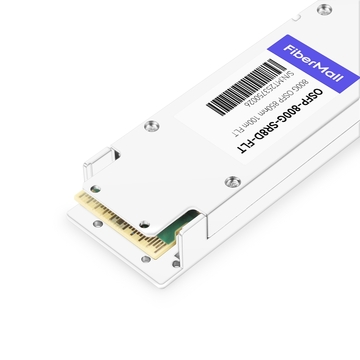

NVIDIA MMA4Z00-NS-FLT Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:19210
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compatible
NVIDIA
FM PN:
OSFP-800G-SR8D-FLT
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

NVIDIA MMA4Z00-NS-FLT Compatible OSFP 2x400G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, Flat Top, DOM)

OSFP 800G transceiver modules are designed for 800 Gigabit Ethernet links over 60m OM3 or 100m OM4 fiber. The module has 8 independent electrical input/output channels, each operating at up to 106.25Gbps. The transceiver comprises two transmitter/receiver units, each operating at 850nm wavelength. The transmitter path of the module contains a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. The receiver path consists of 8 photodiodes and two 4-channel TIAs with a PAM4 re-timer. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with OSFP MSA.

Product Details

NVIDIA Compatible MMA4Z00-NS-FLTVendor Name FiberMall
Form Factor OSFPMax Data Rate 850Gbps(8x 106.25Gbps)
Wavelength 850nmMax Distance 60m on OM3/100m on OM4
Modulation Format PAM4Host Required FEC

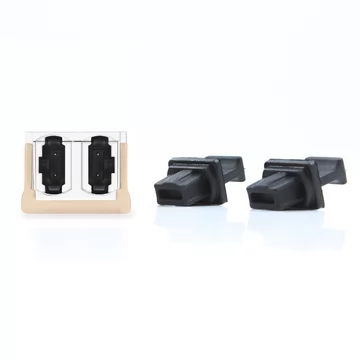

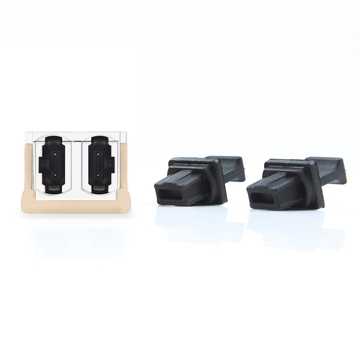

Connector Dual MTP/MPO-12Voltage Supply 3.3V
Cable Type MMFDDM Support Yes
Transmitter Type 850nm VCSELReceiver Type PIN
TX Power -4.6~+4.0dBmReceiver Sensitivity < -4.6dBm
Operation Temperature 0 to 70°C (32 to 158°F)Maximum Power < 15W
Protocols CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cuApplication 800G Ethernet, Data Center Interconnect, Infiniband Interconnects

800G NDR Switch to DGX H100

NVIDIA Quantum-2 IB Switch to DGX H100 Links Using Single-mode Optics


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

Our Advantages

NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

Keep In Stock

Fast Delivery
NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

Professional Service

Technical Support
NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall
Coding (EEPROM Programming)
NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall
Testing system

FiberMall's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.







Switch Introduction

NVIDIA Quantum-2 Switches

NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall


     Network Card Introduction

NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall



NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall


NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall


Network Card List




Notes:

1. 100G can be supported as either 4x25G NRZ or 2x50G.
2. 200G can be supported as either 4x50G or 2x100G.
3. 400G is supported as 4x100G.
4. QSFP112 is backwards compatible with QSFP56 and QSFP28.


Switch to Switch (NDR) - Optics



Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper


Switch to Switch (NDR) - HDR&EDR


Switch to HCA

Switch to HCA (NDR) - Optics



Switch to HCA (NDR) - Copper




Switch-to-DGX H100 GPU Systems

NVIDIA MMA4Z00-NS-FLT OSFP 2x400G SR8 Dual MPO-12 Module | FiberMall
NVIDIA Compatible
MMA4Z00-NS-FLT
MMA4Z00-NS
Vendor Name
FiberMall
FiberMall
Form Factor
OSFP
OSFP
Max Data Rate
850Gbps(8x 106.25Gbps)
850Gbps(8x 106.25Gbps)
Wavelength
850nm
850nm
Max Distance
60m on OM3/100m on OM4
60m on OM3/100m on OM4
Modulation Format
PAM4
PAM4
Host Required
FEC
FEC
Connector
Dual MTP/MPO-12
Dual MTP/MPO-12
Voltage Supply
3.3V
3.3V
Cable Type
MMF
MMF
DDM Support
Yes
Yes
Transmitter Type
850nm VCSEL
850nm VCSEL
Receiver Type
PIN
PIN
TX Power
-4.6~+4.0dBm
-4.6~+4.0dBm
Receiver Sensitivity
< -4.6dBm
< -4.6dBm
Operation Temperature
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
Maximum Power
< 15W
< 15W
Protocols
CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu
CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu
Application
800G Ethernet, Data Center Interconnect, Infiniband Interconnects
800G Ethernet, Data Center Interconnect, Infiniband Interconnects
