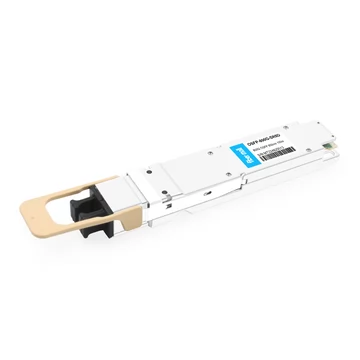

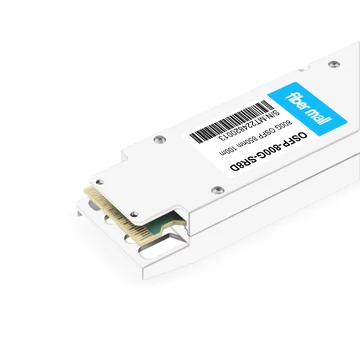

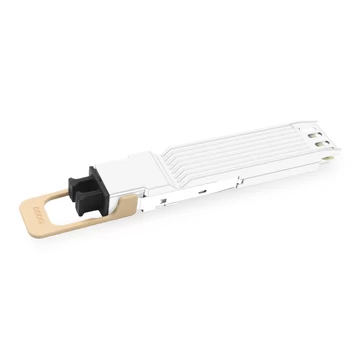

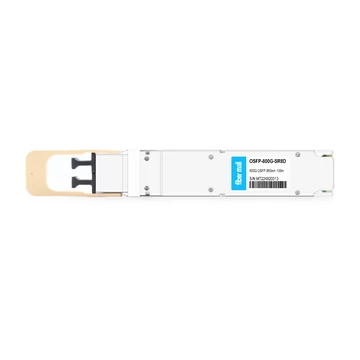

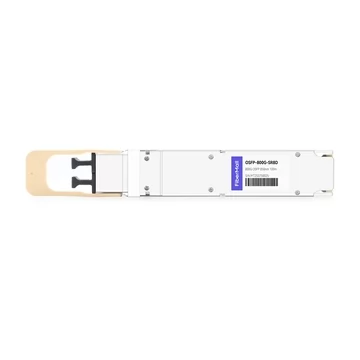

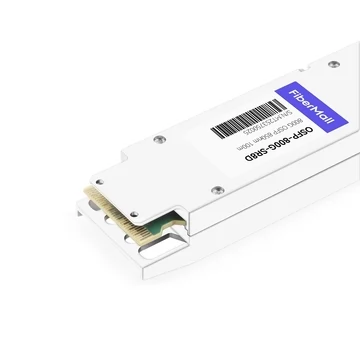

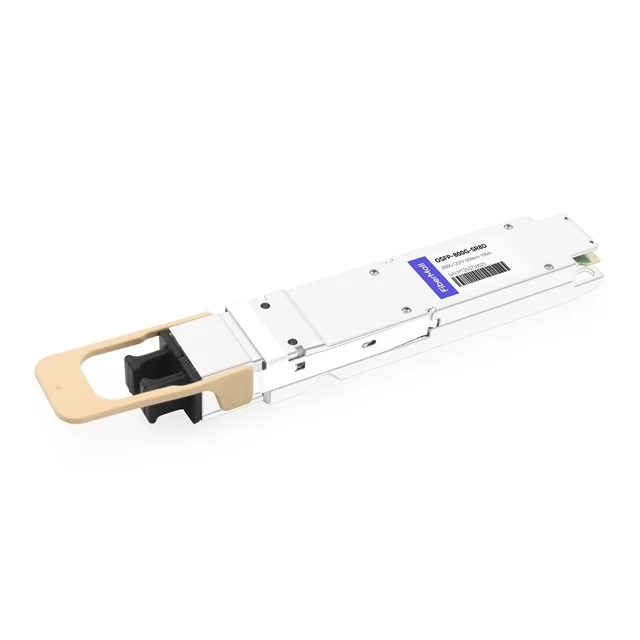

This product is an Eight-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 800Gigabit Ethernet applications. This transceiver is a high-performance module for short-range data communication and interconnect applications. It integrates eight data lanes in each direction with 8x53.125GBd. The length of OSFP SR8 is up to 60 meters over OM3 MMF or 100 meters over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm.
Product Details
NVIDIA Compatible
MMA4Z00-NS
Vendor Name
FiberMall
Form Factor
OSFP
Max Data Rate
850Gbps(8x 106.25Gbps)
Wavelength
850nm
Max Distance
60m on OM3/100m on OM4
Modulation Format
PAM4
Host Required
FEC
Connector

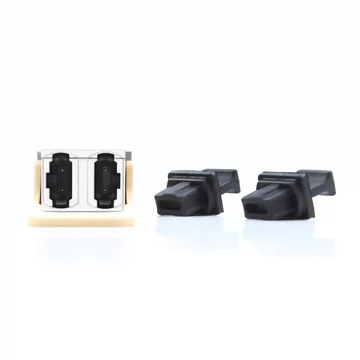

Dual MTP/MPO-12
Voltage Supply
3.3V
Cable Type
MMF
DDM Support
Yes
Transmitter Type
850nm VCSEL
Receiver Type
PIN
TX Power
-4.6~+4.0dBm
Receiver Sensitivity
< -4.6dBm
Operation Temperature
0 to 70°C (32 to 158°F)
Maximum Power
< 15W
Protocols
CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu
Application
800G Ethernet, Data Center Interconnect, Infiniband Interconnects
NVIDIA Quantum-2 IB Switch Links Using Single-mode Optics
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safet standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Quality Assurance
Excellent quality is the foundation of Fiberalls’ survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Features
Accelerating AI Network Architecture Innovation
FiberMall offers a forward-looking InfiniBand solution with high bandwidth efficiency, excellent scalability, predictable network latency, and enhanced security.
The FiberMall 800G OSFP SR8 module utilizes advanced Dual Broadcom DSP and VCSEL chips, offering high-speed, low-power, and stable data transmission in 800G links. It provides higher bandwidth for hyperscale data centers and cloud infrastructures.
1. High-quality imported chips
Built-in Dual Broadcom Chips, ensuring high performance, low power consumption, and stable signal
transmission
2. Unique shell design
The Finned-top and Flat-top modules featuring advanced different heat sink design for improved heat dissipation, can handle higher power consumption.
3. Advanced technology
Offer high-performance, reliable solutions for AI, cloud, and data center networks. Support a total throughput of up to 800G, enabling higher bandwidth density
4. Quality certification
100% Verified by the Original, perfectly compatible with NVIDIA QM9700 / 9790 devices.
Low BER on par with NVlDlA originals
During LL FEC (272,257) testing, FiberMall transceivers achieve Pre-FEC BER of -8~-10, and near-zero post-correction, reducing operations and maintenance (O&M) complexity and costs.
Understand the differences in heat sink design for better device connectivity
Exploring the differences in heat sink design between finned-top OSFP and flat-top OSFP shells for better data transmission.

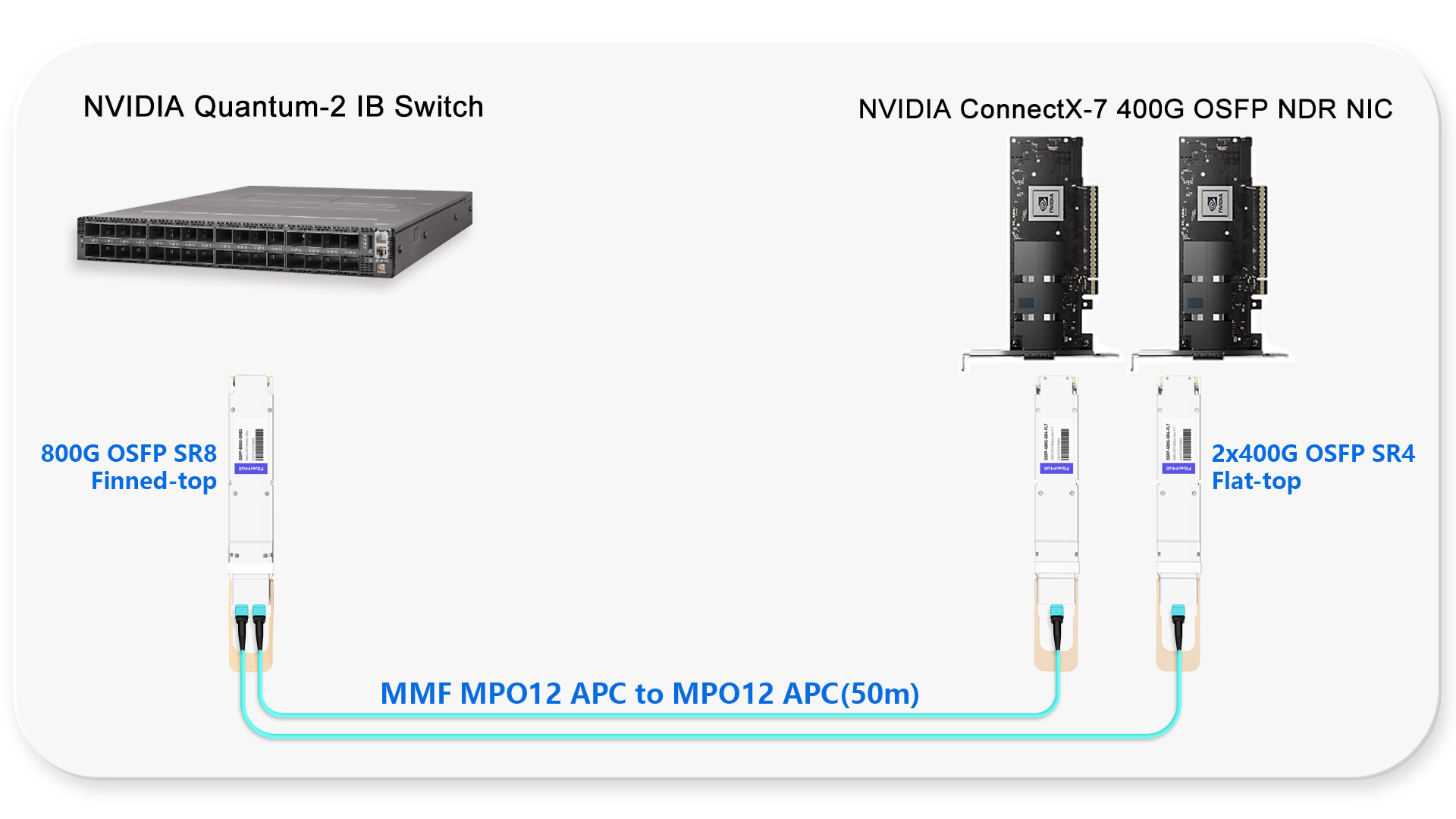

Finned-top OSFP transceivers are only for the Quantum-2 and Spectrum-4 switches as the switches require
finned-top OSFP shells for extra transceiver cooling.
The OSFP shell features a flat-top design and uses a riding heat sink (cooling fins) on the ConnectX-7
connector cage. 400G OSFP modules are used in ConnectX-7/OSFP adapters.
