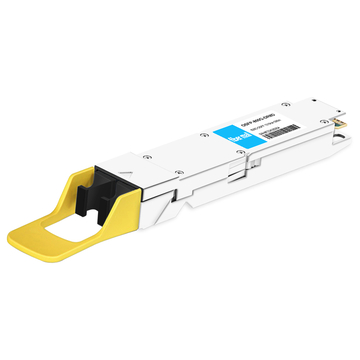

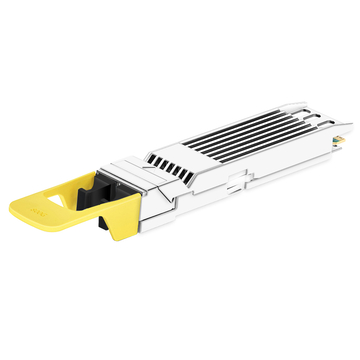

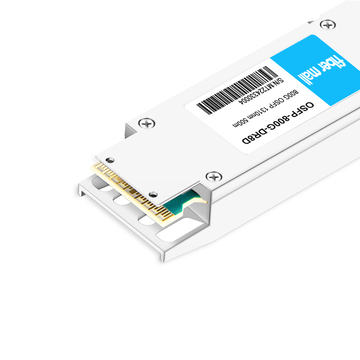

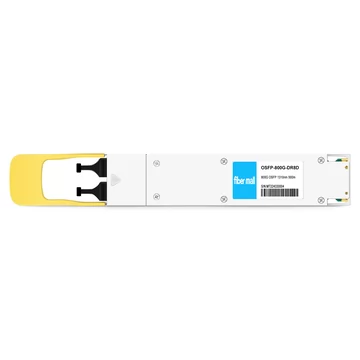

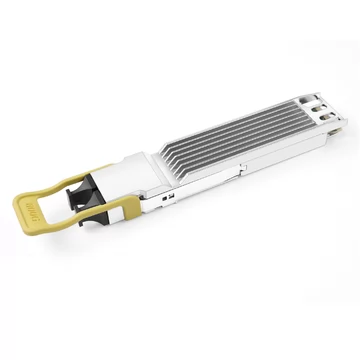

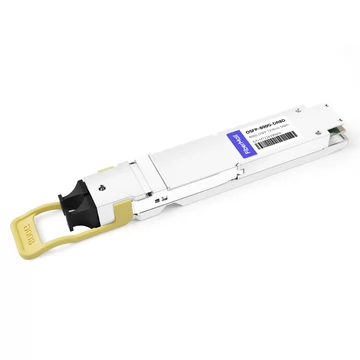

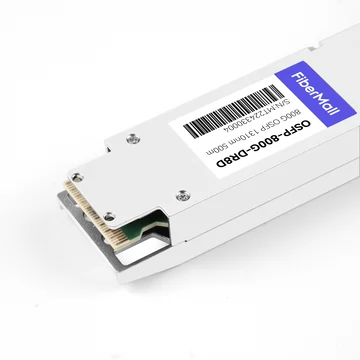

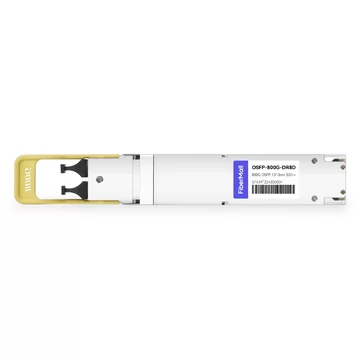

NVIDIA MMS4X00-NS Compatible 800Gb/s Twin-port OSFP 2x400G Optical Transceiver Module (SMF, 1310nm, 100m, Dual MTP/MPO-12, DOM)NVIDIA MMS4X00-NS Compatible 800G-DR8 OSFP Transceiver Modules are designed for 800 Gigabit Ethernet links over 100m of single-mode fiber. The module has 8 independent electrical input/output channels, each operating at up to 106.25Gbps. The transceiver consists of two transmitter/receiver units, each operating on a set of wavelengths on the 1310nm ITU G.694.2 CWDM grid. The module's transmitter path consists of a bidirectional PAM4 re-timer ASIC integrating a silicon photonic laser and two 4-channel modulator drivers.
Product Details
NVIDIA Compatible |
MMS4X00-NS | Vendor Name |
FiberMall |
Form Factor |
OSFP | Max Data Rate |
850Gbps (8x 106.25Gbps) |
Wavelength |
1310nm | Max Distance |
100m |
Modulation Format |
PAM4 | Host Required |
FEC |
Connector |

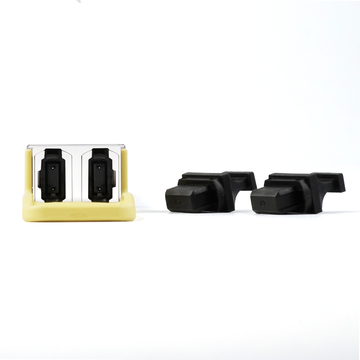

Dual MTP/MPO-12 | Voltage Supply |
3.3V |
Cable Type |
SMF | DDM Support |
Yes |
Transmitter Type |
EML | Receiver Type |
SiFotonics PD array |
TX Power |
-5.9~+4.0dBm | Receiver Sensitivity |
< -3.9dBm |
Operation Temperature |
0 to 70°C (32 to 158°F) | Maximum Power |
< 16.5W |
Protocols |
CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu | Application |
800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Our Advantages
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
Keep In Stock
- Fast Delivery
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
Professional Service
- Technical Support
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
Temperature Impact
- High and low temperature cycle,aging test to ensure good temperature characteristics
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
Mechanical Impact
- Mechanicalvibration testing to ensure the stability of products
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
EMI Testing
- Excellent designand rigorous testing ensuregood EMI performance
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
MTBF Testing
- MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
- Coding (EEPROM Programming)
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
- Testing system
Switch Introduction
NVIDIA Quantum-2 Switches
Network Card Introduction e
|
![]()
|
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
![NVIDIA MMS4X00-NS Compatible OSFP 2x400G DR8 Transceiver | FiberMall]()
![]()
Network Card List
![]()
Notes: 1. 100G can be supported as either 4x25G NRZ or 2x50G. 2. 200G can be supported as either 4x50G or 2x100G. 3. 400G is supported as 4x100G. 4. QSFP112 is backwards compatible with QSFP56 and QSFP28.
Switch to Switch (NDR) - Optics
Switch to Switch (NDR) - Copper
Switch to Switch (NDR) - Active Copper & Direct Attached Copper
Switch to Switch (NDR) - HDR&EDR
Switch to HCA
Switch to HCA (NDR) - Optics
Switch to HCA (NDR) - Copper
Switch-to-DGX H100 GPU Systems
|
