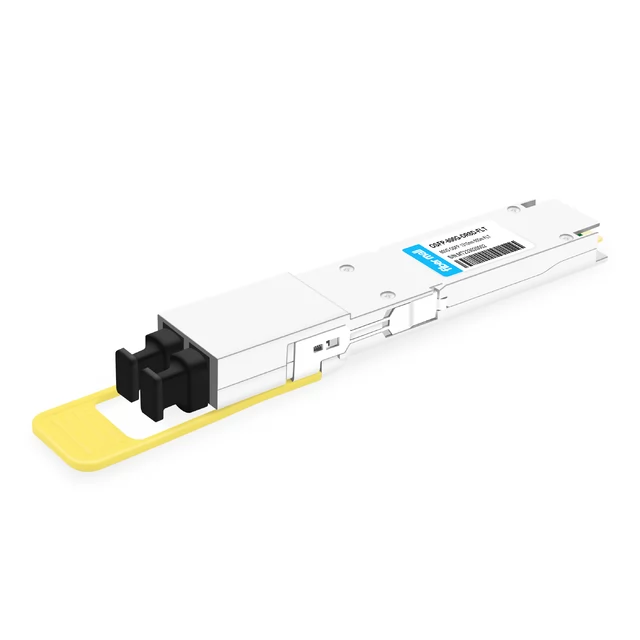

NVIDIA MMS4X00-NS-FLT OSFP 2x400G DR8 Transceiver | FiberMall

Add to wish

NVIDIA MMS4X00-NS-FLT Compatible 800G Twin-port OSFP 2x400G Flat Top PAM4 1310nm 100m DOM Dual MTP/MPO-12 SMF Optical Transceiver Module

Name: NVIDIA MMS4X00-NS-FLT Compatible 800G Twin-port OSFP 2x400G Flat Top PAM4 1310nm 100m DOM Dual MTP/MPO-12 SMF Optical Transceiver Module
Brand: fibermall
SKU: 19242
Price: 1200.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19242

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: NVIDIA

Transceiver Type: MMA4Z00-NS; MMA4Z00-NS-FLT; MMS4X00-NM; MMS4X00-NS; MMS4X00-NM-FLT; MMS4X00-NS-FLT; MMS4X50-NM

FM PN:

OSFP-800G-DR8D-FLT

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

NVIDIA MMS4X00-NS-FLT Compatible 800Gb/s Twin-port OSFP 2x400G Optical Transceiver Module (SMF, 1310nm, 100m, Dual MTP/MPO-12, Flat Top, DOM)

The OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 500m single-mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel. This transceiver consists of two transmitter/receiver units, with each operating on a set of wavelengths on the ITU G.694.2 CWDM at 1310nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an EML laser and an 8-channel internal driver. On the receiver path, used 8 photodiodes and two 4-channel TIA arrays, along with the PAM4 re-timer.

Product Details

NVIDIA Compatible	MMS4X00-NS-FLT	Vendor Name	FiberMall
Form Factor	OSFP	Max Data Rate	850Gbps (8x 106.25Gbps)
Wavelength	1310nm	Max Distance	100m
Modulation Format	PAM4	Host Required	FEC
Connector	Dual MTP/MPO-12	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	EML	Receiver Type	SiFotonics PD array
TX Power	-5.9~+4.0dBm	Receiver Sensitivity	< -3.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 16.5W
Protocols	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

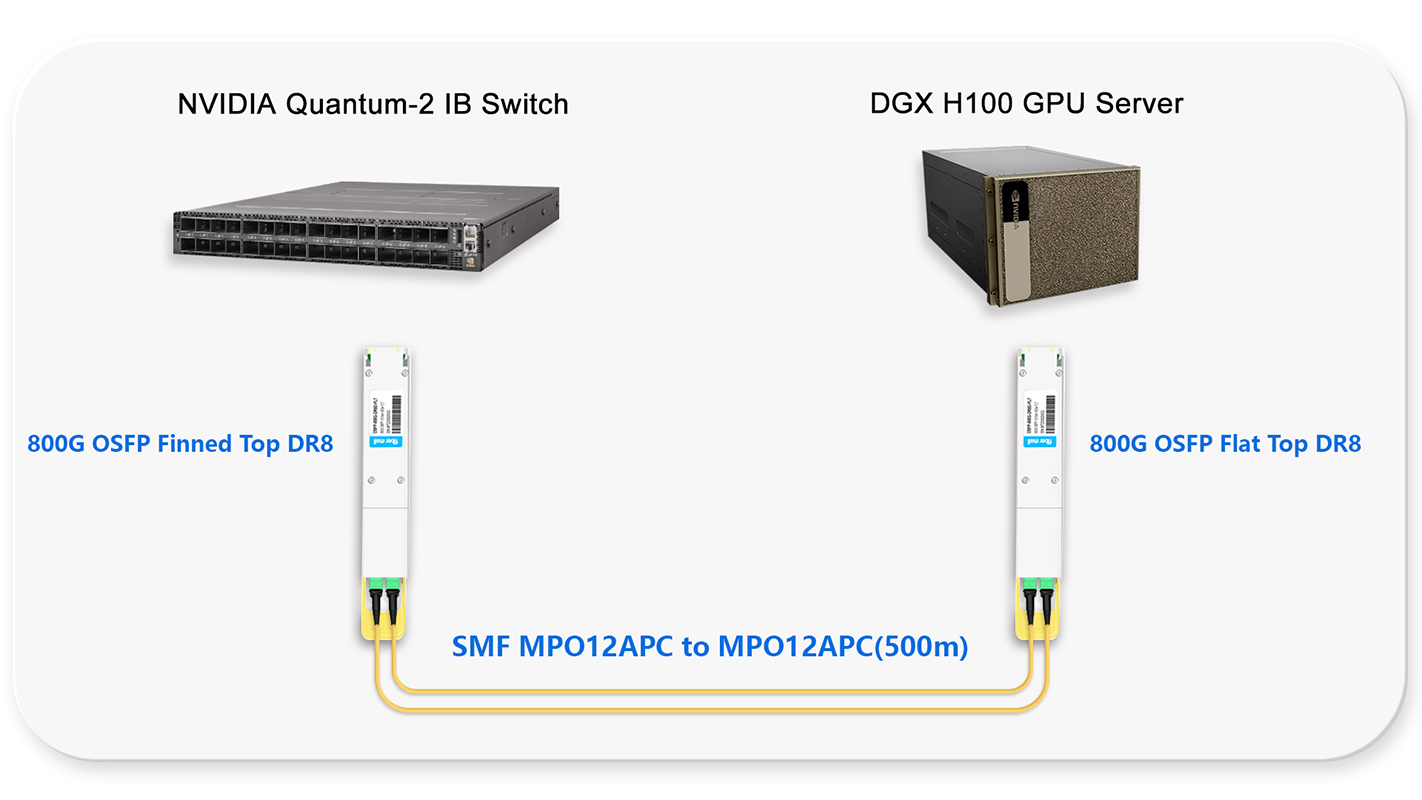

800G NDR Switch to DGX H100

NVIDIA Quantum-2 IB Switch to DGX H100 Links Using Single-mode Optics

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes:

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

3. 400G is supported as 4x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems

	OSFP-800G-DR8D-FLT	OSFP-800G-DR8D	OSFP-800G-DR8D	OSFP-800G-DR8D-FLT
NVIDIA Compatible	MMS4X00-NM-FLT	MMS4X00-NM	MMS4X00-NS	MMS4X00-NS-FLT
Vendor Name	FiberMall	FiberMall	FiberMall	FiberMall
Form Factor	OSFP	OSFP	OSFP	OSFP
Max Data Rate	850Gbps (8x 106.25Gbps)	850Gbps (8x 106.25Gbps)	850Gbps (8x 106.25Gbps)	850Gbps (8x 106.25Gbps)
Wavelength	1310nm	1310nm	1310nm	1310nm
Max Distance	500m	500m	100m	100m
Modulation Format	PAM4	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC	FEC
Connector	Dual MTP/MPO-12	Dual MTP/MPO-12	Dual MTP/MPO-12	Dual MTP/MPO-12
Voltage Supply	3.3V	3.3V	3.3V	3.3V
Cable Type	SMF	SMF	SMF	SMF
DDM Support	Yes	Yes	Yes	Yes
Transmitter Type	EML	EML	EML	EML
Receiver Type	SiFotonics PD array	SiFotonics PD array	SiFotonics PD array	SiFotonics PD array
TX Power	-5.9~+4.0dBm	-5.9~+4.0dBm	-5.9~+4.0dBm	-5.9~+4.0dBm
Receiver Sensitivity	< -3.9dBm	< -3.9dBm	< -3.9dBm	< -3.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 16.5W	< 16.5W	< 16.5W	< 16.5W
Protocols	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu
Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects	800G Ethernet, Data Center Interconnect, Infiniband Interconnects	800G Ethernet, Data Center Interconnect, Infiniband Interconnects	800G Ethernet, Data Center Interconnect, Infiniband Interconnects
