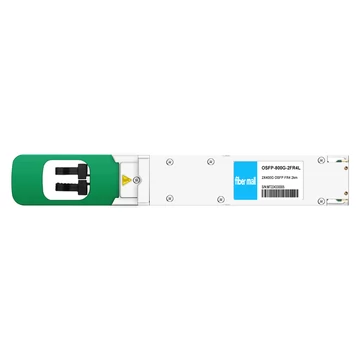

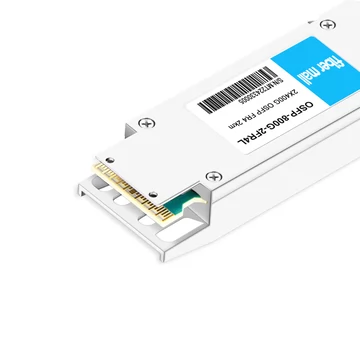

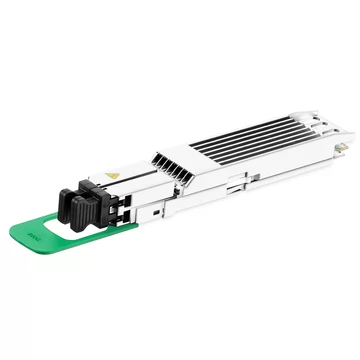

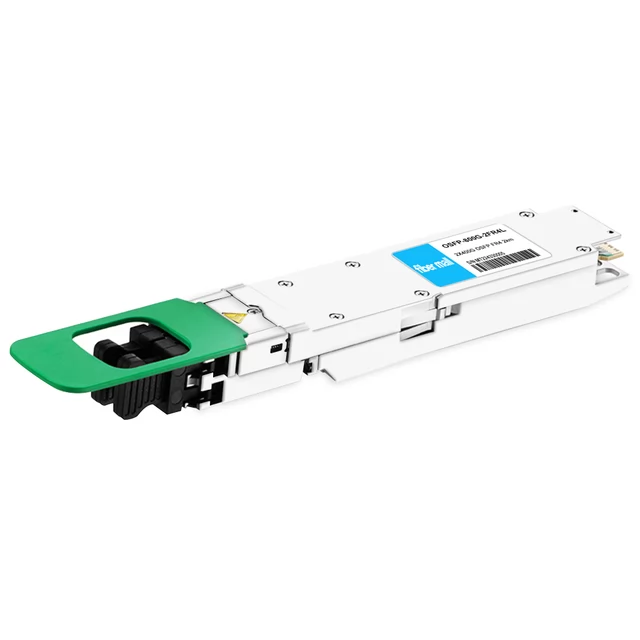

Arista OSFP-800G-2FR4 Compatible OSFP 2x400G FR4 transceiver modules are designed for 800 Gigabit Ethernet links over 2km of single-mode fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. This transceiver comprises two transmitter/receiver units, each operating on 4 wavelengths on the ITU G.694.2 CWDM grid near 1310nm.
| NVIDIA Compatible | MMS4X50-NM | Vendor Name | FiberMall |
| Form Factor | OSFP | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1271nm, 1291nm, 1311nm and 1331nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Dual Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -3.2~+4.4dBm | Receiver Sensitivity | < -4.6dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 16W |
| Protocols | IEE802.3ck, IEEE 802.3cu, OSFP MSA | Application | 800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
2x400G Twin NDR Switch Links Using Single-mode Optics
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v 0 to 2km over SMF with KP4 FEC supported at the Host side
v Dual Duplex LC connector
v Triple Rate operation: 106.25Gbps (PAM4), 53.125Gbps (PAM4), 26.5625Gbps (NRZ)
v Cooled EML CWDM transmitter
v PIN and TIA array on the receiver side
v Power dissipation < 18W
v Safety Certification: TUV/UL/FDA
v RoHS Compliant
v Application for 1x800G Ethernet, 2x400G Ethernet, 2x200G Ethernet
