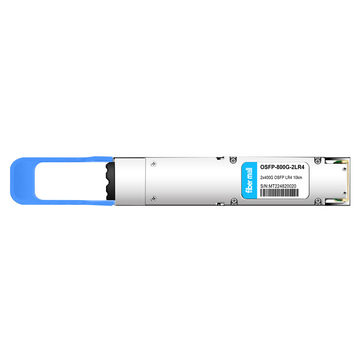

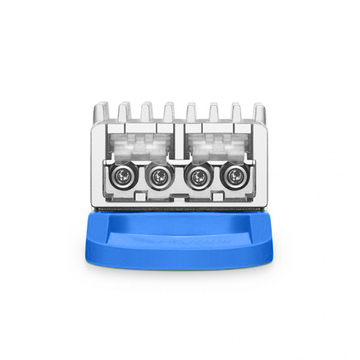

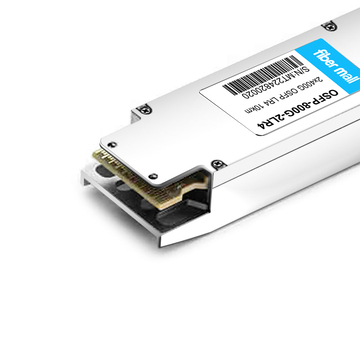

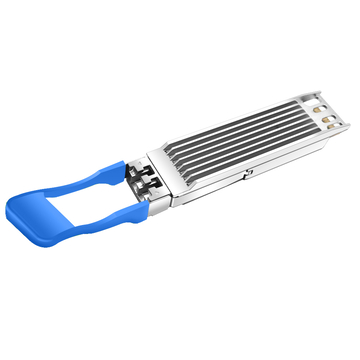

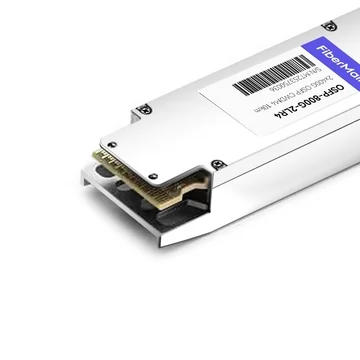

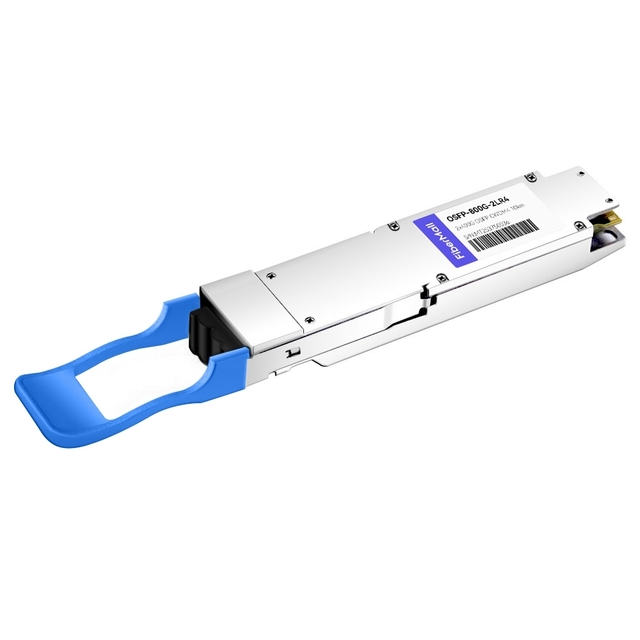

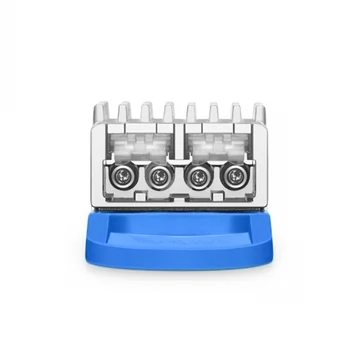

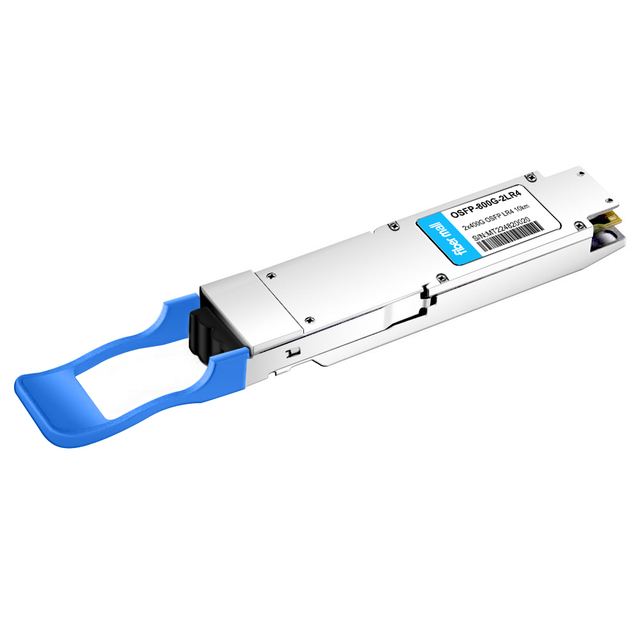

OSFP 2x400G LR4 transceiver modules are designed for 800G Gigabit Ethernet links over 10km of single-mode fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. This transceiver consists of two transmitter/receiver units, with each operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm. The module's transmitter path contains a bidirectional PAM4 re-timer ASIC integrating an 8-channel modulator driver, 8 externally modulated lasers, and two optical multiplexers. On the receiver path, two optical demultiplexers are coupled to eight photodiodes and two 4-channel TIA arrays, as well as a PAM4 re-timer. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with OSFP MSA.
| FiberMall P/N | OSFP-800G-2LR4 | Vendor Name | FiberMall |
| Form Factor | OSFP | Max Data Rate | 850Gbps(8x 106.25Gbps) |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 10km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Dual CS | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | CWDM4 EML | Receiver Type | PIN |
| TX Power | -2.7~+5.1dBm | Receiver Sensitivity | <-9dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 16.0W |
| Protocols | CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu | Application | 800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
