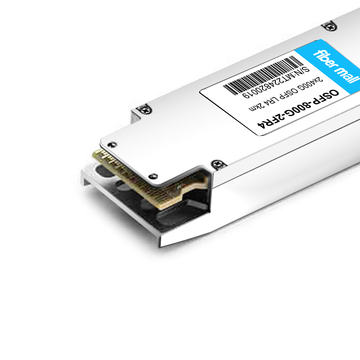

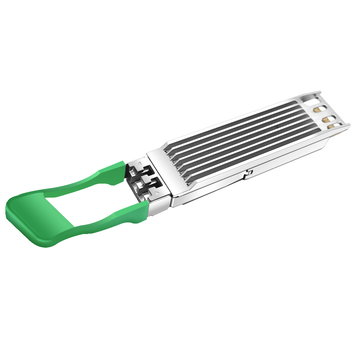

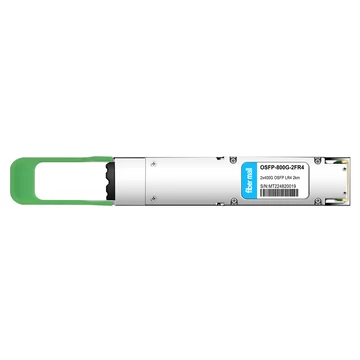

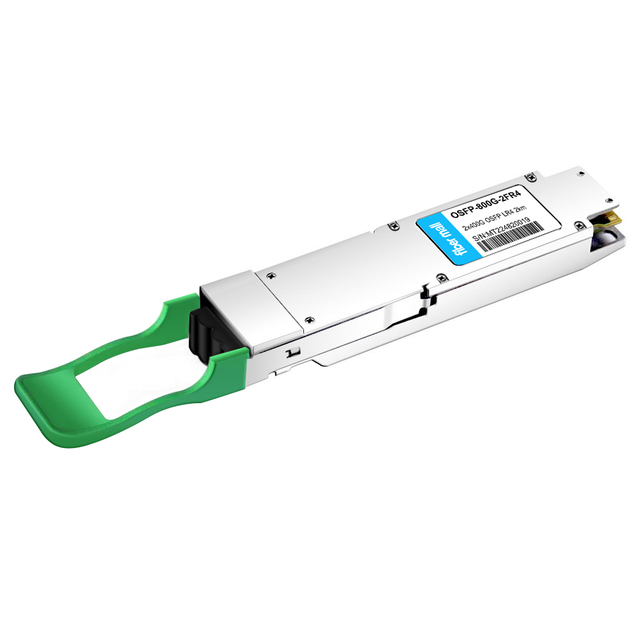

OSFP 2x400G FR4 transceiver modules are designed for 800 Gigabit Ethernet links over 2km of single-mode fiber. The module has 8 independent electrical input/output channels, each operating at up to 106.25Gbps. This transceiver consists of two transmitter/receiver units, each operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1310nm.
| FiberMall P/N | OSFP-800G-2FR4 | Vendor Name | FiberMall |
| Form Factor | OSFP | Max Data Rate | 850Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Dual CS | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | CWDM EML | Receiver Type | PIN |
| TX Power | -3.2~+4.4dBm | Receiver Sensitivity | < -4.6dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 18W |
| Protocols | CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu | Application | 800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v 0 to 2km over SMF with KP4 FEC supported at the Host side

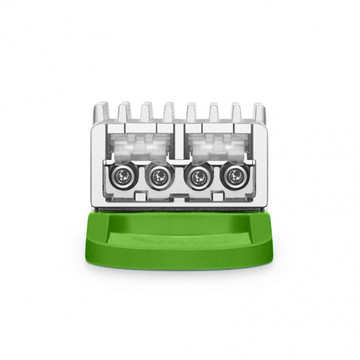

v Dual SMF CS connector
v Triple Rate operation: 106.25Gbps (PAM4), 53.125Gbps (PAM4), 26.5625Gbps (NRZ)
v Cooled EML CWDM transmitter
v PIN and TIA array on the receiver side
v Power dissipation < 18W
v Safety Certification: TUV/UL/FDA
v RoHS Compliant
v Application for 1x800G Ethernet, 2x400G Ethernet, 2x200G Ethernet
