{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

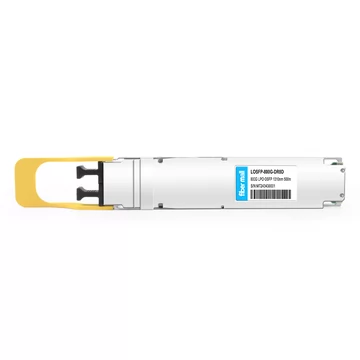

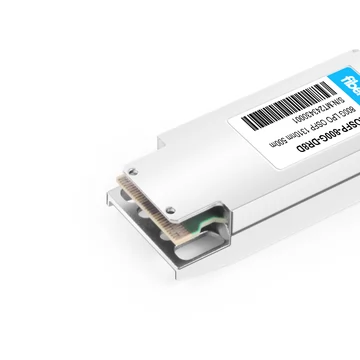

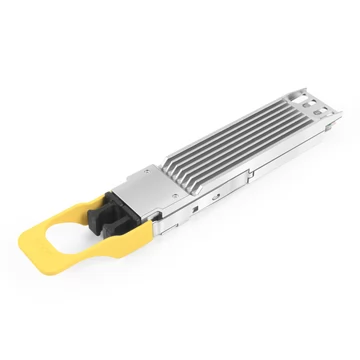

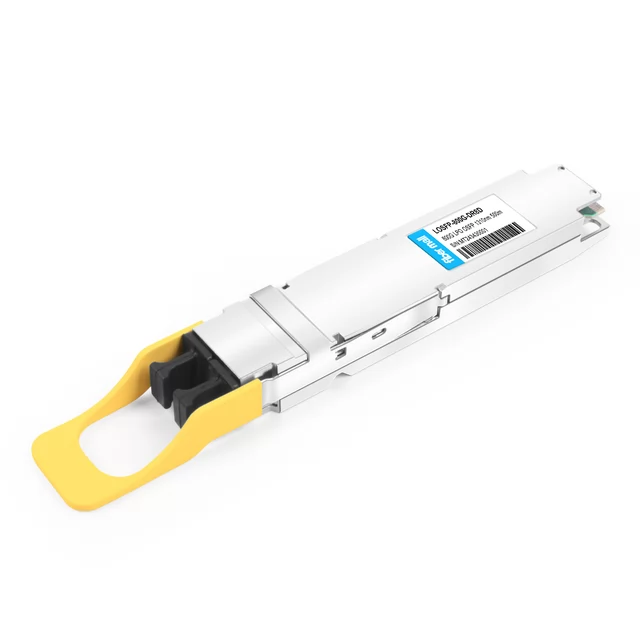

| FiberMall P/N | LOSFP-800G-DR8D | Vendor Name | FiberMall |
| Form Factor | OSFP | Max Data Rate | 850Gbps (8x 106.25Gbps) |
| Wavelength | 1310nm | Max Distance | 500m |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Dual MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML | Receiver Type | SiFotonics PD array |
| TX Power | -5.9~+4.0dBm | Receiver Sensitivity | < -3.9dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 16.5W |
| Protocols | OSFP MSA Compliant, CMIS Rev 5.0 | Application | 800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Q: Please confirm the fiber interface inside the module is MPO-12 APC (angled face) or MPO-12 UPC (flat face). By A***y on 2024-04-19
A: LOSFP-800G-DR8D requires MPO-12 APC for connection.By CHEN YIFEN on 2024-04-20
