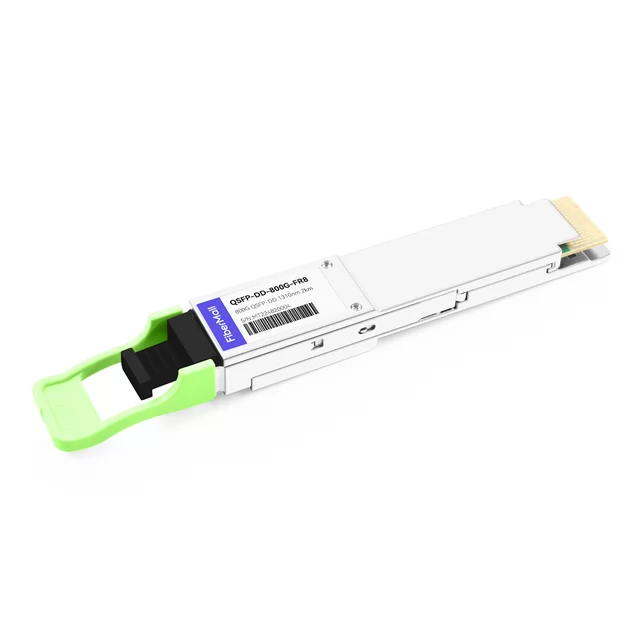

QSFP-DD 8x100G FR/DR8+ Optical Transceiver Module | FiberMall

Add to wish

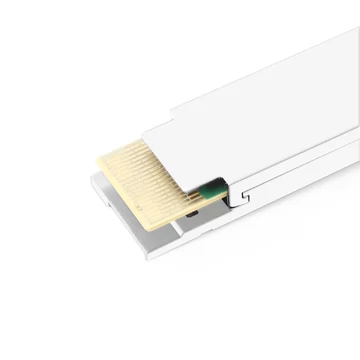

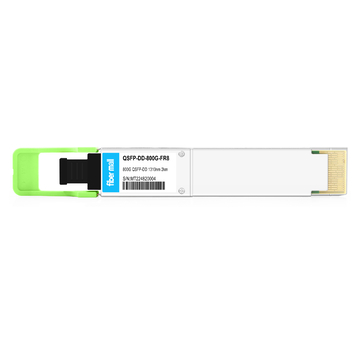

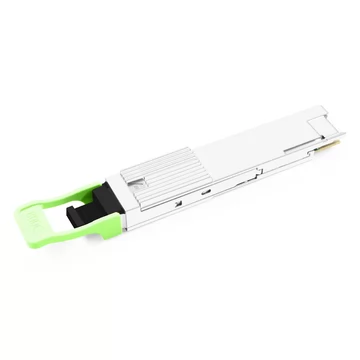

QSFP-DD-800G-FR8 QSFP-DD 8x100G FR PAM4 1310nm 2km DOM MPO-16 SMF Optical Transceiver Module

Name: QSFP-DD-800G-FR8 QSFP-DD 8x100G FR PAM4 1310nm 2km DOM MPO-16 SMF Optical Transceiver Module
Brand: fibermall
SKU: 18979
Price: 2000.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18979

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Transceiver Type: OSFP-800G-SR8; OSFP-800G-SR8D; OSFP-800G-SR8D-FLT; OSFP-800G-DR8; OSFP-800G-DR8D; OSFP-800G-DR8D-FLT; QSFP-DD-800G-SR8; LOSFP-800G-SR8D; OSFP-800G-FR8; QSFP-DD-800G-DR8; OSFP-800G-2FR4; OSFP-800G-2FR4L; LOSFP-800G-SR8; LQSFP-DD-800G-SR8; LQSFP-DD-800G-SR8D; QSFP-DD-800G-DR8D; LOSFP-800G-DR8D; OSFP-800G-FR8D; QSFP-DD-800G-FR8; QSFP-DD-800G-FR8D; OSFP-800G-LR8; OSFP-800G-LR8D; QSFP-DD-800G-LR8; QSFP-DD-800G-LR8D; QSFP-DD-800G-DR4; OSFP-800G-DR4; QSFP-DD-800G-2FR4; OSFP-800G-2LR4; OSFP-800G-2LR4L; QSFP-DD-800G-2FR4L; LQSFP-DD-800G-DR8D; LOSFP-800G-2FR4L; OSFP-800G-2FR2; OSFP-800G-2FR2L; OSFP-800G-FR8L; QSFP-DD-800G-2FR2; QSFP-DD-800G-2FR2L; QSFP-DD-800G-2LR4; QSFP-DD-800G-2LR4L; LQSFP-DD-800G-2FR4L; OSFP-800G-FR4; QSFP-DD-800G-FR8L; QSFP-DD-800G-FR4

FM PN:

QSFP-DD-800G-FR8

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

QSFP-DD-800G-FR8 QSFP-DD 8x100G FR Optical Transceiver Module (SMF, 1310nm, 2km, MPO-16, DDM)

QSFP-DD 8x100G FR/DR8+ transceiver module is designed for 800 Gigabit Ethernet links over 2km of single-mode fiber. The module contains 8 parallel channels at a center wavelength of 1310nm, each operating at 106.25G. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with QSFP-DD MSA.

Product Details

FiberMall P/N	QSFP-DD-800G-FR8	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	850Gbps(8x 106.25Gbps)
Wavelength	1310nm	Max Distance	2km
Modulation Format	PAM4	Host Required	KP4-FEC
Connector	MTP/MPO-16	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	EML	Receiver Type	PIN
TX Power	-3.1~+4.0dBm	Receiver Sensitivity	<-7.1dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 18W
Protocols	CMIS Rev 5.0, lEEE802.3ck, IEEE 802.3cu, QSFP-DD MSA	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

800G QSFP-DD

Product Features

v Supports 850Gbps

v Single 3.3V Power Supply

v Up to 2km over SMF with KP4 FEC supported at the Host side

v MPO-16 connector

v 8x106.25Gbps (PAM4) electrical interface

v PIN and TIA array on the receiver side

v Power dissipation < 18W

v Case temperature range: 0°C to 70°C(commercial)

v Safety Certification: TUV/UL/FDA*1

v RoHS Compliant

v Application for 8x100G Ethernet, 2x400G Ethernet, 1x800G Ethernet
