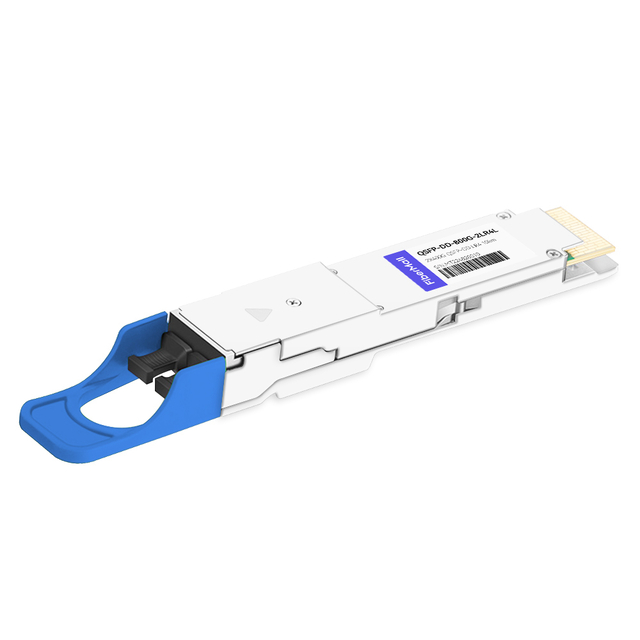

QSFP-DD 2x400G LR4 Optical Transceiver Module | FiberMall

Add to wish

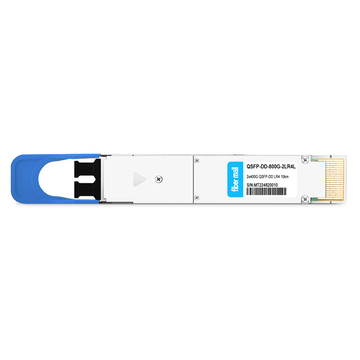

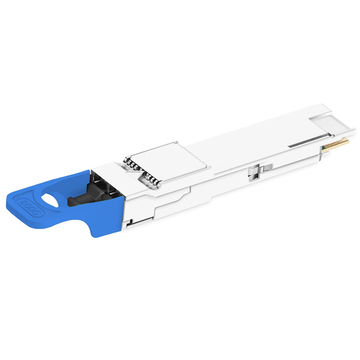

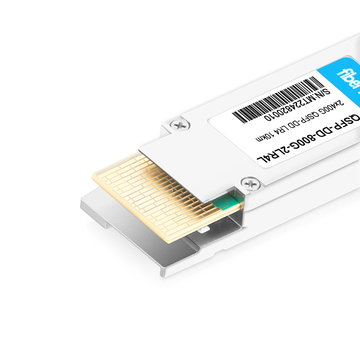

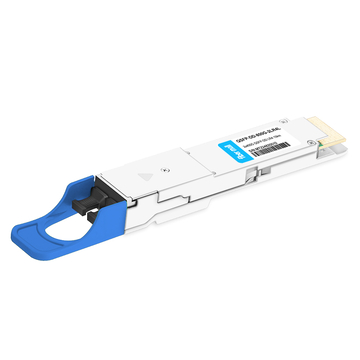

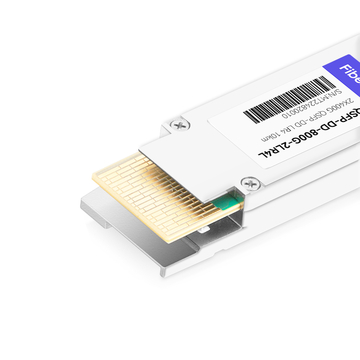

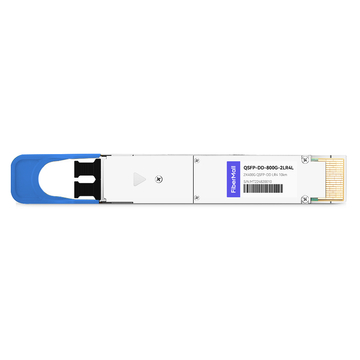

QSFP-DD-800G-2LR4L QSFP-DD 2x400G LR4 PAM4 CWDM4 10km Dual duplex LC SMF FEC Optical Transceiver Module

Name: QSFP-DD-800G-2LR4L QSFP-DD 2x400G LR4 PAM4 CWDM4 10km Dual duplex LC SMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 18985
Price: 4500.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18985

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; Arista; Juniper

Transceiver Type: OSFP-800G-SR8; OSFP-800G-SR8D; OSFP-800G-SR8D-FLT; OSFP-800G-DR8; OSFP-800G-DR8D; OSFP-800G-DR8D-FLT; QSFP-DD-800G-SR8; LOSFP-800G-SR8D; OSFP-800G-FR8; QSFP-DD-800G-DR8; OSFP-800G-2FR4; OSFP-800G-2FR4L; LOSFP-800G-SR8; LQSFP-DD-800G-SR8; LQSFP-DD-800G-SR8D; QSFP-DD-800G-DR8D; LOSFP-800G-DR8D; OSFP-800G-FR8D; QSFP-DD-800G-FR8; QSFP-DD-800G-FR8D; OSFP-800G-LR8; OSFP-800G-LR8D; QSFP-DD-800G-LR8; QSFP-DD-800G-LR8D; QSFP-DD-800G-DR4; OSFP-800G-DR4; QSFP-DD-800G-2FR4; OSFP-800G-2LR4; OSFP-800G-2LR4L; QSFP-DD-800G-2FR4L; LQSFP-DD-800G-DR8D; LOSFP-800G-2FR4L; OSFP-800G-2FR2; OSFP-800G-2FR2L; OSFP-800G-FR8L; QSFP-DD-800G-2FR2; QSFP-DD-800G-2FR2L; QSFP-DD-800G-2LR4; QSFP-DD-800G-2LR4L; LQSFP-DD-800G-2FR4L; OSFP-800G-FR4; QSFP-DD-800G-FR8L; QSFP-DD-800G-FR4

FM PN:

QSFP-DD-800G-2LR4L

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

QSFP-DD 2x400G LR4 PAM4 CWDM4 lanes MUX/DEMUX design 10km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm Dual duplex LC SMF 10km with FEC DDM)

QSFP-DD 2x400G LR4 transceiver module is designed for 800 Gigabit Ethernet links over 10km single mode fiber. This transceiver consists of two transmitter/receiver units, with each operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm. The electrical interface of the module is compliant with the 800GAUI-8 interface as defined by IEEE 802.3ck and compliant with QSFP-DD MSA.

Product Details

FiberMall P/N	QSFP-DD-800G-2LR4L	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	850Gbps(8x 106.25Gbps)
Wavelength	1271nm, 1291nm, 1311nm, 1331nm	Max Distance	10km
Modulation Format	PAM4	Host Required	FEC
Connector	Dual Duplex LC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	CWDM EML	Receiver Type	PIN
TX Power	-2.7~+5.1dBm	Receiver Sensitivity	＜-9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 16W
Protocols	QSFP-DD MSA, IEEE 802.3bs	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

800G QSFP-DD

Product Features

v Supports 850Gbps

v Single 3.3V Power Supply

v Up to 10km over SMF with KP4 FEC supported at the Host side

v Dual duplex LC connector

v 8x106.25Gbps (PAM4) electrical interface

v PIN and TIA array on the receiver side

v Power dissipation < 16W

v Case temperature range: 0°C to 70°C(commercial)

v Safety Certification: TUV/UL/FDA*1

v RoHS Compliant

v Application for 8x100G Ethernet, 2x400G Ethernet, 2x200G Ethernet
