OSFP 8x100G SR8 PAM4 Dual MPO-12 Transceiver | FiberMall

Add to wish

OSFP-800G-SR8D OSFP 8x100G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

Name: OSFP-800G-SR8D OSFP 8x100G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module
Brand: fibermall
SKU: 18988
Price: 750.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18988

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; Arista Networks; H3C

Transceiver Type: OSFP-800G-SR8; OSFP-800G-SR8D; OSFP-800G-SR8D-FLT; OSFP-800G-DR8; OSFP-800G-DR8D; OSFP-800G-DR8D-FLT; QSFP-DD-800G-SR8; LOSFP-800G-SR8D; OSFP-800G-FR8; QSFP-DD-800G-DR8; OSFP-800G-2FR4; OSFP-800G-2FR4L; LOSFP-800G-SR8; LQSFP-DD-800G-SR8; LQSFP-DD-800G-SR8D; QSFP-DD-800G-DR8D; LOSFP-800G-DR8D; OSFP-800G-FR8D; QSFP-DD-800G-FR8; QSFP-DD-800G-FR8D; OSFP-800G-LR8; OSFP-800G-LR8D; QSFP-DD-800G-LR8; QSFP-DD-800G-LR8D; QSFP-DD-800G-DR4; OSFP-800G-DR4; QSFP-DD-800G-2FR4; OSFP-800G-2LR4; OSFP-800G-2LR4L; QSFP-DD-800G-2FR4L; LQSFP-DD-800G-DR8D; LOSFP-800G-2FR4L; OSFP-800G-2FR2; OSFP-800G-2FR2L; OSFP-800G-FR8L; QSFP-DD-800G-2FR2; QSFP-DD-800G-2FR2L; QSFP-DD-800G-2LR4; QSFP-DD-800G-2LR4L; LQSFP-DD-800G-2FR4L; OSFP-800G-FR4; QSFP-DD-800G-FR8L; QSFP-DD-800G-FR4

FM PN:

OSFP-800G-SR8D

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

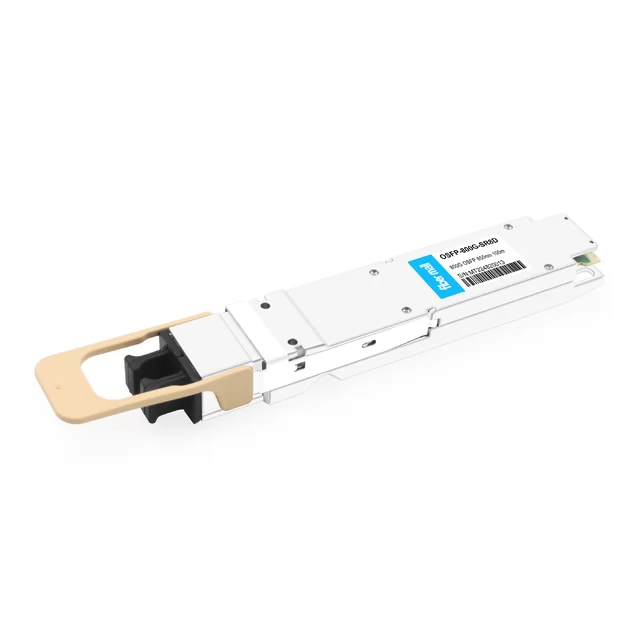

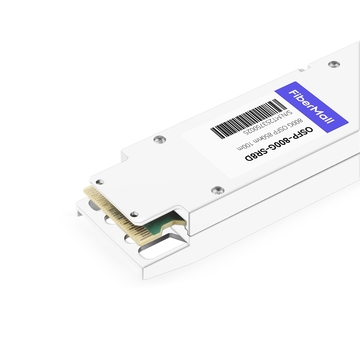

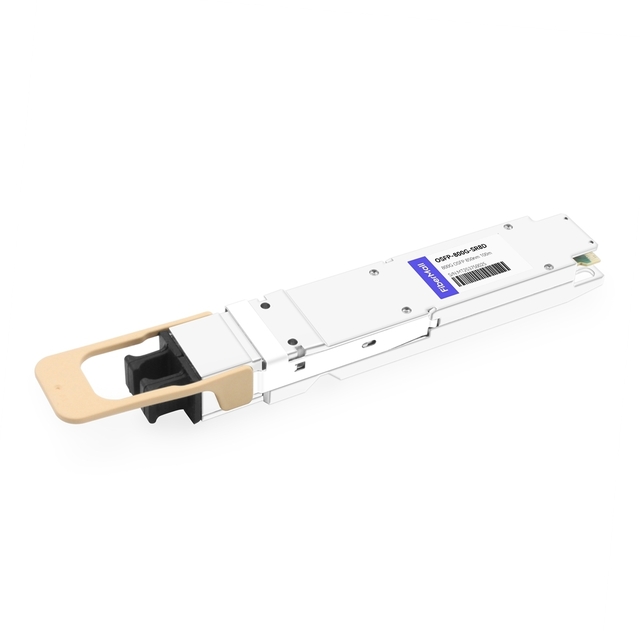

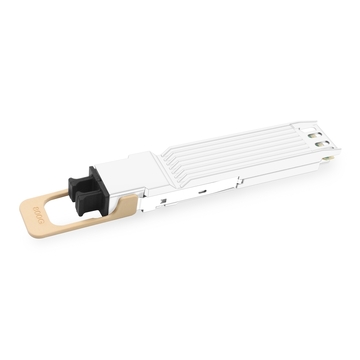

OSFP-800G-SR8D OSFP 8x100G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, DOM)

FiberMall's OSFP-800G-SR8D is fully compatible with NVIDIA's MMA4Z00-NS. This product is an Eight-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 800Gigabit Ethernet applications. This transceiver is a high-performance module for short-range data communication and interconnect applications. It integrates eight data lanes in each direction with 8x53.125GBd. The length of OSFP SR8 is up to 60 meters over OM3 MMF or 100 meters over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

Product Details

FiberMall P/N	OSFP-800G-SR8D	Vendor Name	FiberMall
Form Factor	OSFP	Max Data Rate	850Gbps(8x 106.25Gbps)
Wavelength	850nm	Max Distance	60m on OM3/100m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	Dual MTP/MPO-12	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
TX Power	-4.6~+4.0dBm	Receiver Sensitivity	< -4.6dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 15W
Protocols	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

800g OSFP

Product Features

v Supports 850Gbps

v Single 3.3V Power Supply

v Power dissipation < 15W

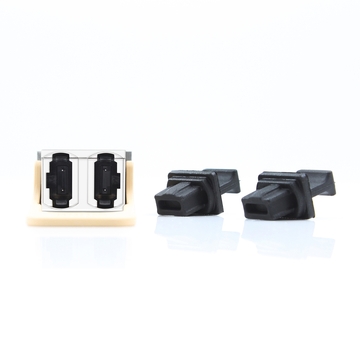

v Dual MPO-12 Connector APC

v VCSEL Transmitter

v PIN and TIA Array on the Receiver Side

v I2C Interface with Integrated Digital Diagnostic Monitoring

v Safety Certification: TUV/UL/FDA*

v RoHS Compliant

v OSFP MSA Compliant

v Application for 8x100G Ethernet, 2x400G Ethernet, 4x200G Ethernet, 8x100G Ethernet
