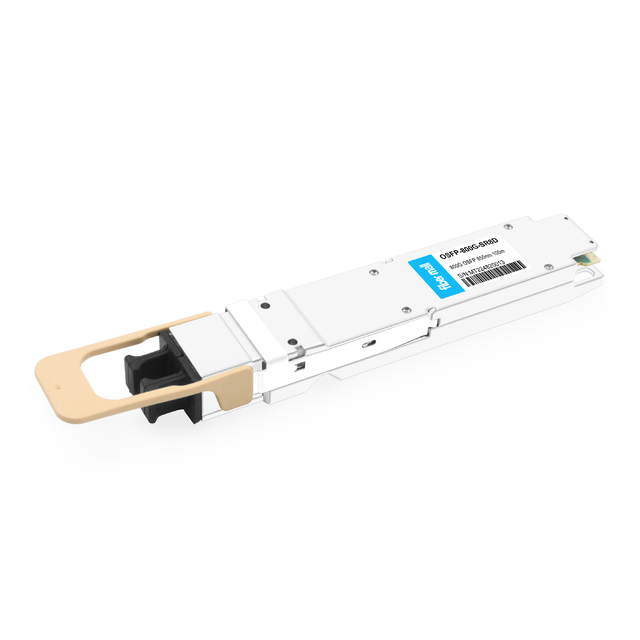

NVIDIA MMA4Z00-NS OSFP 2x400G SR8 Dual MPO-12 Transceiver | FiberMall

Add to wish

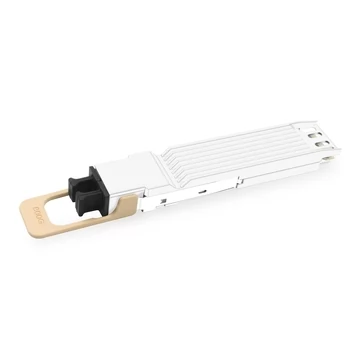

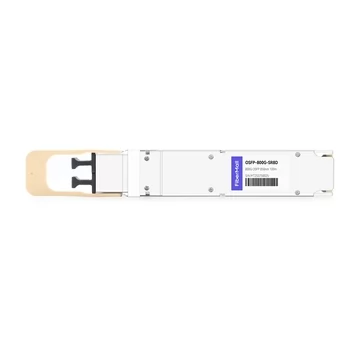

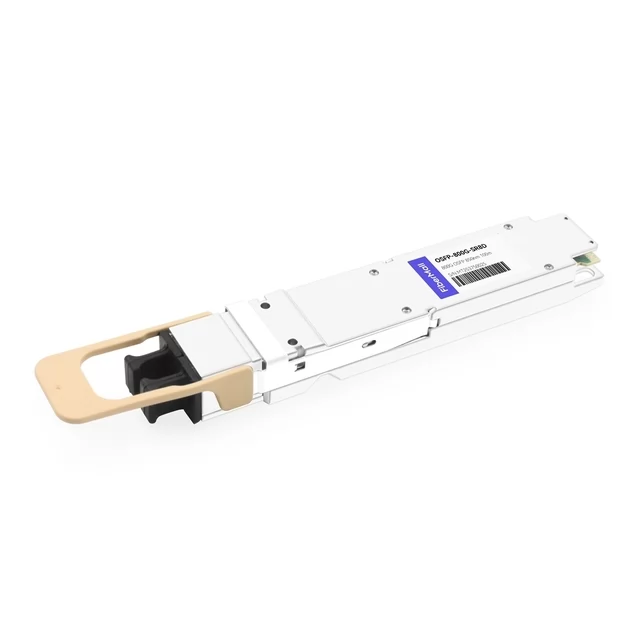

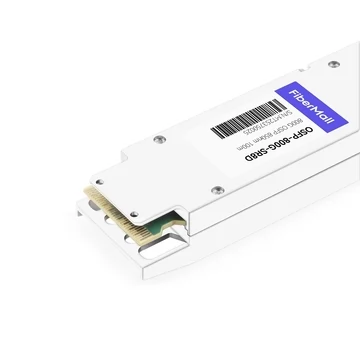

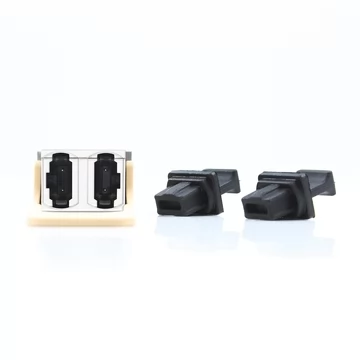

NVIDIA MMA4Z00-NS Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

Name: NVIDIA MMA4Z00-NS Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module
Brand: fibermall
SKU: 19074
Price: 750.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19074

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: NVIDIA

Transceiver Type: MMA4Z00-NS; MMA4Z00-NS-FLT; MMS4X00-NM; MMS4X00-NS; MMS4X00-NM-FLT; MMS4X00-NS-FLT; MMS4X50-NM

FM PN:

OSFP-800G-SR8D

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

NVIDIA MMA4Z00-NS Compatible OSFP 2x400G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, DOM)

This product is an Eight-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 800Gigabit Ethernet applications. This transceiver is a high-performance module for short-range data communication and interconnect applications. It integrates eight data lanes in each direction with 8x53.125GBd. The length of OSFP SR8 is up to 60 meters over OM3 MMF or 100 meters over OM4 MMF. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm.

Product Details

NVIDIA Compatible	MMA4Z00-NS	Vendor Name	FiberMall
Form Factor	OSFP	Max Data Rate	850Gbps(8x 106.25Gbps)
Wavelength	850nm	Max Distance	60m on OM3/100m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	Dual MTP/MPO-12	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
TX Power	-4.6~+4.0dBm	Receiver Sensitivity	< -4.6dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 15W
Protocols	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

800G NDR Switch to Switch

NVIDIA Quantum-2 IB Switch Links Using Single-mode Optics

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes:

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

3. 400G is supported as 4x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems

	OSFP-800G-SR8D-FLT	OSFP-800G-SR8D
NVIDIA Compatible	MMA4Z00-NS-FLT	MMA4Z00-NS
Vendor Name	FiberMall	FiberMall
Form Factor	OSFP	OSFP
Max Data Rate	850Gbps(8x 106.25Gbps)	850Gbps(8x 106.25Gbps)
Wavelength	850nm	850nm
Max Distance	60m on OM3/100m on OM4	60m on OM3/100m on OM4
Modulation Format	PAM4	PAM4
Host Required	FEC	FEC
Connector	Dual MTP/MPO-12	Dual MTP/MPO-12
Voltage Supply	3.3V	3.3V
Cable Type	MMF	MMF
DDM Support	Yes	Yes
Transmitter Type	850nm VCSEL	850nm VCSEL
Receiver Type	PIN	PIN
TX Power	-4.6~+4.0dBm	-4.6~+4.0dBm
Receiver Sensitivity	< -4.6dBm	< -4.6dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 15W	< 15W
Protocols	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu
Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

800G OSFP

Product Features

v Supports 850Gbps

v Single 3.3V Power Supply

v Power dissipation < 15W

v Dual MPO-12 Connector APC

v VCSEL Transmitter

v PIN and TIA Array on the Receiver Side

v I2C Interface with Integrated Digital Diagnostic Monitoring

v Safety Certification: TUV/UL/FDA*

v RoHS Compliant

v OSFP MSA Compliant

v Application for 8x100G Ethernet, 2x400G Ethernet, 4x200G Ethernet, 8x100G Ethernet

Matching Products

Pictures	ID#	Description	Price	Stock	Add to Cart
	460317	NVIDIA MMA4Z00-NS400 Compatible 400G OSFP SR4 Flat Top PAM4 850nm 30m on OM3/50m on OM4 MTP/MPO-12 Multimode FEC Optical Transceiver Module	$ 650.00 / piece	199 pieces	{"pid":"460317","picid":"1177676","name":"NVIDIA MMA4Z00-NS400 Compatible 400G OSFP SR4 Flat Top PAM4 850nm 30m on OM3\/50m on OM4 MTP\/MPO-12 Multimode FEC Optical Transceiver Module","keyword":"400G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1177676-200x200-nvidia-mma4z00-ns400-compatible-400g-osfp-sr4-flat-top-pam4-850nm-30m-on-om3-50m-on-om4-mtp-mpo-12-multimode-fec-optical-transceiv.jpg","test_url":"\/test\/www.fibermall.com\/sale-460317-nvidia-mma4z00-ns400.htm","min_price":"650.00","max_price":"650.00","leftnum":"199","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMA4Z00-NS400 Compatible 400G OSFP SR4 Flat Top PAM4 Optical Transceiver Module (850nm MTP\/MPO12 OM3\/OM4 50m with FEC DDM)This product is a 400Gb\/s Octal Small Form-factor Pluggable (OSFP)","skulist":[{"pskuid":"151897","cid":"605","pid":"460317","sku":"19076","psvid1":"253356","psvid2":"253357","psvid3":"0","psvid4":"0","left_num":"199","price":"650.00","strike_price":"0.00","innercode":"","addtime":"2023-06-24 22:10:21","uptime":"2024-09-20 01:28:43","status":"0"}],"link":"\/sale-460317-nvidia-mma4z00-ns400.htm","displayed_price":{"unit_prefix":"$","value":"650.00","min":"650.00","max":"650.00","usd_min":"650.00","usd_max":"650.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"650.00","subtotal":650},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"650.00","subtotal":650},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"650.00","subtotal":650}]}
	460322	NVIDIA MMS4X00-NS400 Compatible 400G OSFP DR4 Flat Top PAM4 1310nm MTP/MPO-12 500m SMF FEC Optical Transceiver Module	$ 800.00 / piece	Available	{"pid":"460322","picid":"1177686","name":"NVIDIA MMS4X00-NS400 Compatible 400G OSFP DR4 Flat Top PAM4 1310nm MTP\/MPO-12 500m SMF FEC Optical Transceiver Module","keyword":"400G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1177686-200x200-nvidia-mms4x00-ns400-compatible-400g-osfp-dr4-flat-top-pam4-1310nm-mtp-mpo-12-500m-smf-fec-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-460322-nvidia-mms4x00-ns400.htm","min_price":"800.00","max_price":"800.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMS4X00-NS400 Compatible 400G DR4 OSFP Flat Top PAM4 Optical Transceiver Module (1310nm MTP\/MPO-12 500m SMF with FEC DDM)The 400G OSFP DR4 Flat Top transceiver module is designed for use in 400","skulist":[{"pskuid":"151902","cid":"605","pid":"460322","sku":"19081","psvid1":"253366","psvid2":"253367","psvid3":"0","psvid4":"0","left_num":"0","price":"800.00","strike_price":"0.00","innercode":"","addtime":"2023-06-27 22:23:39","uptime":"2024-09-20 01:28:37","status":"0"}],"link":"\/sale-460322-nvidia-mms4x00-ns400.htm","displayed_price":{"unit_prefix":"$","value":"800.00","min":"800.00","max":"800.00","usd_min":"800.00","usd_max":"800.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"800.00","subtotal":800},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"800.00","subtotal":800},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"800.00","subtotal":800}]}
	460378	NVIDIA MMS4X00-NM-FLT Compatible 800G Twin-port OSFP 2x400G Flat Top PAM4 1310nm 500m DOM Dual MTP/MPO-12 SMF Optical Transceiver Module	$ 1,200.00 / piece	Available	{"pid":"460378","picid":"1178053","name":"NVIDIA MMS4X00-NM-FLT Compatible 800G Twin-port OSFP 2x400G Flat Top PAM4 1310nm 500m DOM Dual MTP\/MPO-12 SMF Optical Transceiver Module","keyword":"800G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1178053-200x200-nvidia-mms4x00-nm-flt-compatible-800g-twin-port-osfp-2x400g-flat-top-pam4-1310nm-500m-dom-dual-mtp-mpo-12-smf-optical-transceiver-.jpg","test_url":"\/test\/www.fibermall.com\/sale-460378-nvidia-mms4x00-nm-flt.htm","min_price":"1200.00","max_price":"1200.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMS4X00-NM-FLT Compatible 800Gb\/s Twin-port OSFP 2x400G Optical Transceiver Module (SMF, 1310nm, 500m, Dual MTP\/MPO-12, Flat Top, DOM)The OSFP transceiver module i","skulist":[{"pskuid":"151959","cid":"605","pid":"460378","sku":"19212","psvid1":"253478","psvid2":"253479","psvid3":"0","psvid4":"0","left_num":"0","price":"1200.00","strike_price":"0.00","innercode":"","addtime":"2023-07-25 01:36:06","uptime":"2024-09-20 00:05:32","status":"0"}],"link":"\/sale-460378-nvidia-mms4x00-nm-flt.htm","displayed_price":{"unit_prefix":"$","value":"1,200.00","min":"1,200.00","max":"1,200.00","usd_min":"1200.00","usd_max":"1200.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"1,200.00","subtotal":1200},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"1,200.00","subtotal":1200},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"1,200.00","subtotal":1200}]}
	460376	NVIDIA MMA4Z00-NS-FLT Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module	$ 850.00 / piece	50 pieces	{"pid":"460376","picid":"1177998","name":"NVIDIA MMA4Z00-NS-FLT Compatible 800Gb\/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module","keyword":"800G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1177998-200x200-nvidia-mma4z00-ns-flt-compatible-800gb-s-twin-port-osfp-2x400g-sr8-pam4-850nm-100m-dom-dual-mpo-12-mmf-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-460376-nvidia-mma4z00-ns-flt.htm","min_price":"850.00","max_price":"850.00","leftnum":"50","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMA4Z00-NS-FLT Compatible OSFP 2x400G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, Flat Top, DOM)OSFP 800G transceiver modules are designed for 800 Gigabit Ethernet ","skulist":[{"pskuid":"151957","cid":"605","pid":"460376","sku":"19210","psvid1":"253474","psvid2":"253475","psvid3":"0","psvid4":"0","left_num":"50","price":"850.00","strike_price":"0.00","innercode":"","addtime":"2023-07-25 01:27:26","uptime":"2024-07-17 02:35:22","status":"0"}],"link":"\/sale-460376-nvidia-mma4z00-ns-flt.htm","displayed_price":{"unit_prefix":"$","value":"850.00","min":"850.00","max":"850.00","usd_min":"850.00","usd_max":"850.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"850.00","subtotal":850},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"850.00","subtotal":850},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"850.00","subtotal":850}]}
	460320	NVIDIA MMS4X00-NM Compatible 800Gb/s Twin-port OSFP 2x400G PAM4 1310nm 500m DOM Dual MTP/MPO-12 SMF Optical Transceiver Module	$ 1,100.00 / piece	Available	{"pid":"460320","picid":"1176899","name":"NVIDIA MMS4X00-NM Compatible 800Gb\/s Twin-port OSFP 2x400G PAM4 1310nm 500m DOM Dual MTP\/MPO-12 SMF Optical Transceiver Module","keyword":"800G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1176899-200x200-nvidia-mms4x00-nm-compatible-800gb-s-twin-port-osfp-2x400g-pam4-1310nm-500m-dom-dual-mtp-mpo-12-smf-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-460320-nvidia-mms4x00-nm-2x400g-osfp-dr8.htm","min_price":"1100.00","max_price":"1100.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMS4X00-NM Compatible 800Gb\/s Twin-port OSFP 2x400G Optical Transceiver Module (SMF, 1310nm, 500m, Dual MTP\/MPO-12, DOM)NVIDIA MMS4X00-NM Compatible 800G-DR8 OSFP Transceiver Mod","skulist":[{"pskuid":"151900","cid":"605","pid":"460320","sku":"19079","psvid1":"253362","psvid2":"253363","psvid3":"0","psvid4":"0","left_num":"0","price":"1100.00","strike_price":"0.00","innercode":"","addtime":"2023-06-27 18:52:18","uptime":"2024-09-20 00:04:53","status":"0"}],"link":"\/sale-460320-nvidia-mms4x00-nm-2x400g-osfp-dr8.htm","displayed_price":{"unit_prefix":"$","value":"1,100.00","min":"1,100.00","max":"1,100.00","usd_min":"1100.00","usd_max":"1100.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"1,100.00","subtotal":1100},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"1,100.00","subtotal":1100},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"1,100.00","subtotal":1100}]}
	460400	NVIDIA MCP4Y10-N001-FLT Compatible 1m (3ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC,Flat top on one end and Finned top on other	$ 125.00 / piece	Available	{"pid":"460400","picid":"1178940","name":"NVIDIA MCP4Y10-N001-FLT Compatible 1m (3ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC,Flat top on one end and Finned top on other","keyword":"800G DAC Cable#800G OSFP DAC","picurl":"https:\/\/www.fibermall.com\/photo\/p1178940-200x200-nvidia-mcp4y10-n001-flt-compatible-1m-3ft-800g-twin-port-2x400g-osfp-to-2x400g-osfp-infiniband-ndr-passive-dac-flat-top-on-one-end.jpg","test_url":"\/test\/www.fibermall.com\/sale-460400-nvidia-mcp4y10-n001-flt.htm","min_price":"125.00","max_price":"125.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MCP4Y10-N001-FLT Compatible 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC (OSFP to OSFP DAC Cable, Passive 28AWG, Flat Top and Finned Top 1m)Product Details#CUSTOM#ATTRIB","skulist":[{"pskuid":"151981","cid":"605","pid":"460400","sku":"19177","psvid1":"253522","psvid2":"253523","psvid3":"0","psvid4":"0","left_num":"0","price":"125.00","strike_price":"0.00","innercode":"","addtime":"2023-07-28 00:09:22","uptime":"2024-09-20 00:24:59","status":"0"}],"link":"\/sale-460400-nvidia-mcp4y10-n001-flt.htm","displayed_price":{"unit_prefix":"$","value":"125.00","min":"125.00","max":"125.00","usd_min":"125.00","usd_max":"125.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"39.31","isfree":0,"total":"39.31","datemin":"3","datemax":"5","unit_price":"125.00","subtotal":125},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"47.32","isfree":0,"total":"47.32","datemin":"3","datemax":"5","unit_price":"125.00","subtotal":125},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"48.19","isfree":0,"total":"48.19","datemin":"3","datemax":"5","unit_price":"125.00","subtotal":125}]}
	460394	NVIDIA MCA4J80-N003-FTF Compatible 3m (10ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Active Copper Cable, Flat top on one end and Finned top on other	$ 600.00 / piece	Available	{"pid":"460394","picid":"1178232","name":"NVIDIA MCA4J80-N003-FTF Compatible 3m (10ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Active Copper Cable, Flat top on one end and Finned top on other","keyword":"800G DAC Cable#800G OSFP ACC","picurl":"https:\/\/www.fibermall.com\/photo\/p1178232-200x200-nvidia-mca4j80-n003-ftf-compatible-3m-10ft-800g-twin-port-2x400g-osfp-to-2x400g-osfp-infiniband-ndr-active-copper-cable-flat-top-o.jpg","test_url":"\/test\/www.fibermall.com\/sale-460394-nvidia-mca4j80-n003-ftf.htm","min_price":"600.00","max_price":"600.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MCA4J80-N003-FTF Compatible 800G OSFP InfiniBand NDR ACC (OSFP to OSFP Active Copper Cable, Flat Top, and Finned Top 28\/26AWG 3m)Product Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"151975","cid":"605","pid":"460394","sku":"19171","psvid1":"253510","psvid2":"253511","psvid3":"0","psvid4":"0","left_num":"0","price":"600.00","strike_price":"0.00","innercode":"","addtime":"2023-07-27 23:57:42","uptime":"2023-07-28 00:57:42","status":"0"}],"link":"\/sale-460394-nvidia-mca4j80-n003-ftf.htm","displayed_price":{"unit_prefix":"$","value":"600.00","min":"600.00","max":"600.00","usd_min":"600.00","usd_max":"600.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"58.61","isfree":0,"total":"58.61","datemin":"3","datemax":"5","unit_price":"600.00","subtotal":600},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"69.62","isfree":0,"total":"69.62","datemin":"3","datemax":"5","unit_price":"600.00","subtotal":600},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"70.52","isfree":0,"total":"70.52","datemin":"3","datemax":"5","unit_price":"600.00","subtotal":600}]}
	460402	NVIDIA MCA7J60-N005 Compatible 5m (16ft) 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Active Copper Cable	$ 900.00 / piece	Available	{"pid":"460402","picid":"1178328","name":"NVIDIA MCA7J60-N005 Compatible 5m (16ft) 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Active Copper Cable","keyword":"800G OSFP Breakout ACC","picurl":"https:\/\/www.fibermall.com\/photo\/p1178328-200x200-nvidia-mca7j60-n005-compatible-5m-16ft-800g-twin-port-osfp-to-2x400g-osfp-infiniband-ndr-breakout-active-copper-cable.jpg","test_url":"\/test\/www.fibermall.com\/sale-460402-nvidia-mca7j60-n005.htm","min_price":"900.00","max_price":"900.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MCA7J60-N005 Compatible 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout ACC (OSFP to OSFP Breakout Active Copper Cable 26AWG 5m)Product Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"151983","cid":"605","pid":"460402","sku":"19179","psvid1":"253526","psvid2":"253527","psvid3":"0","psvid4":"0","left_num":"0","price":"900.00","strike_price":"0.00","innercode":"","addtime":"2023-07-28 00:12:44","uptime":"2023-07-28 01:12:44","status":"0"}],"link":"\/sale-460402-nvidia-mca7j60-n005.htm","displayed_price":{"unit_prefix":"$","value":"900.00","min":"900.00","max":"900.00","usd_min":"900.00","usd_max":"900.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"174.37","isfree":0,"total":"174.37","datemin":"3","datemax":"5","unit_price":"900.00","subtotal":900},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"198.21","isfree":0,"total":"198.21","datemin":"3","datemax":"5","unit_price":"900.00","subtotal":900},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"209.68","isfree":0,"total":"209.68","datemin":"3","datemax":"5","unit_price":"900.00","subtotal":900}]}
	460401	NVIDIA MCA7J60-N004 Compatible 4m (13ft) 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Active Copper Cable	$ 800.00 / piece	Available	{"pid":"460401","picid":"1178323","name":"NVIDIA MCA7J60-N004 Compatible 4m (13ft) 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Active Copper Cable","keyword":"800G OSFP Breakout ACC","picurl":"https:\/\/www.fibermall.com\/photo\/p1178323-200x200-nvidia-mca7j60-n004-compatible-4m-13ft-800g-twin-port-osfp-to-2x400g-osfp-infiniband-ndr-breakout-active-copper-cable.jpg","test_url":"\/test\/www.fibermall.com\/sale-460401-nvidia-mca7j60-n004.htm","min_price":"800.00","max_price":"800.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MCA7J60-N004 Compatible 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout ACC (OSFP to OSFP Breakout Active Copper Cable 30AWG 4m)Product Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"151982","cid":"605","pid":"460401","sku":"19178","psvid1":"253524","psvid2":"253525","psvid3":"0","psvid4":"0","left_num":"0","price":"800.00","strike_price":"0.00","innercode":"","addtime":"2023-07-28 00:11:19","uptime":"2023-07-28 01:11:19","status":"0"}],"link":"\/sale-460401-nvidia-mca7j60-n004.htm","displayed_price":{"unit_prefix":"$","value":"800.00","min":"800.00","max":"800.00","usd_min":"800.00","usd_max":"800.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"116.49","isfree":0,"total":"116.49","datemin":"3","datemax":"5","unit_price":"800.00","subtotal":800},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"133.92","isfree":0,"total":"133.92","datemin":"3","datemax":"5","unit_price":"800.00","subtotal":800},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"140.10","isfree":0,"total":"140.10","datemin":"3","datemax":"5","unit_price":"800.00","subtotal":800}]}
	460373	NVIDIA Mellanox MCX75510AAS-NEAT ConnectX-7 InfiniBand/VPI Adapter Card, NDR/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket	$ 1,650.00 / piece	Available	{"pid":"460373","picid":"1177362","name":"NVIDIA Mellanox MCX75510AAS-NEAT ConnectX-7 InfiniBand\/VPI Adapter Card, NDR\/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket","keyword":"400Gb Infiniband NIC","picurl":"https:\/\/www.fibermall.com\/photo\/p1177362-200x200-nvidia-mellanox-mcx75510aas-neat-connectx-7-infiniband-vpi-adapter-card-ndr-400g-single-port-osfp-pcie-5-0x-16-tall-bracket.jpg","test_url":"\/test\/www.fibermall.com\/sale-460373-nvidia-mellanox-mcx75510aas-neat.htm","min_price":"1650.00","max_price":"1650.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"400GbE Single-Port OSFP MCX75510AAS-NEAT NDR\/400GbE ConnectX-7 InfiniBand\/VPI Adapter CardProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"152116","cid":"605","pid":"460373","sku":"30084","psvid1":"253468","psvid2":"253469","psvid3":"0","psvid4":"0","left_num":"0","price":"1650.00","strike_price":"0.00","innercode":"","addtime":"2023-09-11 02:20:40","uptime":"2023-11-27 02:04:10","status":"0"}],"link":"\/sale-460373-nvidia-mellanox-mcx75510aas-neat.htm","displayed_price":{"unit_prefix":"$","value":"1,650.00","min":"1,650.00","max":"1,650.00","usd_min":"1650.00","usd_max":"1650.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"3","datemax":"5","unit_price":"1,650.00","subtotal":1650},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"3","datemax":"5","unit_price":"1,650.00","subtotal":1650},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"3","datemax":"5","unit_price":"1,650.00","subtotal":1650}]}
	460593	NVIDIA Mellanox MCX75310AAS-NEAT ConnectX-7 InfiniBand/VPI Adapter Card, NDR/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket	$ 2,200.00 / piece	Available	{"pid":"460593","picid":"1177362","name":"NVIDIA Mellanox MCX75310AAS-NEAT ConnectX-7 InfiniBand\/VPI Adapter Card, NDR\/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket","keyword":"400Gb Infiniband NIC","picurl":"https:\/\/www.fibermall.com\/photo\/p1177362-200x200-nvidia-mellanox-mcx75310aas-neat-connectx-7-infiniband-vpi-adapter-card-ndr-400g-single-port-osfp-pcie-5-0x-16-tall-bracket.jpg","test_url":"\/test\/www.fibermall.com\/sale-460593-nvidia-mellanox-mcx75310aas-neat.htm","min_price":"2200.00","max_price":"2200.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"400GbE Single-Port OSFP MCX75310AAS-NEAT NDR\/400GbE ConnectX-7 InfiniBand\/VPI Adapter CardProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"152183","cid":"605","pid":"460593","sku":"30086","psvid1":"253895","psvid2":"253896","psvid3":"0","psvid4":"0","left_num":"0","price":"2200.00","strike_price":"0.00","innercode":"","addtime":"2023-11-23 01:51:33","uptime":"2023-11-23 01:51:33","status":"0"}],"link":"\/sale-460593-nvidia-mellanox-mcx75310aas-neat.htm","displayed_price":{"unit_prefix":"$","value":"2,200.00","min":"2,200.00","max":"2,200.00","usd_min":"2200.00","usd_max":"2200.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"3","datemax":"5","unit_price":"2,200.00","subtotal":2200},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"3","datemax":"5","unit_price":"2,200.00","subtotal":2200},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"3","datemax":"5","unit_price":"2,200.00","subtotal":2200}]}

NVIDIA MMA4Z00-NS400 Compatible 400G OSFP SR4 Flat Top PAM4 850nm 30m on OM3/50m on OM4 MTP/MPO-12 Multimode FEC Optical Transceiver Module

$ 650.00 / piece

199 piece

{"pid":"460317","picid":"1177676","name":"NVIDIA MMA4Z00-NS400 Compatible 400G OSFP SR4 Flat Top PAM4 850nm 30m on OM3\/50m on OM4 MTP\/MPO-12 Multimode FEC Optical Transceiver Module","keyword":"400G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1177676-200x200-nvidia-mma4z00-ns400-compatible-400g-osfp-sr4-flat-top-pam4-850nm-30m-on-om3-50m-on-om4-mtp-mpo-12-multimode-fec-optical-transceiv.jpg","test_url":"\/test\/www.fibermall.com\/sale-460317-nvidia-mma4z00-ns400.htm","min_price":"650.00","max_price":"650.00","leftnum":"199","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMA4Z00-NS400 Compatible 400G OSFP SR4 Flat Top PAM4 Optical Transceiver Module (850nm MTP\/MPO12 OM3\/OM4 50m with FEC DDM)This product is a 400Gb\/s Octal Small Form-factor Pluggable (OSFP)","skulist":[{"pskuid":"151897","cid":"605","pid":"460317","sku":"19076","psvid1":"253356","psvid2":"253357","psvid3":"0","psvid4":"0","left_num":"199","price":"650.00","strike_price":"0.00","innercode":"","addtime":"2023-06-24 22:10:21","uptime":"2024-09-20 01:28:43","status":"0"}],"link":"\/sale-460317-nvidia-mma4z00-ns400.htm","displayed_price":{"unit_prefix":"$","value":"650.00","min":"650.00","max":"650.00","usd_min":"650.00","usd_max":"650.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"650.00","subtotal":650},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"650.00","subtotal":650},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"650.00","subtotal":650}]}
NVIDIA MMS4X00-NS400 Compatible 400G OSFP DR4 Flat Top PAM4 1310nm MTP/MPO-12 500m SMF FEC Optical Transceiver Module

$ 800.00 / piece

Available

{"pid":"460322","picid":"1177686","name":"NVIDIA MMS4X00-NS400 Compatible 400G OSFP DR4 Flat Top PAM4 1310nm MTP\/MPO-12 500m SMF FEC Optical Transceiver Module","keyword":"400G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1177686-200x200-nvidia-mms4x00-ns400-compatible-400g-osfp-dr4-flat-top-pam4-1310nm-mtp-mpo-12-500m-smf-fec-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-460322-nvidia-mms4x00-ns400.htm","min_price":"800.00","max_price":"800.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMS4X00-NS400 Compatible 400G DR4 OSFP Flat Top PAM4 Optical Transceiver Module (1310nm MTP\/MPO-12 500m SMF with FEC DDM)The 400G OSFP DR4 Flat Top transceiver module is designed for use in 400","skulist":[{"pskuid":"151902","cid":"605","pid":"460322","sku":"19081","psvid1":"253366","psvid2":"253367","psvid3":"0","psvid4":"0","left_num":"0","price":"800.00","strike_price":"0.00","innercode":"","addtime":"2023-06-27 22:23:39","uptime":"2024-09-20 01:28:37","status":"0"}],"link":"\/sale-460322-nvidia-mms4x00-ns400.htm","displayed_price":{"unit_prefix":"$","value":"800.00","min":"800.00","max":"800.00","usd_min":"800.00","usd_max":"800.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"800.00","subtotal":800},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"800.00","subtotal":800},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"800.00","subtotal":800}]}
NVIDIA MMS4X00-NM-FLT Compatible 800G Twin-port OSFP 2x400G Flat Top PAM4 1310nm 500m DOM Dual MTP/MPO-12 SMF Optical Transceiver Module

$ 1,200.00 / piece

Available

{"pid":"460378","picid":"1178053","name":"NVIDIA MMS4X00-NM-FLT Compatible 800G Twin-port OSFP 2x400G Flat Top PAM4 1310nm 500m DOM Dual MTP\/MPO-12 SMF Optical Transceiver Module","keyword":"800G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1178053-200x200-nvidia-mms4x00-nm-flt-compatible-800g-twin-port-osfp-2x400g-flat-top-pam4-1310nm-500m-dom-dual-mtp-mpo-12-smf-optical-transceiver-.jpg","test_url":"\/test\/www.fibermall.com\/sale-460378-nvidia-mms4x00-nm-flt.htm","min_price":"1200.00","max_price":"1200.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMS4X00-NM-FLT Compatible 800Gb\/s Twin-port OSFP 2x400G Optical Transceiver Module (SMF, 1310nm, 500m, Dual MTP\/MPO-12, Flat Top, DOM)The OSFP transceiver module i","skulist":[{"pskuid":"151959","cid":"605","pid":"460378","sku":"19212","psvid1":"253478","psvid2":"253479","psvid3":"0","psvid4":"0","left_num":"0","price":"1200.00","strike_price":"0.00","innercode":"","addtime":"2023-07-25 01:36:06","uptime":"2024-09-20 00:05:32","status":"0"}],"link":"\/sale-460378-nvidia-mms4x00-nm-flt.htm","displayed_price":{"unit_prefix":"$","value":"1,200.00","min":"1,200.00","max":"1,200.00","usd_min":"1200.00","usd_max":"1200.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"1,200.00","subtotal":1200},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"1,200.00","subtotal":1200},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"1,200.00","subtotal":1200}]}
NVIDIA MMA4Z00-NS-FLT Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module

$ 850.00 / piece

50 piece

{"pid":"460376","picid":"1177998","name":"NVIDIA MMA4Z00-NS-FLT Compatible 800Gb\/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Optical Transceiver Module","keyword":"800G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1177998-200x200-nvidia-mma4z00-ns-flt-compatible-800gb-s-twin-port-osfp-2x400g-sr8-pam4-850nm-100m-dom-dual-mpo-12-mmf-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-460376-nvidia-mma4z00-ns-flt.htm","min_price":"850.00","max_price":"850.00","leftnum":"50","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMA4Z00-NS-FLT Compatible OSFP 2x400G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, Flat Top, DOM)OSFP 800G transceiver modules are designed for 800 Gigabit Ethernet ","skulist":[{"pskuid":"151957","cid":"605","pid":"460376","sku":"19210","psvid1":"253474","psvid2":"253475","psvid3":"0","psvid4":"0","left_num":"50","price":"850.00","strike_price":"0.00","innercode":"","addtime":"2023-07-25 01:27:26","uptime":"2024-07-17 02:35:22","status":"0"}],"link":"\/sale-460376-nvidia-mma4z00-ns-flt.htm","displayed_price":{"unit_prefix":"$","value":"850.00","min":"850.00","max":"850.00","usd_min":"850.00","usd_max":"850.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"850.00","subtotal":850},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"850.00","subtotal":850},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"850.00","subtotal":850}]}
NVIDIA MMS4X00-NM Compatible 800Gb/s Twin-port OSFP 2x400G PAM4 1310nm 500m DOM Dual MTP/MPO-12 SMF Optical Transceiver Module

$ 1,100.00 / piece

Available

{"pid":"460320","picid":"1176899","name":"NVIDIA MMS4X00-NM Compatible 800Gb\/s Twin-port OSFP 2x400G PAM4 1310nm 500m DOM Dual MTP\/MPO-12 SMF Optical Transceiver Module","keyword":"800G OSFP","picurl":"https:\/\/www.fibermall.com\/photo\/p1176899-200x200-nvidia-mms4x00-nm-compatible-800gb-s-twin-port-osfp-2x400g-pam4-1310nm-500m-dom-dual-mtp-mpo-12-smf-optical-transceiver-module.jpg","test_url":"\/test\/www.fibermall.com\/sale-460320-nvidia-mms4x00-nm-2x400g-osfp-dr8.htm","min_price":"1100.00","max_price":"1100.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MMS4X00-NM Compatible 800Gb\/s Twin-port OSFP 2x400G Optical Transceiver Module (SMF, 1310nm, 500m, Dual MTP\/MPO-12, DOM)NVIDIA MMS4X00-NM Compatible 800G-DR8 OSFP Transceiver Mod","skulist":[{"pskuid":"151900","cid":"605","pid":"460320","sku":"19079","psvid1":"253362","psvid2":"253363","psvid3":"0","psvid4":"0","left_num":"0","price":"1100.00","strike_price":"0.00","innercode":"","addtime":"2023-06-27 18:52:18","uptime":"2024-09-20 00:04:53","status":"0"}],"link":"\/sale-460320-nvidia-mms4x00-nm-2x400g-osfp-dr8.htm","displayed_price":{"unit_prefix":"$","value":"1,100.00","min":"1,100.00","max":"1,100.00","usd_min":"1100.00","usd_max":"1100.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"1","datemax":"5","unit_price":"1,100.00","subtotal":1100},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"1","datemax":"5","unit_price":"1,100.00","subtotal":1100},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"1","datemax":"5","unit_price":"1,100.00","subtotal":1100}]}
NVIDIA MCP4Y10-N001-FLT Compatible 1m (3ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC,Flat top on one end and Finned top on other

$ 125.00 / piece

Available

{"pid":"460400","picid":"1178940","name":"NVIDIA MCP4Y10-N001-FLT Compatible 1m (3ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC,Flat top on one end and Finned top on other","keyword":"800G DAC Cable#800G OSFP DAC","picurl":"https:\/\/www.fibermall.com\/photo\/p1178940-200x200-nvidia-mcp4y10-n001-flt-compatible-1m-3ft-800g-twin-port-2x400g-osfp-to-2x400g-osfp-infiniband-ndr-passive-dac-flat-top-on-one-end.jpg","test_url":"\/test\/www.fibermall.com\/sale-460400-nvidia-mcp4y10-n001-flt.htm","min_price":"125.00","max_price":"125.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MCP4Y10-N001-FLT Compatible 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Passive DAC (OSFP to OSFP DAC Cable, Passive 28AWG, Flat Top and Finned Top 1m)Product Details#CUSTOM#ATTRIB","skulist":[{"pskuid":"151981","cid":"605","pid":"460400","sku":"19177","psvid1":"253522","psvid2":"253523","psvid3":"0","psvid4":"0","left_num":"0","price":"125.00","strike_price":"0.00","innercode":"","addtime":"2023-07-28 00:09:22","uptime":"2024-09-20 00:24:59","status":"0"}],"link":"\/sale-460400-nvidia-mcp4y10-n001-flt.htm","displayed_price":{"unit_prefix":"$","value":"125.00","min":"125.00","max":"125.00","usd_min":"125.00","usd_max":"125.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"39.31","isfree":0,"total":"39.31","datemin":"3","datemax":"5","unit_price":"125.00","subtotal":125},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"47.32","isfree":0,"total":"47.32","datemin":"3","datemax":"5","unit_price":"125.00","subtotal":125},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"48.19","isfree":0,"total":"48.19","datemin":"3","datemax":"5","unit_price":"125.00","subtotal":125}]}
NVIDIA MCA4J80-N003-FTF Compatible 3m (10ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Active Copper Cable, Flat top on one end and Finned top on other

$ 600.00 / piece

Available

{"pid":"460394","picid":"1178232","name":"NVIDIA MCA4J80-N003-FTF Compatible 3m (10ft) 800G Twin-port 2x400G OSFP to 2x400G OSFP InfiniBand NDR Active Copper Cable, Flat top on one end and Finned top on other","keyword":"800G DAC Cable#800G OSFP ACC","picurl":"https:\/\/www.fibermall.com\/photo\/p1178232-200x200-nvidia-mca4j80-n003-ftf-compatible-3m-10ft-800g-twin-port-2x400g-osfp-to-2x400g-osfp-infiniband-ndr-active-copper-cable-flat-top-o.jpg","test_url":"\/test\/www.fibermall.com\/sale-460394-nvidia-mca4j80-n003-ftf.htm","min_price":"600.00","max_price":"600.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MCA4J80-N003-FTF Compatible 800G OSFP InfiniBand NDR ACC (OSFP to OSFP Active Copper Cable, Flat Top, and Finned Top 28\/26AWG 3m)Product Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"151975","cid":"605","pid":"460394","sku":"19171","psvid1":"253510","psvid2":"253511","psvid3":"0","psvid4":"0","left_num":"0","price":"600.00","strike_price":"0.00","innercode":"","addtime":"2023-07-27 23:57:42","uptime":"2023-07-28 00:57:42","status":"0"}],"link":"\/sale-460394-nvidia-mca4j80-n003-ftf.htm","displayed_price":{"unit_prefix":"$","value":"600.00","min":"600.00","max":"600.00","usd_min":"600.00","usd_max":"600.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"58.61","isfree":0,"total":"58.61","datemin":"3","datemax":"5","unit_price":"600.00","subtotal":600},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"69.62","isfree":0,"total":"69.62","datemin":"3","datemax":"5","unit_price":"600.00","subtotal":600},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"70.52","isfree":0,"total":"70.52","datemin":"3","datemax":"5","unit_price":"600.00","subtotal":600}]}
NVIDIA MCA7J60-N005 Compatible 5m (16ft) 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Active Copper Cable

$ 900.00 / piece

Available

{"pid":"460402","picid":"1178328","name":"NVIDIA MCA7J60-N005 Compatible 5m (16ft) 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Active Copper Cable","keyword":"800G OSFP Breakout ACC","picurl":"https:\/\/www.fibermall.com\/photo\/p1178328-200x200-nvidia-mca7j60-n005-compatible-5m-16ft-800g-twin-port-osfp-to-2x400g-osfp-infiniband-ndr-breakout-active-copper-cable.jpg","test_url":"\/test\/www.fibermall.com\/sale-460402-nvidia-mca7j60-n005.htm","min_price":"900.00","max_price":"900.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MCA7J60-N005 Compatible 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout ACC (OSFP to OSFP Breakout Active Copper Cable 26AWG 5m)Product Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"151983","cid":"605","pid":"460402","sku":"19179","psvid1":"253526","psvid2":"253527","psvid3":"0","psvid4":"0","left_num":"0","price":"900.00","strike_price":"0.00","innercode":"","addtime":"2023-07-28 00:12:44","uptime":"2023-07-28 01:12:44","status":"0"}],"link":"\/sale-460402-nvidia-mca7j60-n005.htm","displayed_price":{"unit_prefix":"$","value":"900.00","min":"900.00","max":"900.00","usd_min":"900.00","usd_max":"900.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"174.37","isfree":0,"total":"174.37","datemin":"3","datemax":"5","unit_price":"900.00","subtotal":900},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"198.21","isfree":0,"total":"198.21","datemin":"3","datemax":"5","unit_price":"900.00","subtotal":900},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"209.68","isfree":0,"total":"209.68","datemin":"3","datemax":"5","unit_price":"900.00","subtotal":900}]}
NVIDIA MCA7J60-N004 Compatible 4m (13ft) 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Active Copper Cable

$ 800.00 / piece

Available

{"pid":"460401","picid":"1178323","name":"NVIDIA MCA7J60-N004 Compatible 4m (13ft) 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout Active Copper Cable","keyword":"800G OSFP Breakout ACC","picurl":"https:\/\/www.fibermall.com\/photo\/p1178323-200x200-nvidia-mca7j60-n004-compatible-4m-13ft-800g-twin-port-osfp-to-2x400g-osfp-infiniband-ndr-breakout-active-copper-cable.jpg","test_url":"\/test\/www.fibermall.com\/sale-460401-nvidia-mca7j60-n004.htm","min_price":"800.00","max_price":"800.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"NVIDIA MCA7J60-N004 Compatible 800G Twin-port OSFP to 2x400G OSFP InfiniBand NDR Breakout ACC (OSFP to OSFP Breakout Active Copper Cable 30AWG 4m)Product Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"151982","cid":"605","pid":"460401","sku":"19178","psvid1":"253524","psvid2":"253525","psvid3":"0","psvid4":"0","left_num":"0","price":"800.00","strike_price":"0.00","innercode":"","addtime":"2023-07-28 00:11:19","uptime":"2023-07-28 01:11:19","status":"0"}],"link":"\/sale-460401-nvidia-mca7j60-n004.htm","displayed_price":{"unit_prefix":"$","value":"800.00","min":"800.00","max":"800.00","usd_min":"800.00","usd_max":"800.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"116.49","isfree":0,"total":"116.49","datemin":"3","datemax":"5","unit_price":"800.00","subtotal":800},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"133.92","isfree":0,"total":"133.92","datemin":"3","datemax":"5","unit_price":"800.00","subtotal":800},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"140.10","isfree":0,"total":"140.10","datemin":"3","datemax":"5","unit_price":"800.00","subtotal":800}]}
NVIDIA Mellanox MCX75510AAS-NEAT ConnectX-7 InfiniBand/VPI Adapter Card, NDR/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket

$ 1,650.00 / piece

Available

{"pid":"460373","picid":"1177362","name":"NVIDIA Mellanox MCX75510AAS-NEAT ConnectX-7 InfiniBand\/VPI Adapter Card, NDR\/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket","keyword":"400Gb Infiniband NIC","picurl":"https:\/\/www.fibermall.com\/photo\/p1177362-200x200-nvidia-mellanox-mcx75510aas-neat-connectx-7-infiniband-vpi-adapter-card-ndr-400g-single-port-osfp-pcie-5-0x-16-tall-bracket.jpg","test_url":"\/test\/www.fibermall.com\/sale-460373-nvidia-mellanox-mcx75510aas-neat.htm","min_price":"1650.00","max_price":"1650.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"400GbE Single-Port OSFP MCX75510AAS-NEAT NDR\/400GbE ConnectX-7 InfiniBand\/VPI Adapter CardProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"152116","cid":"605","pid":"460373","sku":"30084","psvid1":"253468","psvid2":"253469","psvid3":"0","psvid4":"0","left_num":"0","price":"1650.00","strike_price":"0.00","innercode":"","addtime":"2023-09-11 02:20:40","uptime":"2023-11-27 02:04:10","status":"0"}],"link":"\/sale-460373-nvidia-mellanox-mcx75510aas-neat.htm","displayed_price":{"unit_prefix":"$","value":"1,650.00","min":"1,650.00","max":"1,650.00","usd_min":"1650.00","usd_max":"1650.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"3","datemax":"5","unit_price":"1,650.00","subtotal":1650},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"3","datemax":"5","unit_price":"1,650.00","subtotal":1650},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"3","datemax":"5","unit_price":"1,650.00","subtotal":1650}]}
NVIDIA Mellanox MCX75310AAS-NEAT ConnectX-7 InfiniBand/VPI Adapter Card, NDR/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket

$ 2,200.00 / piece

Available

{"pid":"460593","picid":"1177362","name":"NVIDIA Mellanox MCX75310AAS-NEAT ConnectX-7 InfiniBand\/VPI Adapter Card, NDR\/400G, Single-port OSFP, PCIe 5.0x 16, Tall Bracket","keyword":"400Gb Infiniband NIC","picurl":"https:\/\/www.fibermall.com\/photo\/p1177362-200x200-nvidia-mellanox-mcx75310aas-neat-connectx-7-infiniband-vpi-adapter-card-ndr-400g-single-port-osfp-pcie-5-0x-16-tall-bracket.jpg","test_url":"\/test\/www.fibermall.com\/sale-460593-nvidia-mellanox-mcx75310aas-neat.htm","min_price":"2200.00","max_price":"2200.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"400GbE Single-Port OSFP MCX75310AAS-NEAT NDR\/400GbE ConnectX-7 InfiniBand\/VPI Adapter CardProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#","skulist":[{"pskuid":"152183","cid":"605","pid":"460593","sku":"30086","psvid1":"253895","psvid2":"253896","psvid3":"0","psvid4":"0","left_num":"0","price":"2200.00","strike_price":"0.00","innercode":"","addtime":"2023-11-23 01:51:33","uptime":"2023-11-23 01:51:33","status":"0"}],"link":"\/sale-460593-nvidia-mellanox-mcx75310aas-neat.htm","displayed_price":{"unit_prefix":"$","value":"2,200.00","min":"2,200.00","max":"2,200.00","usd_min":"2200.00","usd_max":"2200.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"29.66","isfree":0,"total":"29.66","datemin":"3","datemax":"5","unit_price":"2,200.00","subtotal":2200},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"35.72","isfree":0,"total":"35.72","datemin":"3","datemax":"5","unit_price":"2,200.00","subtotal":2200},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"37.48","isfree":0,"total":"37.48","datemin":"3","datemax":"5","unit_price":"2,200.00","subtotal":2200}]}

Resources

Test Report


800G-OSFP-SR8-400G-OSFP-SR4-Compatibility-and-Interconn....pdf
