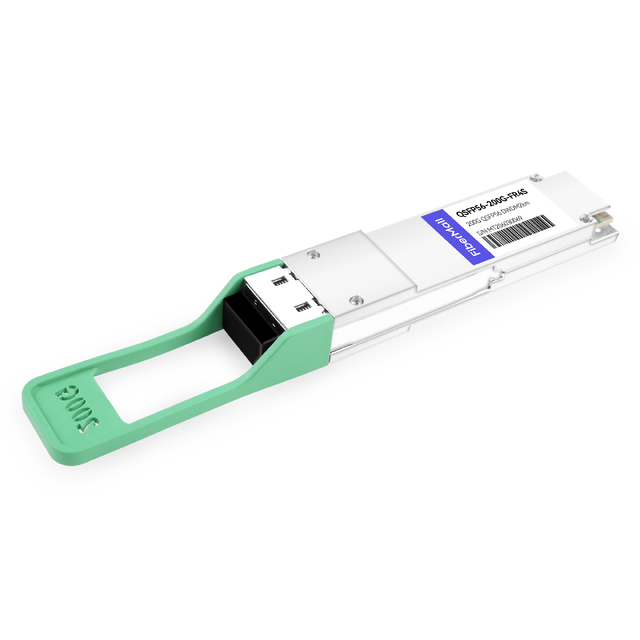

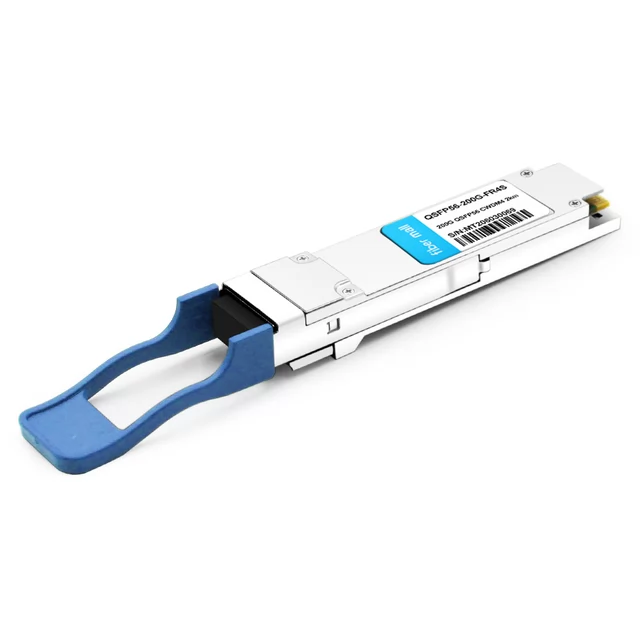

200G QSFP56 FR4 Optical Transceiver Module | FiberMall

Add to wish

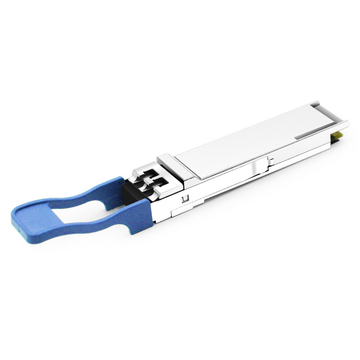

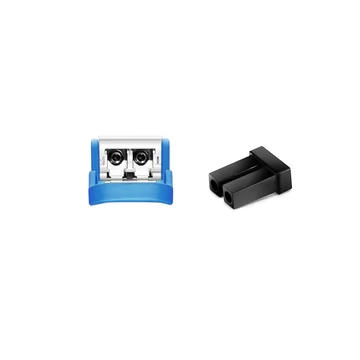

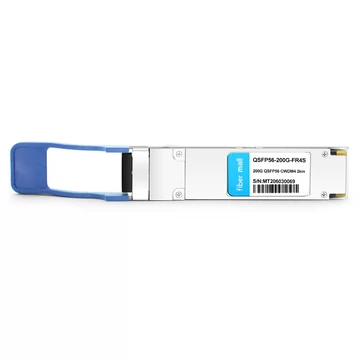

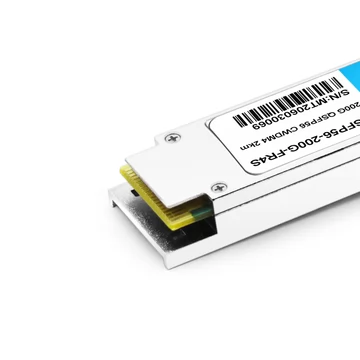

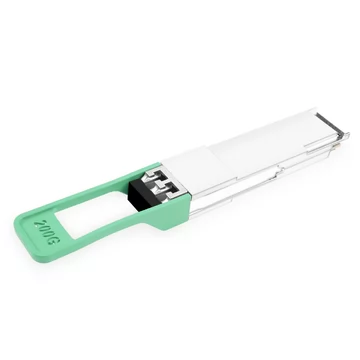

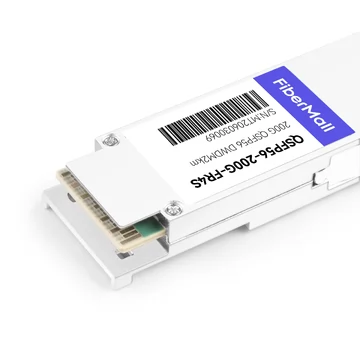

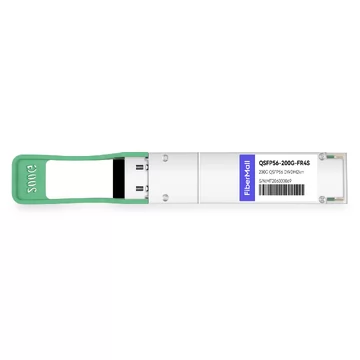

QSFP56-200G-FR4S 200G QSFP56 FR4 PAM4 CWDM4 2km LC SMF FEC Optical Transceiver Module

Name: QSFP56-200G-FR4S 200G QSFP56 FR4 PAM4 CWDM4 2km LC SMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 17979
Price: 650.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:17979

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista

Transceiver Type: QSFP56-200G-SR4M; QSFP-DD-200G-SR4; QSFP56-200G-FR4S; QSFP-DD-200G-CWDM4; QSFP-DD-200G-LR4; QSFP-DD-2x100G-LR4; QSFP-DD-200G-CWDM4-10; QSFP-DD-200G-ER4

FM PN:

QSFP56-200G-FR4S

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

200G QSFP56 FR4 PAM4 CWDM4 lanes MUX/DEMUX Design 2km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm LC SMF 2km with FEC DDM)

200G InfiniBand HDR QSFP56 FR4 Transceiver Module is designed for 200GBASE Ethernet link up to 2km over single-mode fiber (SMF) using a wavelength of 1271nm to 1331nm with duplex LC connectors. The module supports four electrical interface channels and operates in 50G PAM4 coding mode, resulting in 200G (4x50G) data rates. It is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024 and SFF-8679 standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, InfiniBand HDR, data centers, and cloud networks.

Product Details

FiberMall P/N	QSFP56-200G-FR4S	Vendor Name	FiberMall
Form Factor	QSFP56	Max Data Rate	212.5Gbps
Wavelength	1271nm, 1291nm, 1311nm, 1331nm	Max Distance	2km
Modulation Format	PAM4	Host Required	FEC
Connector	Duplex LC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	EML CWDM4	Receiver Type	PIN
TX Power	-4.2~+4.7dBm	Receiver Sensitivity	< -8.2dBm
Operation Temperature	15 to 65°C (59 to 149 °F)	Maximum Power	< 6.5W
Protocols	QSFP56 MSA, IEEE 802.3bs 200GBASE-FR4	Application	200G InfiniBand HDR,200G Ethernet Data Center Interconnect

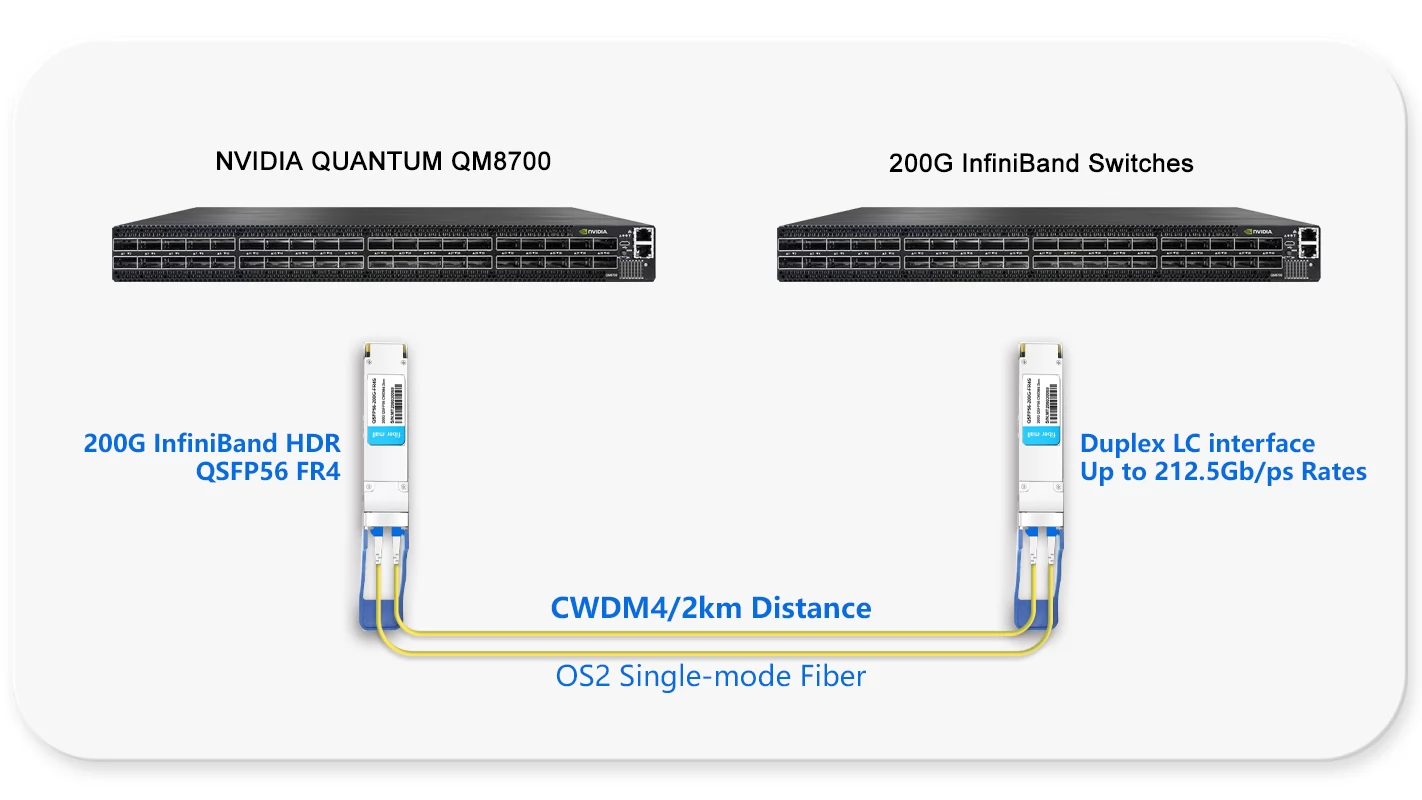

200G NDR Switch to Switch

NVIDIA QM8700 Switch Links Using Single-mode Optics

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP56-200G-SR4M	QSFP56-200G-FR4S	QSFP56-200G-FR4S
FiberMall P/N	QSFP56-200G-SR4M	QSFP56-200G-FR4S	-
Vendor Name	FiberMall	FiberMall	FiberMall
Form Factor	QSFP56	QSFP56	QSFP56
Max Data Rate	212.5Gbps	212.5Gbps	212.5Gbps
Wavelength	850nm	1271nm, 1291nm, 1311nm, 1331nm	1271nm, 1291nm, 1311nm, 1331nm
Max Distance	70m on OM3/100m on OM4	2km	2km
Modulation Format	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC
Connector	MTP/MPO-12	Duplex LC	Duplex LC
Voltage Supply	3.3V	3.3V	3.3V
Cable Type	MMF	SMF	SMF
DDM Support	Yes	Yes	Yes
Transmitter Type	850nm VCSEL	EML CWDM4	EML CWDM4
Receiver Type	PIN	PIN	PIN
TX Power	-6.5~+4.0dBm	-4.2~+4.7dBm	-4.2~+4.7dBm
Receiver Sensitivity	< -8.4dBm	< -8.2dBm	< -8.2dBm
Operation Temperature	0 to 70°C (32 to 158°F)	15 to 65°C (59 to 149 °F)	15 to 65°C (59 to 149 °F)
Maximum Power	< 5W	< 6.5W	< 6.5W
Protocols	QSFP56 MSA, IEEE 802.3bs	QSFP56 MSA, IEEE 802.3bs 200GBASE-FR4	QSFP56 MSA, IEEE 802.3bs 200GBASE-FR4
Application	200G InfiniBand HDR,200G Ethernet Data Center Interconnect	200G InfiniBand HDR,200G Ethernet Data Center Interconnect	200G InfiniBand HDR,200G Ethernet Data Center Interconnect

Product Features

v IEEE802.3bs 200GBASE-FR4 compliant

v QSFP56 MSA compliant

v 4 CWDM lanes MUX/DEMUX design

v Supports 212.5Gb/s aggregate bit rate

v Up to 2km transmission on single mode fiber (SMF) with FEC

v Operating case temperature: 10 to 60°C

v 200GAUI-4 electrical interface

v Maximum power consumption 6.5W

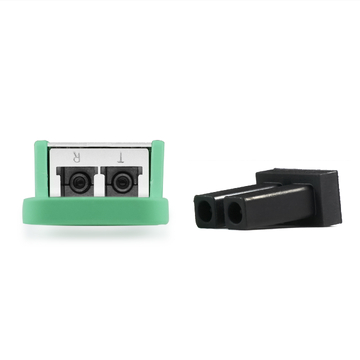

v LC duplex connector

v RoHS compliant

Applications

v Data Center Interconnect

v 200G Ethernet

v Enterprise networking

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Q: Does QSFP-200G-FR4 support a run at 4x25G NRZ application? By A***y on 2023-04-19

A: No,It use 4X 50G PAM4 signalsBy Fiber Mall on 2023-04-19
More

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

R***l

United States

Verified Purchase

5.0

2023-11-21

We deployed Mellanox MMS1W50-HM transceivers in our network and their long range performance is a game changer for us. Covering distances of up to 2 kilometers without any signal degradation is remarkable. These transceivers are perfect for our campus network because we need high-speed connectivity over a wider area.

6 Helpful vote Comments

Q***m

United States

Verified Purchase

5.0

2023-09-15

The PAM4 modulation and CWDM4 technology used in the Mellanox 200G transceivers has greatly increased the capacity of our data center. It's impressive that a single module can deliver such high bandwidth and reliability to our single-mode fiber infrastructure.

6 Helpful vote Comments

B***e

United States

Verified Purchase

5.0

2023-03-28

One of our biggest concerns when upgrading to 200G was the potential increase in power consumption. But these Mellanox transceivers have proven to be very energy efficient, which has been beneficial to our power budget and operating costs.
