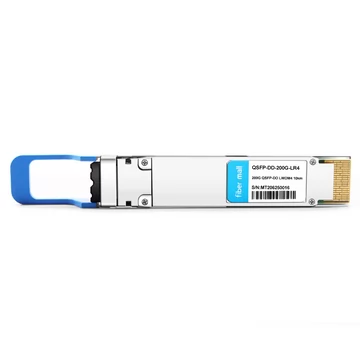

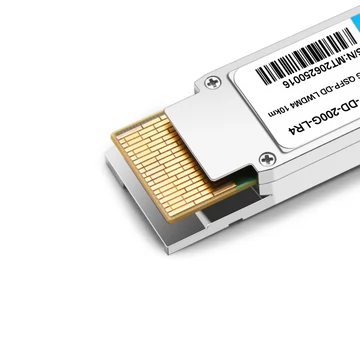

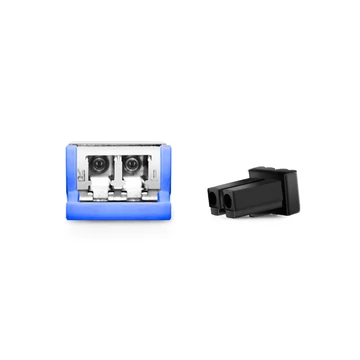

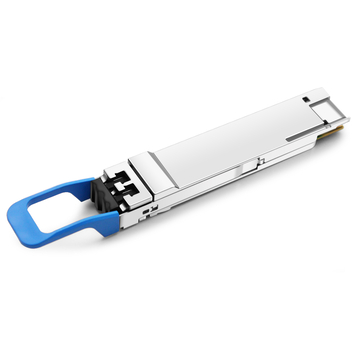

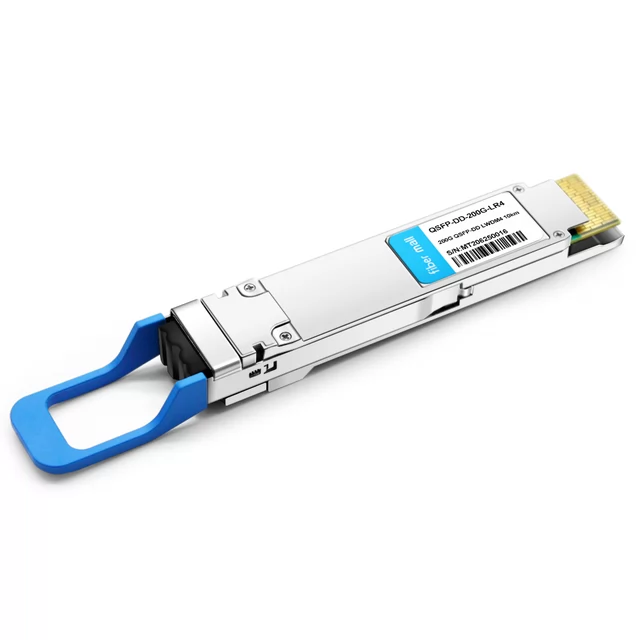

200G QSFP-DD LR4 designed for 5G mid-haul and backhaul applications. It is a portfolio of pluggable optical transceiver modules designed for data centers 200G LR4 Ethernet links up to 10 km on dual SMFs without FEC. It features a QSFP-DD form factor with an LC connector and is QSFP-DD MSA compliant.
| FiberMall P/N | QSFP-DD-200G-LR4 | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 212.5Gbps |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm | Max Distance | 10km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML LWDM4 | Receiver Type | PIN |
| TX Power | -3.4~+5.3dBm | Receiver Sensitivity | < -7.7dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 10.8W |
| Protocols | QSFP-DD MSA, IEEE 802.3bs | Application | 200G Ethernet, Data Center Interconnect |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Hot-pluggable QSFP-DD Form Factor
v Supports 212.5Gbps Data Rate
v Up to 10km Point-to-Point Transmission on Single Mode Fiber
v 3.3V power supply voltage
v Maximum power dissipation < 10.8W
v 4 x 26.5625GBd PAM4 Serial Electrical Interface (200GAUI-4)
v 8 x 26.5625Gbps NRZ Serial Electrical Interface (200GAUI-8)
