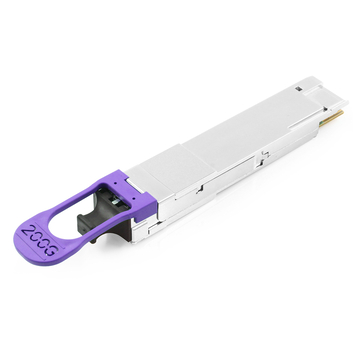

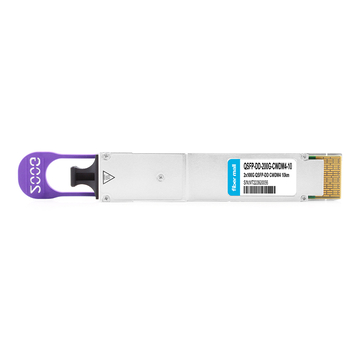

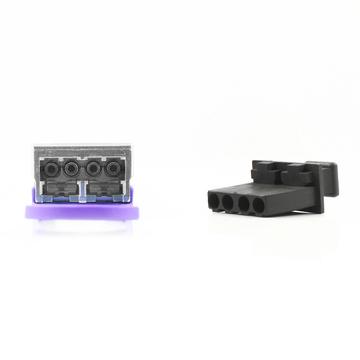

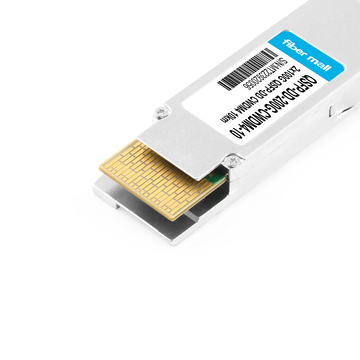

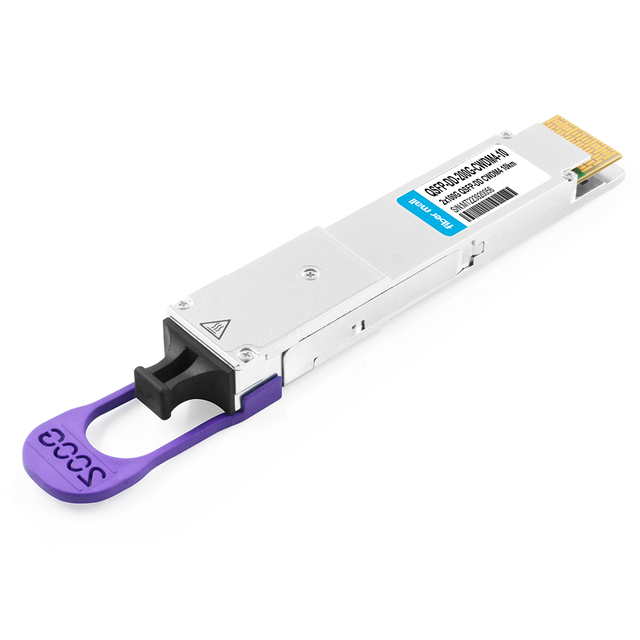

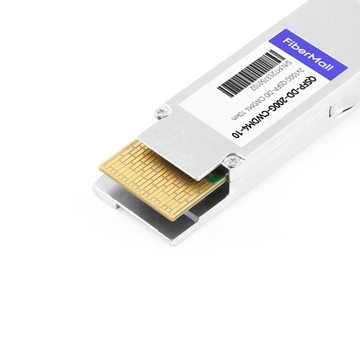

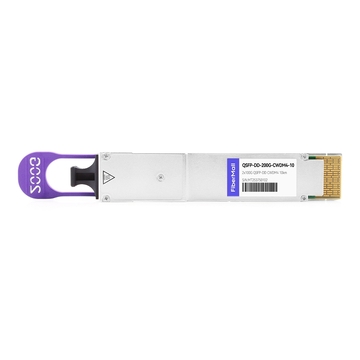

2X100G QSFP-DD CWDM4 optical transceiver modules are suitable for data centers and HPC (High-Performance Computing) links up to 10km over single-mode fiber with FEC. It also features outstanding BER and high sensitivity because of its reliable design and excellent coupling efficiency.
| FiberMall P/N | QSFP-DD-200G-CWDM4-10 | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 212.5Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 10km |
| Connector | Dual CS | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 8 x CWDM – Uncooled DFB Laser | Receiver Type | PIN |
| TX Power | Each Lane | Receiver Sensitivity | < -11.5dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 8W |
| Protocols | IEEE 802.3bm/100G CWDM4 MSA, QSFP-DD MSA Type 2 | Application | 100G Ethernet |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports 206Gbps
v Single 3.3V Power Supply
v Power dissipation < 8.0W
v QSFP-DD MSA Compliant
v 8*25Gbps DFB-based CWDM transmitter
v I2C interface with integrated Digital Diagnostic Monitoring
v RoHS compliant
v 2x100G QSFP-DD CWDM4 applications with FEC
