{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

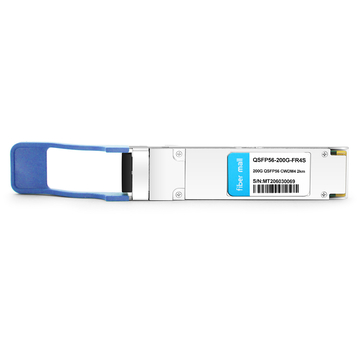

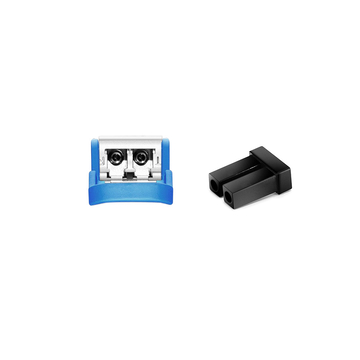

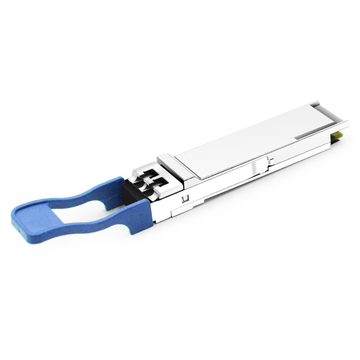

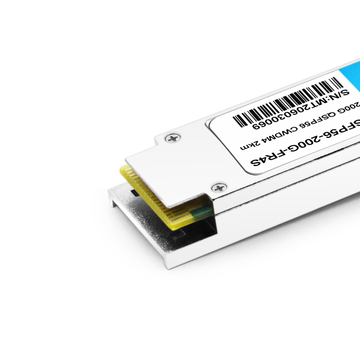

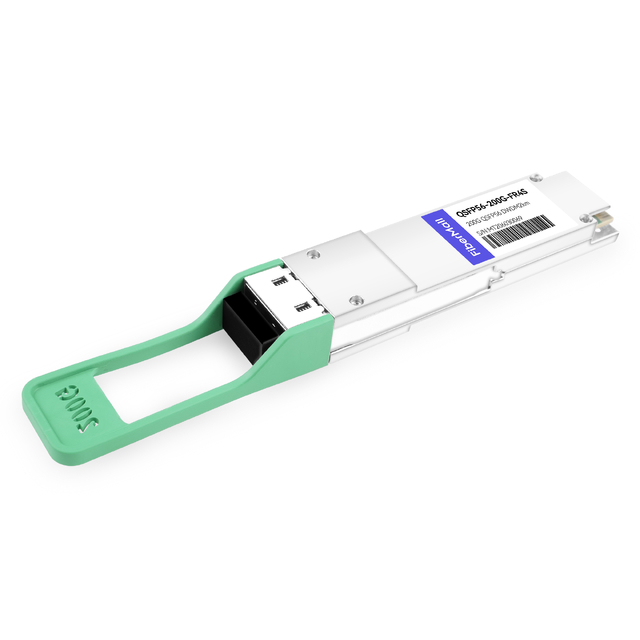

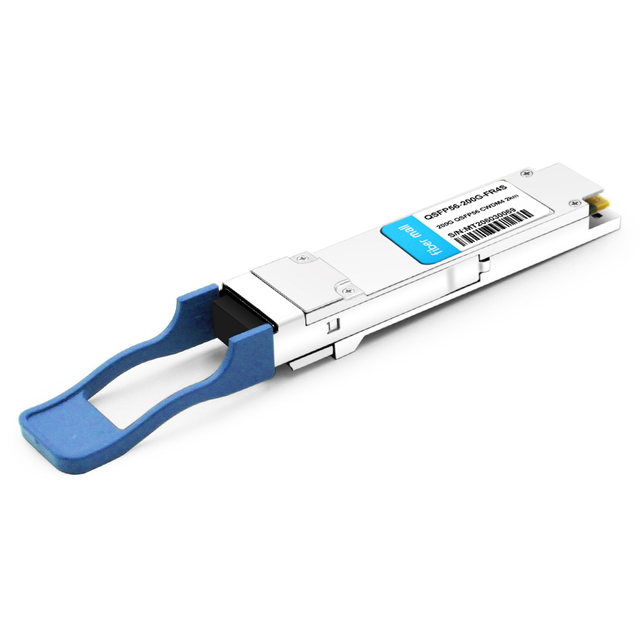

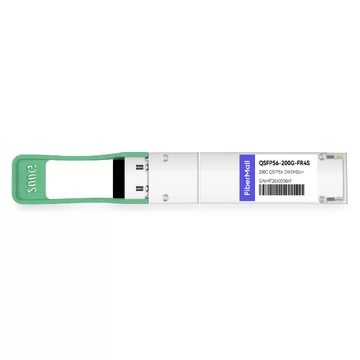

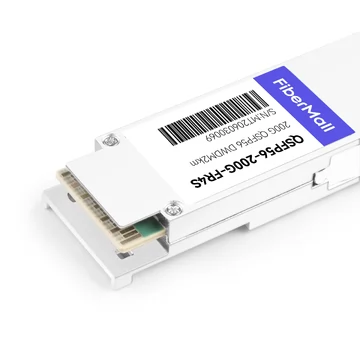

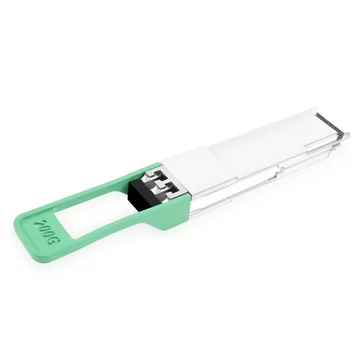

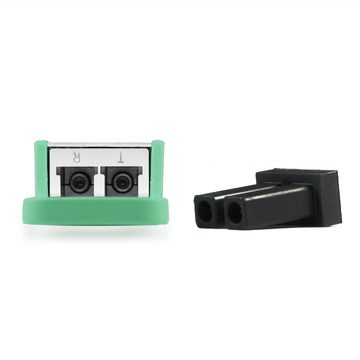

200G InfiniBand HDR QSFP56 FR4 Transceiver Module is designed for 200GBASE Ethernet link up to 2km over single-mode fiber (SMF) using a wavelength of 1271nm to 1331nm with duplex LC connectors. The module supports four electrical interface channels and operates in 50G PAM4 coding mode, resulting in 200G (4x50G) data rates. It is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024 and SFF-8679 standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, InfiniBand HDR, data centers, and cloud networks.
| Arista Compatible | QSFP-200G-FR4 | Vendor Name | FiberMall |
| Form Factor | QSFP56 | Max Data Rate | 212.5Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML CWDM4 | Receiver Type | PIN |
| TX Power | -4.2~+4.7dBm | Receiver Sensitivity | < -8.2dBm |
| Operation Temperature | 15 to 65°C (59 to 149 °F) | Maximum Power | < 6.5W |
| Protocols | QSFP56 MSA, IEEE 802.3bs 200GBASE-FR4 | Application | 200G InfiniBand HDR,200G Ethernet Data Center Interconnect |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
Arista Compatible
|
QSFP-200G-SR4
|
QSFP-200G-FR4
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP56
|
QSFP56
|
|
Max Data Rate
|
212.5Gbps
|
212.5Gbps
|
|
Wavelength
|
850nm
|
1271nm, 1291nm, 1311nm, 1331nm
|
|
Max Distance
|
70m on OM3/100m on OM4
|
2km
|
|
Modulation Format
|
PAM4
|
PAM4
|
|
Host Required
|
FEC
|
FEC
|
|
Connector
|
MTP/MPO-12
|
Duplex LC
|
|
Voltage Supply
|
3.3V
|
3.3V
|
|
Cable Type
|
MMF
|
SMF
|
|
DDM Support
|
Yes
|
Yes
|
|
Transmitter Type
|
850nm VCSEL
|
EML CWDM4
|
|
Receiver Type
|
PIN
|
PIN
|
|
TX Power
|
-6.5~+4.0dBm
|
-4.2~+4.7dBm
|
|
Receiver Sensitivity
|
< -8.4dBm
|
< -8.2dBm
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
15 to 65°C (59 to 149 °F)
|
|
Maximum Power
|
< 5W
|
< 6.5W
|
|
Protocols
|
QSFP56 MSA, IEEE 802.3bs
|
QSFP56 MSA, IEEE 802.3bs
200GBASE-FR4 |
|
Application
|
200G InfiniBand HDR,200G Ethernet
Data Center Interconnect |
200G InfiniBand HDR,200G Ethernet
Data Center Interconnect |
Product Features
v IEEE802.3bs 200GBASE-FR4 compliant
v QSFP56 MSA compliant
v 4 CWDM lanes MUX/DEMUX design
v Supports 212.5Gb/s aggregate bit rate
v Up to 2km transmission on single mode fiber (SMF) with FEC
v Operating case temperature: 10 to 60°C
v 200GAUI-4 electrical interface
v Maximum power consumption 6.5W
v LC duplex connector
v RoHS compliant
Applications
v Data Center Interconnect
v 200G Ethernet
v Enterprise networking
