The available optical SFP modules are generally divided into the following categories:
850nm in wavelength/300m transmission distance MMF (SR), 1310nm in wavelength/10km transmission distance SMF (LR), ER at 1550 nm wavelength/40 km distance, ZR at 80 km distance, EX or EZX at 120 km distance, and DWDM.
SFP supports SONET, Gigabit Ethernet, Fibre Channel, and some other communication standards. This standard extends to SFP+, which supports 10.0 Gbit/s transmission rates and includes an 8-gigabit fiber channel and 10GbE. Compared to the Xenpak, X2, or XFP versions of the transceiver, the SFP+ module version, which introduces fiber and copper core versions, leaves some of the circuitry implemented on the motherboard rather than within the module.
The 10G module has undergone development from 300Pin, XENPAK, X2, to XFP, and finally realized the transmission of 10G signals with the same size of form factor as SFP, which is SFP+. With its advantages of miniaturization and low cost, SFP meets the high-density optical module requirements of the equipment. From the introduction of the standard in 2002, it has replaced XFP to become the mainstream of the 10G market in 2010.
Advantages of SFP+ optical transceivers:
1). SFP+ has a more compact form factor than X2 and XFP packages (the same size as SFP);
2). It can be directly connected with the same type of XFP, X2, XENPAK;
3). The cost is lower than XFP, X2, XENPAK products.
The difference between SFP+ and SFP:
1). SFP and SFP+ have the same dimensions;
2). SFP protocol specification: IEEE802.3, SFF-8472;
Differences between SFP+ and XFP:
1). SFP+ and XFP are both 10G fiber optic transceivers, and can interconnect with other types of 10G modules;
2). SFP+ is smaller in size than XFP;
3). Because of its smaller size, SFP+ moves the signal modulation function, serializer/deserializer, MAC, clock and data recovery (CDR), and electronic dispersion compensation (EDC) functions from the module to the motherboard card;
4). The protocol that XFP complies with: XFP MSA protocol;
5). Protocols that SFP+ is compliant with: IEEE 802.3ae, SFF-8431, SFF-8432;
6). SFP+ is a more mainstream design.
7). SFP+ protocol specification: IEEE 802.3ae, SFF-8431, SFF-8432.
10.3Gbps SFP+ Transceiver, Single Mode, 40km Reach
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1310nm DFB laser and PIN photodiode, Up to 40km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10Gbps Optical systems
10GBASE-ER at 10.3125Gbps
10GBASE-EW at 9.953Gbps
LTE systems
Other optical links
10.3Gbps SFP+ Transceiver, Single Mode, 2km Reach
Product Features
Supports 10.3Gbps bit rates
Hot-pluggable SFP+ footprint
Un-cooled 1310nm FP laser and PIN photodetector, Up to 2km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10Gbps Optical systems
LTE systems
Other Optical links

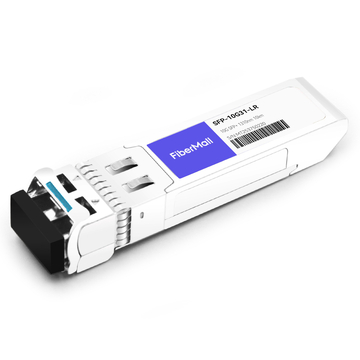

10.3Gbps SFP+ Transceiver, Single Mode, 10km Reach
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10Gbps Optical systems
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
LTE systems
Other Optical links
10.3Gbps SFP+ Transceiver, Single Mode, 20km Reach
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1310nm DFB laser and PIN photodiode, Up to 20km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10Gbps Optical systems
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
LTE systems
Other Optical links
10.3Gbps SFP+ Transceiver, Multi-Mode, 220m Reach
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1310nm FP laser and PIN photodiode, Up to 220m for MMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10Gbps Optical systems
10GBASE-LRM at 10.3125Gbps
Other Optical links
10.3Gbps SFP+ Transceiver, Single Mode, 40km Reach
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
Un-cooled 1550nm Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Applications
10Gbps Optical systems
10GBASE-ER at 10.3125Gbps
10GBASE-EW at 9.953Gbps
LTE systems
Other Optical links
10.3Gbps SFP+ Transceiver, Single Mode, 80km Reach
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
Un-cooled 1550nm Cooled EML laser and APD photodiode, Up to 80km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Applications
10Gbps Optical systems
10GBASE-ZR at 10.3125Gbps
10GBASE-ZW at 9.953Gbps
LTE systems
Other Optical links

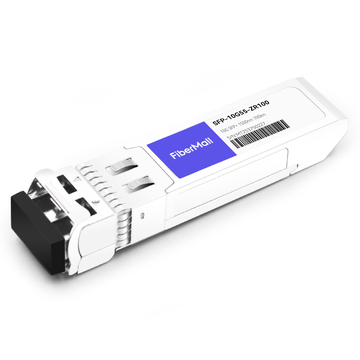

10.3Gbps SFP+ Transceiver, Single Mode, 100km Reach
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
Un-cooled 1550nm Cooled EML laser and APD photodiode, Up to 100km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Applications
10Gbps Optical systems
10GBASE-ZR at 10.3125Gbps
10GBASE-ZW at 9.953Gbps
LTE systems
Other Optical links
10.3Gbps SFP+ Transceiver, Single Mode, 120km Reach
Product Features
0 to +2400 ps/nm Dispersion Tolerance (~120km reach without dispersion compensation)
Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
1550nm cooled CML transmitter, APD photo-detector
SMF links up to 120km
2-wire interface for management specifications compliant
with SFF 8472 digital diagnostic monitoring interface
Power supply: +3.3V
Power consumption: <1.8W
Temperature range: 0~ 70°C
RoHS compliant
Applications
10GBASE-ZR/ZW Ethernet
SONET OC-192 / SDH
10G Fibre channel
10.3Gbps SFP+ Transceiver, Multi-Mode, 300m Reach
Product Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real-Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
10GBASE-SR at 10.3125Gbps
10GBASE-SW at 9.953Gbps
Other Optical links
10GBase-T Copper SFP+ Transceiver
- Up to 10Gb/s bi-directional data links
Hot-pluggable SFP+ footprint
Fully metallic enclosure for low EMI
Low power dissipation
Compact RJ-45 connector assembly
Access to physical layer IC via a 2-wire serial bus
Supports Links up to 30m using Cat 6a/7 Cable
RoHS Compliant
Operating case temperature: 0℃ to 70℃
Applications
10 Gigabit Ethernet over Cat 6a/7 cable
