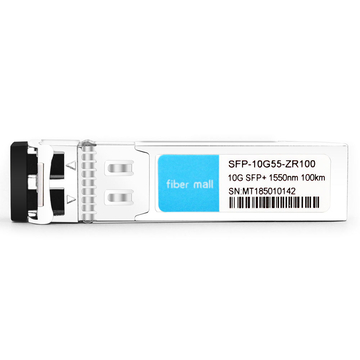

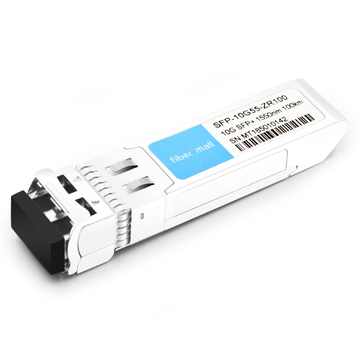

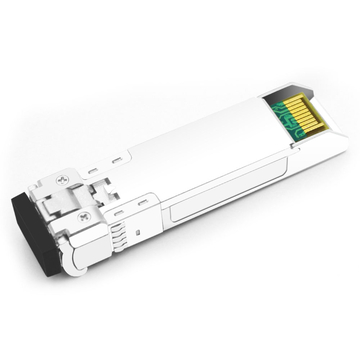

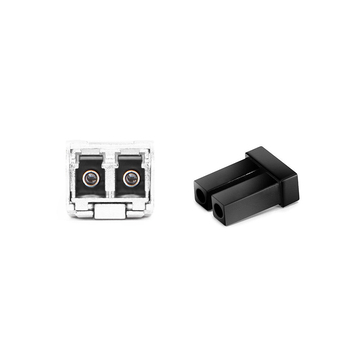

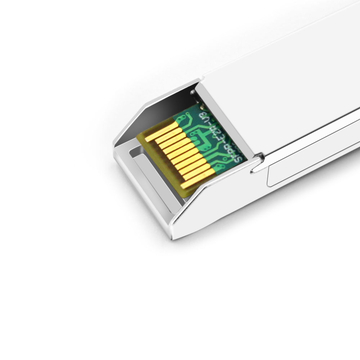

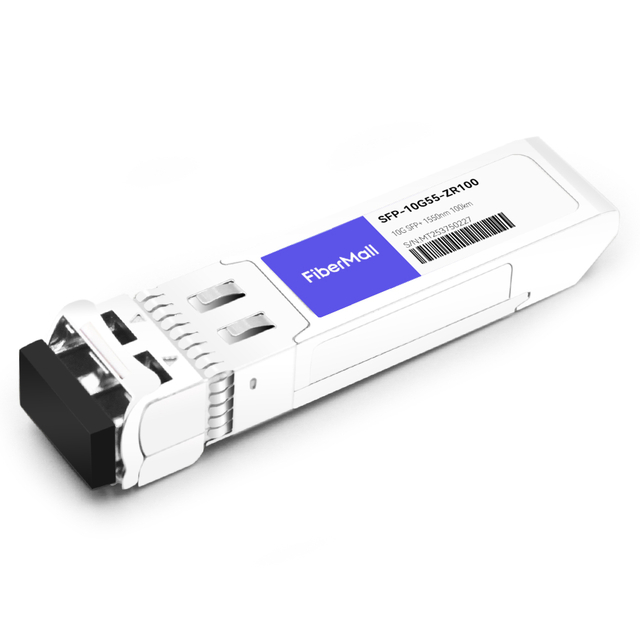

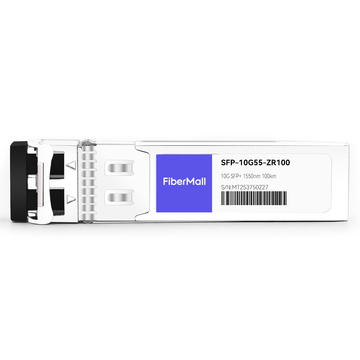

Extreme 10GB-ZR100-SFPP Compatible SFP+ transceiver supports up to 100km over OS2 SMF via an LC duplex connector. This transceiver is compliant with the RoHS Directive 2011/65/EU. The transceiver consists of three sections: a Cooled EML laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. Featuring low power consumption, and high speed, this 10G SFP+ transceiver is ideal for data centers, 10G Ethernet Fiber Channel, etc. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Extreme Compatible | 10GB-ZR100-SFPP | Vendor Name | FiberMall |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1550nm | Max Distance | 100km |
| Connector | Duplex LC | Transmitter Type | 1550nm EML |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 0~+4.0dBm | Receiver Sensitivity | < -25.0dBm |
| Protocols | 10G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports up to 10.7Gbps bit rates
v Hot-pluggable SFP+ footprint
v Hot-Pluggable
v Un-cooled 1550nm Cooled EML laser and APD photodiode, Up to 100km for SMF transmission
v Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
v Compatible with RoHS
v Single +3.3V power supply
v Real-Time Digital Diagnostic Monitoring
v Application for 10Gbps Optical systems, 10GBASE-ZR at 10.3125Gbps, 10GBASE-ZW at 9.953Gbps
