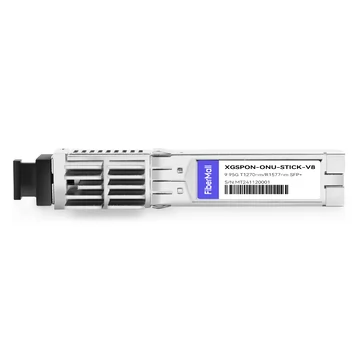

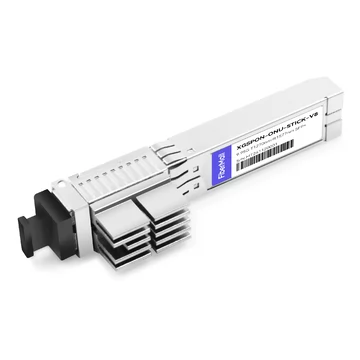

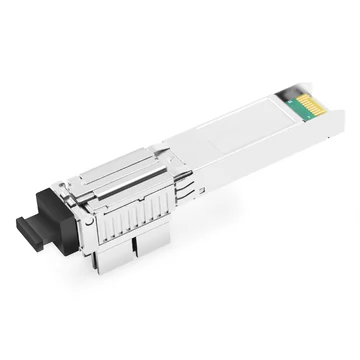

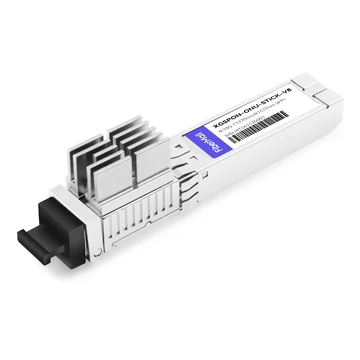

XGSPON ONU Stick SFP+ with MAC Transceiver,8311 Firmware Version (Supports Web management), Chipset: MaxLinear PRX126 (SMF, 9.953G-TX/9.953G-RX,1270 nm-TX/1577 nm-RX, 20km, SC/APC, DDM)

The XGSPON ONU stick with MAC module is designed for 10G passive optical network systems. The STICK optical module can fully meet the requirements of the carrier-grade FTTB\ FTTH\ FTTO device. It can be hot-swapped into the SFP+ slot of the Layer 2 Ethernet switch. The whole machine can be used as an ONT or even an MDU to connect the entire device to the XGSPON optical network directly. The central office OLT only needs to register the XGSPON ONU STICK optical module as if it were a typical optical CAT. The communication device can complete the access switch from the original P2P.

Product Details

FiberMall P/N	XGSPON-ONU-STICK	Vendor Name	FiberMall
Application	XGSPON ONU	ODN Class	N1/N2
Wavelength	TX 1270nm/RX 1577nm	Data Rate	TX 9.95G/RX 9.95G
TX Power	+4.0~+9.0dBm	Receiver Sensitivity	< -28.5dBm
Package	SFP+	Interface	SC/APC
Cable Type	SMF	Max Distance	20km
Operation Temperature	-40°C~85℃	Protocols	ITU-T G.9807, SFP+ MSA

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability

Rigorous Industrial Product Testing

Optical communication products belong to industrial products, which require high stability and reliability. FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

EMI Testing

Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF (Mean Time between Failures) testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing in system

PON Network Topology

Application Diagram of PON Network

The 10G XGSPON ONU Stick SFP+ is inserted into the 10G SFP+ port of the switch or router to communicate with the 10G XGSPON OLT.

	XGSPON-ONU-STICK-V8	XGSPON-ONU-C	GPON-ONU-STB+
FiberMall P/N	XGSPON-ONU-STICK	XGSPON-ONU-C	GPON-ONU-STB+
Vendor Name	FiberMall	FiberMall	FiberMall
Application	XGSPON ONU	XGSPON ONU	-
ODN Class	N1/N2	N1/N2	-
Wavelength	TX 1270nm/RX 1577nm	TX 1270nm/RX 1577nm	TX-1310nm/RX-1490nm
Data Rate	TX 9.95G/RX 9.95G	TX 9.95G/RX 9.95G	-
TX Power	+4.0~+9.0dBm	+4.0~+9.0dBm	+0.5~+5.0dBm
Receiver Sensitivity	< -28.5dBm	< -28.0dBm	< -28.0dBm
Package	SFP+	SFP+	-
Interface	SC/APC	SC	-
Cable Type	SMF	SMF	SMF
Max Distance	20km	20km	20km
Operation Temperature	-40°C~85℃	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Protocols	ITU-T G.9807, SFP+ MSA	ITU-T G.9807, SFP+ MSA	MSA and IEEE 802.3

Custom XGSPON ONU Stick SFP+

v Firmware Compatibility: Supports 8311 community firmware.

v Hardware Specs: High-performance design with 1 GB RAM for seamless operation.

v Global Deployment: Widely adopted by telecom providers in the US/Canada/UK (e.g., AT&T and Orange,and Others).

Customization Support

Allows configuration of the following parameters:

v PON serial number (ONT ID)

v Vendor ID

v Equipment ID

v Logical ONU ID

v Logical password

v MAC address

Product Features

v Single fiber bi-directional data links symmetric TX 9.953 Gb/s / RX 9.953 Gb/s with MAC function

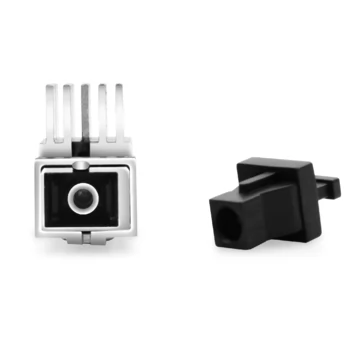

v SFP package with SC /APC receptacle

v Single 3.3 V power supply

v Hot-pluggable capability

v High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD

v Support 20km transmission distance with SMF

v CML-compatible data input/output interface

v Low power dissipation < 3W

v Low EMI and excellent ESD protection

v Digital diagnostic monitor interface

v RoHS-6 compliance

v Case temperature range: -40 °C to 85 °C

v Support of GPON/XGS-PON/NGPON2 standards

v 256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs

v Carrier Grade QoS Engine

v Advanced loopback and diagnostic capabilities

v Supports Synchronous Ethernet (SyncE)

Applications

v Residential home gateway

v Network switch/router, VDSL MDU, and G.fast DPU

v Mobile backhaul

Standard

v Complies with ITU-T G.987.2

v Complies with ITU-T G.9807.1, G.9807.2

v ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges)

v G.8275/Y.1369/IEEE 1588v2

v IEEE 802.1ag and ITU-T Y.1731 Ethernet OAM delay & loss measurement hardware support
