{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

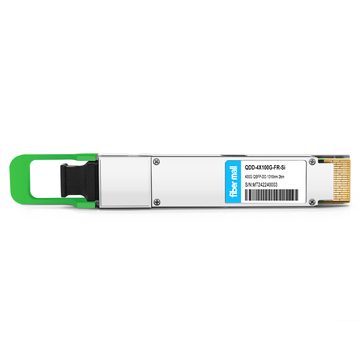

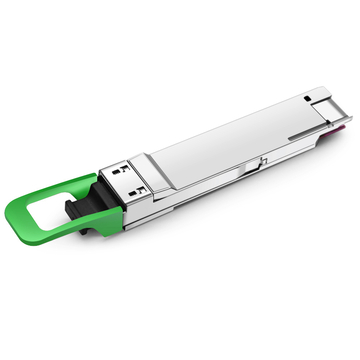

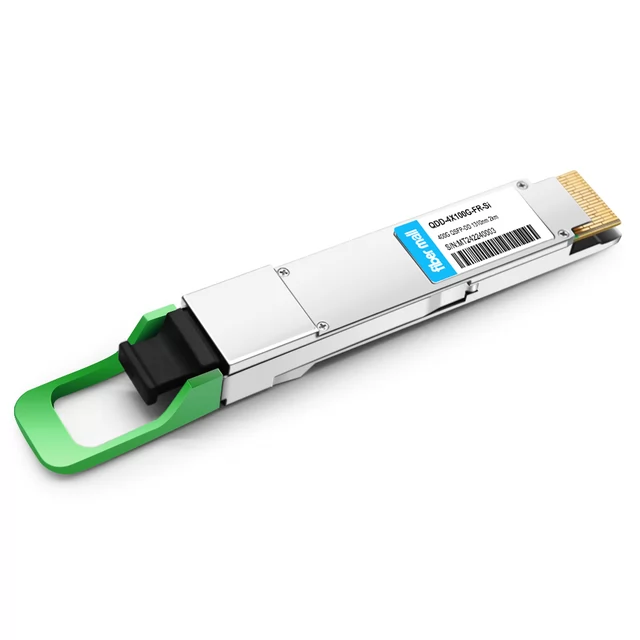

FiberMall QSFP-DD 4*100Gbps transceiver module is designed for optical communication applications in 400 Gigabit Ethernet links over 2km single mode fiber. This product has 8 independent electrical input/output channels which can convert 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) parallel optical signals. Also, it converts 4 channels of parallel optical signals of 100Gbps (PAM4) for each channel into 8 channels of 50Gbps (PAM4) electrical output data. The module incorporates 4 parallel channels on a 1310nm center wavelength, operating at 100G per channel. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with QSFP-DD MSA.
| FiberMall P/N | QDD-4X100G-FR-Si | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | Silicon photonics | Receiver Type | PIN |
| TX Power | -2.4~+4.0dBm | Receiver Sensitivity | < -4.5dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 10W |
| Protocols | QSFP-DD MSA, 100G Lambda MSA 100G-FR | Application | 400G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
FiberMall P/N
|
QDD-4X100G-FR-4Si
|
QDD-4X100G-FR-Si
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP-DD
|
QSFP-DD
|
|
Max Data Rate
|
425Gbps
|
425Gbps
|
|
Wavelength
|
1310nm
|
1310nm
|
|
Max Distance
|
2km
|
2km
|
|
Modulation Format
|
PAM4
|
PAM4
|
|
Host Required
|
FEC
|
FEC
|
|
Connector
|
MTP/MPO-12
|
MTP/MPO-12
|
|
Voltage Supply
|
3.3V
|
3.3V
|
|
Cable Type
|
SMF
|
SMF
|
|
DDM Support
|
Yes
|
Yes
|
|
Transmitter Type
|
Silicon photonics
|
Silicon photonics
|
|
Receiver Type
|
PIN
|
PIN
|
|
TX Power
|
-2.4~+4.0dBm
|
-2.4~+4.0dBm
|
|
Receiver Sensitivity
|
< -4.5dBm
|
< -4.5dBm
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Maximum Power
|
< 10W
|
< 10W
|
|
Protocols
|
QSFP-DD MSA,
100G Lambda MSA 100G-FR |
QSFP-DD MSA,
100G Lambda MSA 100G-FR |
|
Application
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
Product Features
v Supports 425Gbps
v Single 3.3V Power Supply
v Power dissipation < 10W
v Up to 2km over SMF
v RoHS compliant
v QSFP-DD MSA Compliant
v 8x53.125Gbps (PAM4) electrical interface
v MPO-12 connector
v Commercial case temperature range of 0°C to 70°C
v Silicon photonics on the transmitter
v PIN and TIA array on the receiver side
v I2C interface with integrated Digital Diagnostic Monitoring
v Safety Certification: TUV/UL/FDA*Note1
v RoHS Compliant
Applications
v 4 x 100G-FR applications
v Data center
v Infiniband interconnects
