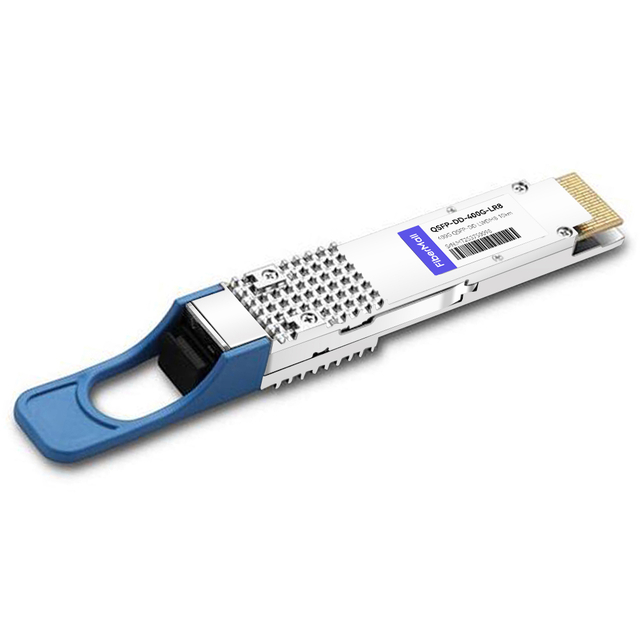

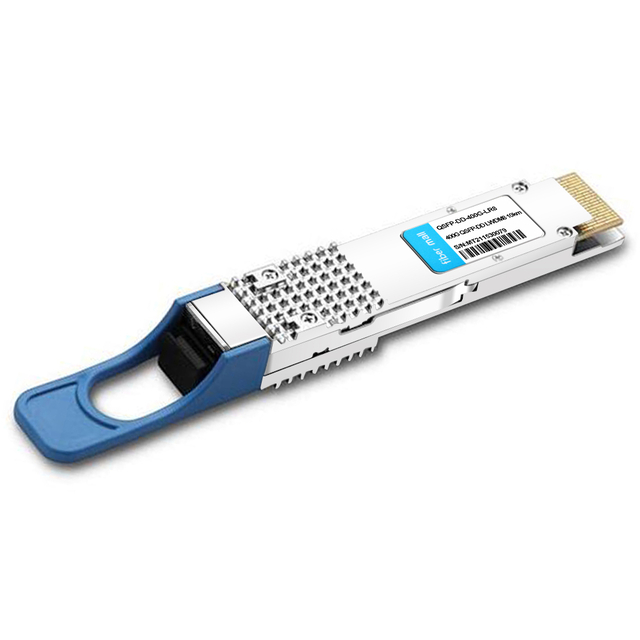

400GBASE-LR8 QSFP-DD 10km Optical Transceiver | FiberMall

Add to wish

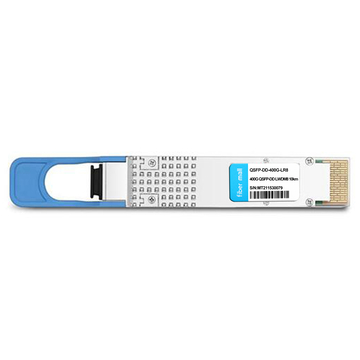

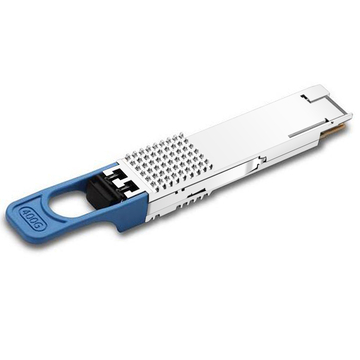

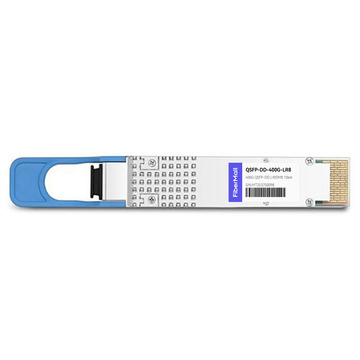

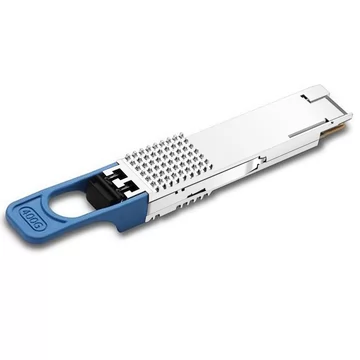

QSFP-DD-400G-LR8 400G QSFP-DD LR8 PAM4 LWDM8 10km LC SMF FEC Optical Transceiver Module

Name: QSFP-DD-400G-LR8 400G QSFP-DD LR8 PAM4 LWDM8 10km LC SMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 18101
Price: 3000.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18101

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista; H3C; Huawei; Juniper Networks

Transceiver Type: QSFP-DD-400G-SR8; QSFP-DD-400G-DR4; QSFP-DD-400G-FR4; QSFP-DD-400G-SR4; QSFP-DD-400G-LR4; QSFP-DD-400G-XDR4; QDD-4X100G-FR-Si; QDD-4X100G-FR-4Si; QSFP-DD-400G-PLR4; QSFP-DD-400G-SR4.2; QSFP-DD-400G-ER4L; QSFP-DD-400G-LR8; QSFP-DD-400G-ER8; QSFP-DD-400G-ER4

FM PN:

QSFP-DD-400G-LR8

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

400G QSFP-DD LR8 PAM4 8 LAN-WDM MUX/DEMUX design Optical Transceiver Module (LWDM8 LC SMF 10km with FEC DDM)

The 400G QSFP-DD LR8 optical transceiver module is designed to support 400G Ethernet for data center links up to 10 km on single-mode fiber with FEC. It complies with the IEEE 802.3bs 400GBASE-LR8. The module supports eight electrical interface lanes that operate in 50G PAM4 encoding mode, enabling 400G (8x50G) data rates.

Product Details

FiberMall P/N	QSFP-DD-400G-LR8	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1273.54nm, 1277.89nm, 1282.26nm 1286.66nm, 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	Max Distance	10km
Modulation Format	PAM4	Host Required	FEC

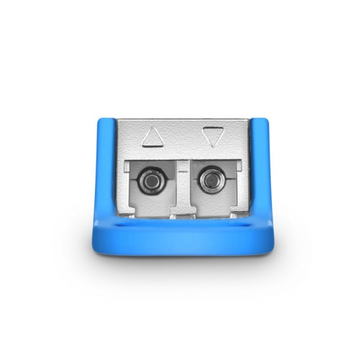

Connector	Duplex LC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	EML	Receiver Type	PIN
TX Power	-2.8~+5.3dBm	Receiver Sensitivity	< -6.6dBm (SECQ–8dBm)
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 14.5W
Protocols	QSFP-DD MSA, IEEE 802.3bs 400GBASE-LR8	Application	400G Ethernet, Telecom Networking, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v QSFP-DD MSA, RoHS 2.0 compliant

v Compliant to IEEE 802.3bs 400GBASE-LR8

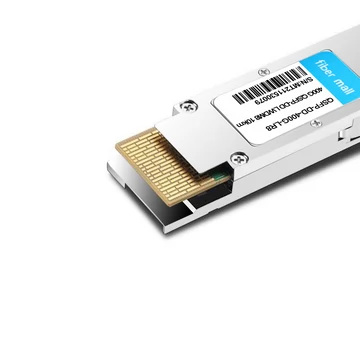

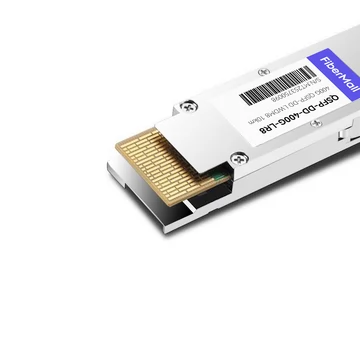

v Hot pluggable 76-pin electrical interface

v 8 LAN-WDM lanes MUX/DEMUX design

v 53.125Gbit/s PAM4 Channel Electrical Serial Interface (400GAUI-8)

v Maximum power consumption 14.5W

v Single 3.3V power supply

v Supports Data Center Interconnect, 400GBASE-LR8 Ethernet, Infiniband interconnects, Enterprise networking

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

Megan Hayes

Verified Purchase

5.0

2024-05-28

It performed well in device testing without any additional configuration needed, saving time and effort. Highly recommended!

5 Helpful vote Comments

Jacob Sullivan

Verified Purchase

5.0

2024-03-16

This is my first time buying a product from Fibermall, and I purchased a sample for testing. The product arrived quickly, and after inserting the 400G QSFP-DD SR4 module, the switch recognized it immediately， and It's been running well.

5 Helpful vote Comments

Ethan Powell

Verified Purchase

5.0

2023-10-12

Very satisfied with the quality of the product and the service.

5 Helpful vote Comments

Derek Ford

Verified Purchase

5.0

2023-07-21

Installation was very convenient, and it’s fully compatible with my Arista switch.

5 Helpful vote Comments
