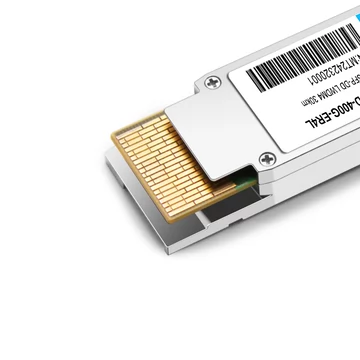

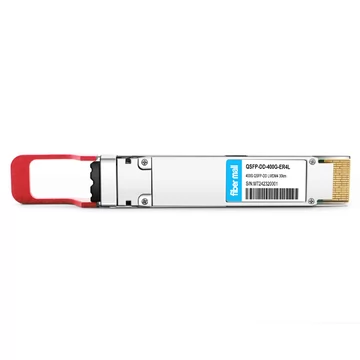

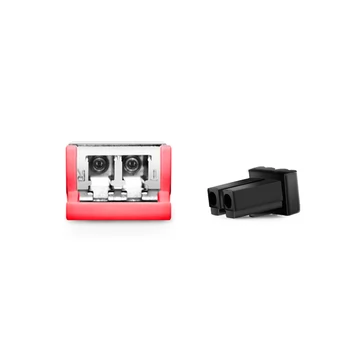

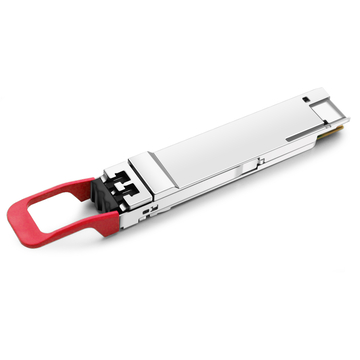

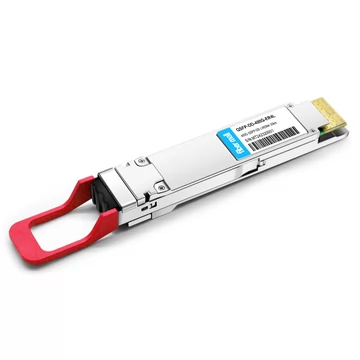

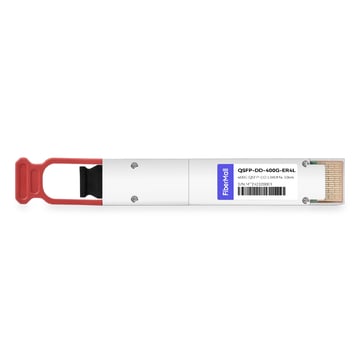

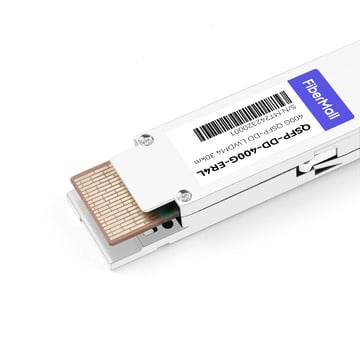

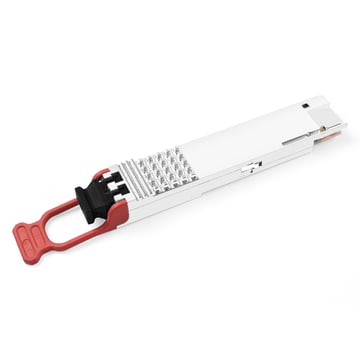

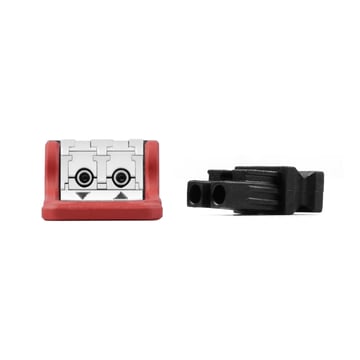

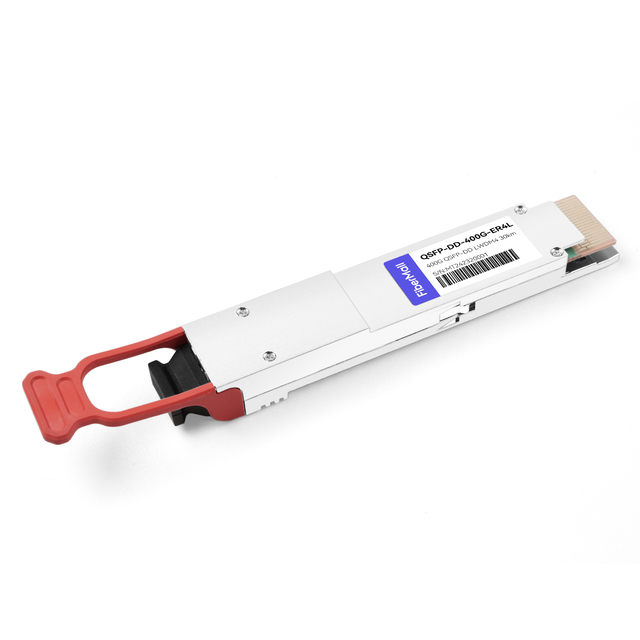

The product is a 400Gb/s quad-channel small form factor pluggable dual density (QSFP-DD) optical module designed for optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data into four LAN-WDM optical signals, multiplexed into one channel for 400Gb/s optical transmission. Conversely, on the receiver side, the module optically demultiplexes the 400Gb/s optical input into four channels of WDM optical signals and converts them into 8 channels of 50Gb/s (PAM4) electrical output data. The four LAN WDM channels have center wavelengths of 1295.56, 1300.05, 1304.58, and 1309.14 nm, which belong to the LAN WDM wavelength grid defined in IEEE802.3ba. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. The 400G KP4 FEC can support transmission distances of up to 30 kilometers. The electrical interface is IEEE 802.3bs compliant with QSFP-DD MSA in the transceiver direction, and the optical interface is IEEE 802.3bs compliant with a duplex LC connector.
| FiberMall P/N | QSFP-DD-400G-ER4L | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm | Max Distance | 30km |
| Modulation Format | PAM4 | Host Required | with FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML LWDM | Receiver Type | APD |
| TX Power | +0.4~+6.5dBm | Receiver Sensitivity | <-12.1dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 12.0W |
| Protocols | QSFP-DD MSA, IEEE 802.3bs | Application | 400G Ethernet, Data Center Interconnects, Infiniband Interconnects, Enterprise Networking |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v QSFP-DD MSA compliant
v LWDM lanes MUX/DEMUX design
v Up to 30km transmission on single mode fiber (SMF) with FEC
v Operating case temperature: 0 to 70°C
v 8x53.125Gb/s electrical interface (400GAUI-8)
v Data Rate 106.25Gbps (PAM4) per channel.
v Maximum power consumption 12W
v Duplex LC connector
v RoHS compliant
Applications
v Data Center Interconnect
v 400G Ethernet
v Infiniband interconnects
v Enterprise networking
