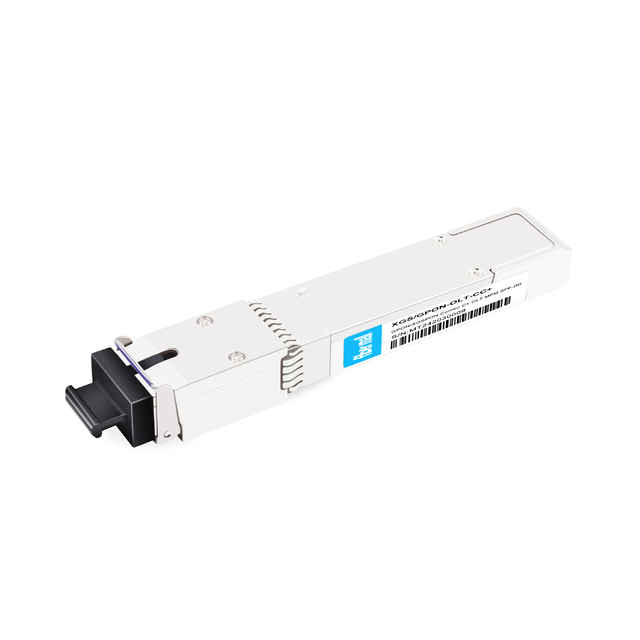

GPON XGS PON SFP-DD Combo C+ OLT Module | FiberMall

Add to wish

FiberMall XGS/GPON-OLT-CC+ XGSPON GPON Combo C+ OLT MPM SFP+ TX-9.95G/RX 9.953G, 2.488 Gbps Tx-1577nm/Rx-1270nm SC UPC DDM Optical Transceivers

Name: FiberMall XGS/GPON-OLT-CC+ XGSPON GPON Combo C+ OLT MPM SFP+ TX-9.95G/RX 9.953G, 2.488 Gbps Tx-1577nm/Rx-1270nm SC UPC DDM Optical Transceivers
Brand: fibermall
SKU: 19816
Price: 315.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19816

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Transceiver Type: XGSPON-ONU-C; XGSPON-ONU-STICK; XGS/GPON-OLT-CB+; XGSPON-OLT-SN1; XGS/GPON-OLT-CC+; XGS/GPON-OLT-IB+; XGSPON-OLT-SN2; XGS/GPON-OLT-SBC; XGS/GPON-OLT-IC+; XGS/GPON-OLT-SBI; XGS/GPON-OLT-SCC; XGSPON-OLT-SIN1; XGS/GPON-OLT-SCI; XGSPON-OLT-SIN2; XGS/GPON-OLT-SDC; XGS/GPON-OLT-SDI; XGSPON-OLT-XN1; XGSPON-OLT-XN2

FM PN:

XGS/GPON-OLT-CC+

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Product Details

FiberMall P/N	XGS/GPON-OLT-CC+	Vendor Name	FiberMall
Application	XGSPON OLT/GPON OLT	ODN Class	C+
Wavelength	TX 1577nm/RX 1270nm	Data Rate	TX 9.95G/RX 9.95G/RX 2.488G
TX Power	XGS-PON: +5.0~+8.0dBm GPON: +3.0~+7.0dBm	Receiver Sensitivity	XGS-PON<-29.0dBm GPON<-32.0dBm
Package	SFP-DD	Interface	SC/UPC
Cable Type	SMF	Max Distance	20km
Operation Temperature	0 °C to 70 °C	Protocols	ITU G.987.2, G.9807.1

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability

Rigorous Industrial Product Testing

Optical communication products belong to industrial products, which require high stability and reliability. FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

EMI Testing

Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF (Mean Time between Failures) testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing in system

PON Network Topology

Application Diagram of PON Network

XGPON XGSPON OLT&ONU

XGSPON OLT SFP

Product Features

v Single fiber bi-directional data links TX 9.953 Gbps, Burst Mode RX 9.953G/2.488 Gbps application

v Single fiber bi-directional data links TX 2.488 Gbps, Burst Mode RX 1.244 Gbps application

v 0 to 70°C operating case temperature

v 3.3V power supply

v SFP-DD package with SC Receptacle connector

v Hot-pluggable capability

v High power 1577nm EML LD and 1490nm DFB LD

v High sensitivity 1270nm/1310nm APD

v Support 20km transmission distance with SMF

v XGSPON RX_SD indication

v GPON RX_SD indication

v Low EMI and excellent ESD protection

v Digital diagnostic monitor interface

v RoHS10 compliance

Applications

v XGS-PON OLT C+

v GPON OLT C+

Standards

v Complies with SFF-8472

v Complies with ITU G.987.2

v Complies with ITU G.9807.1

v Complies with FCC 47 CFR Part 15, Class B

v Complies with FDA 21 CFR 1040.10 and 1040.11

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Datasheet


XGSPON-OLT-SNx.pdf
