{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

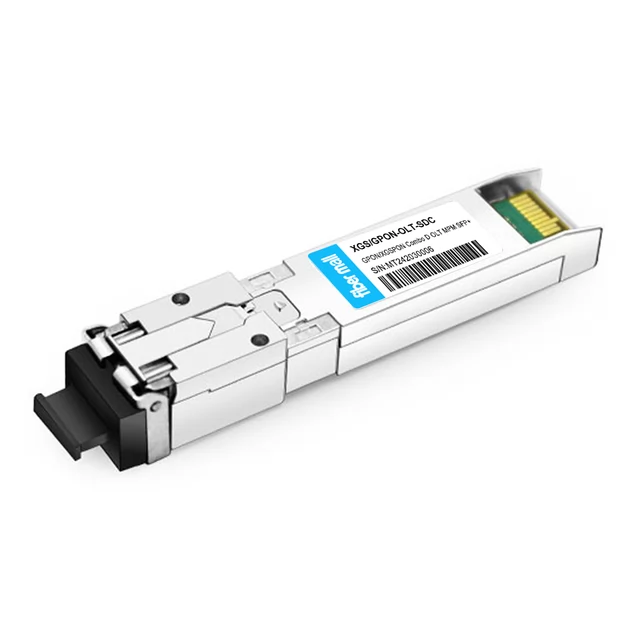

| FiberMall P/N | XGS/GPON-OLT-SDC | Vendor Name | FiberMall |
| Application | XGSPON OLT/GPON OLT | ODN Class | D |
| Wavelength | TX 1577nm/RX 1270nm | Data Rate | TX 9.95G/RX 9.95G/RX 2.488G |
| TX Power | XGS-PON: +8.0~+11.0dBm GPON: +6.0~+10.0dBm | Receiver Sensitivity | XGS-PON<-32.0dBm GPON<-35.0dBm |
| Package | SFP+ | Interface | SC/UPC |
| Cable Type | SMF | Max Distance | 20km |
| Operation Temperature | 0 °C to 70 °C | Protocols | ITU G.987.2, G.9807.1 |
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system. |
Product Features
v Single fiber bi-directional data links TX 9.953 Gbps, Burst Mode RX 9.953G/2.488 Gbps application
v Single fiber bi-directional data links TX 2.488 Gbps, Burst Mode RX 1.244 Gbps application
v 0 to 70°C operating case temperature
v 3.3V power supply
v SFP+ package with SC Receptacle connector
v Hot-pluggable capability
v High power 1577nm EML LD and 1490nm DFB LD
v High sensitivity 1270nm/1310nm APD
v Support 20km transmission distance with SMF
v RX_SD indication
v Low EMI and excellent ESD protection
v Digital diagnostic monitor interface
v RoHS6 compliance
Applications
v XGS-PON OLT Class D OLT
v GPON OLT Class D
Standards
v Complies with SFF-8472
v Complies with ITU G.9807.1 and ITU G.987.2
v Complies with FCC 47 CFR Part 15, Class B
v Complies with FDA 21 CFR 1040.10 and 1040.11
