NVIDIA MFP7E30-N005 8 Fibers OS2 SM LSZH MPO Cable 5M | FiberMall

Add to wish

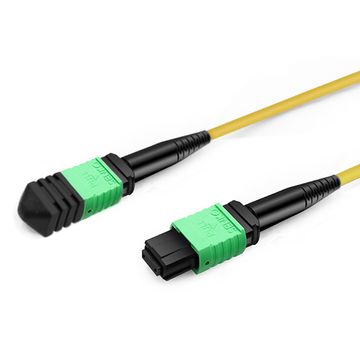

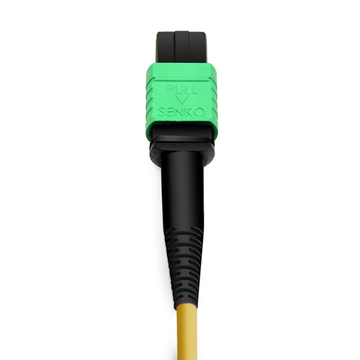

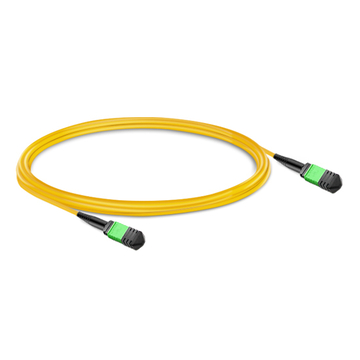

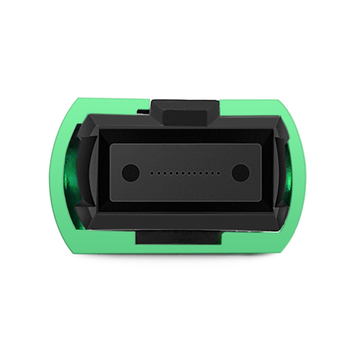

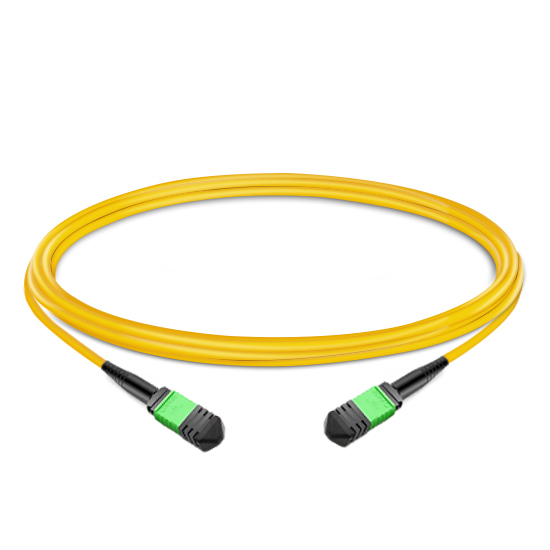

NVIDIA MFP7E30-N005 Compatible 5m (16ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Single-Mode OS2 9/125

Name: NVIDIA MFP7E30-N005 Compatible 5m (16ft) 8 Fibers Low Insertion Loss Female to Female MPO Trunk Cable Polarity B APC to APC LSZH Single-Mode OS2 9/125
Brand: fibermall
SKU: 50748
Price: 43.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:50748

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible Brands: NVIDIA

Length: 3m; 5m; 7m; 10m; 15m; 20m; 30m; 50m; 100m; 150m

FM PN:

MPO8FLOS2BA05-LI

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

NVIDIA MFP7E30-N005 Compatible 8 Fibers OS2 Single Mode MPO Passive Fiber Cable 5m (MPO to MPO Cable)

Product Details

Connector A	MPO Female	Connector B	MPO Female
Fiber Type	OS2 9/125μm Single Mode	Wavelength	1310/1550nm
Fiber Count	8 Fibers	Distance	5m (16ft)
Glass Fiber	Corning ClearCurve®	Cable Jacket	LSZH
Polish Type	APC to APC	Minimum Bend Radius	10mm
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥60dB
Attenuation at 1310nm	≤0.32 dB/km	Attenuation at 1550nm	≤0.18 dB/km
Cable Diameter	3.0mm	Fiber Color	Yellow
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Operating Temperature	-10°C to +70°C	Storage Temperature	-40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. FiberMall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Specifications

Connectors

Fiber Count

8 fibers

MPO-LC Harness Cables

12 fibers

MPO Trunk Cables / MPO-LC Harness Cables

24 fibers

MPO Trunk Cables

Fiber Type

: OM3 50/125 MMF; Corning ClearCurve Multimode Fiber

: OM4 50/125 MMF; Corning ClearCurve Multimode Fiber

: OS2 9/125 SMF; Corning SMF-28 Ultra Optical Fiber

Gender Type

: MPO Male With Pins

: MPO Female Without Pins

Polarity Type

Packaging & Labeling

: Single Package

: Small Quantity Package
