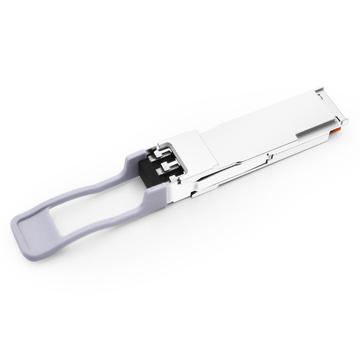

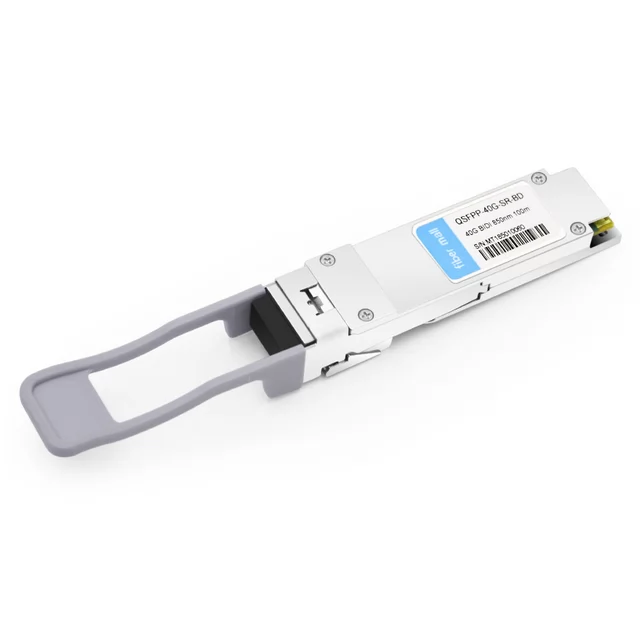

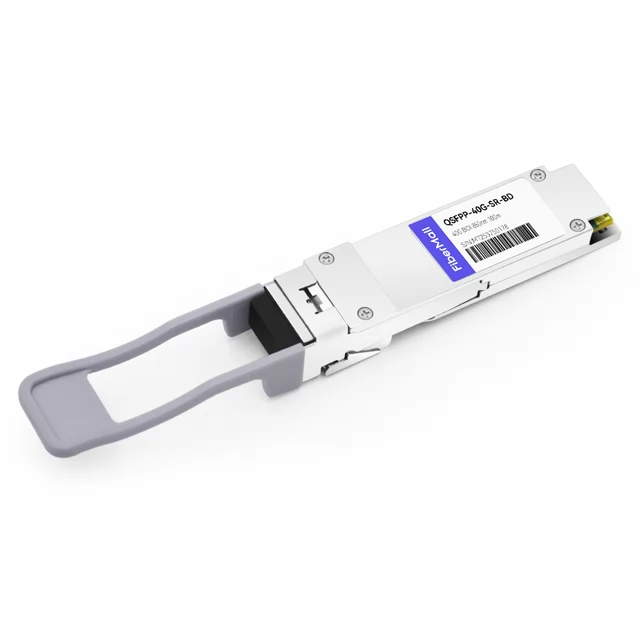

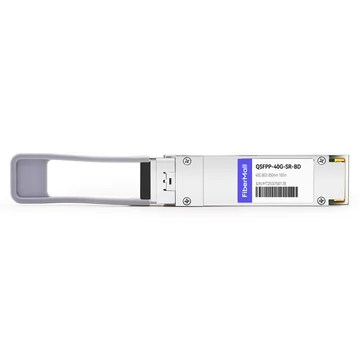

Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP+ SR Bi-Directional Transceiver Module (850nm, 900nm MMF 100m/150m Duplex LC)
40G QSFP+ SR Bi-Directional is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high-performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes into transmission over a single LC duplex fiber optic cable in each direction. Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.
Product Details
| Cisco Meraki Compatible | MA-QSFP-40G-SR-BD | Vendor Name | FiberMall |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850nm, 900nm | Max Distance | 100m @OM3/150m @OM4 |
| Connector | Duplex LC | Transmitter Type | VCSEL 850nm |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -2.0~+4.0dBm | Receiver Sensitivity | < -3.0dBm |
| Protocols | 40G Ethernet, IEEE802.3ba-2010, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
Keep In Stock
- Fast Delivery
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
Professional Service
- Technical Support
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
- Coding(EEPROM Programming)
![Cisco Meraki MA-QSFP-40G-SR-BD Compatible 40G QSFP BIDI | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
