Cisco Meraki MA-QSFP-40G-SR4 40G QSFP SR4 | FiberMall

Add to wish

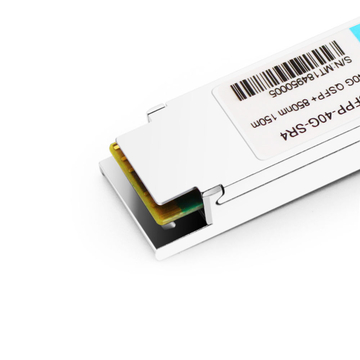

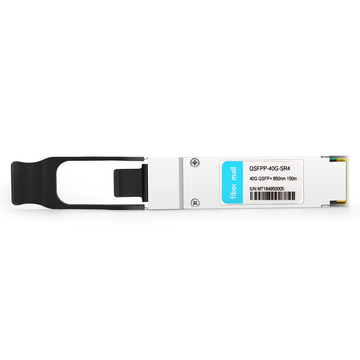

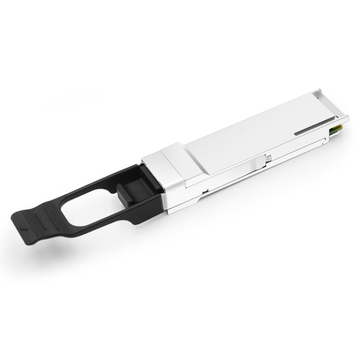

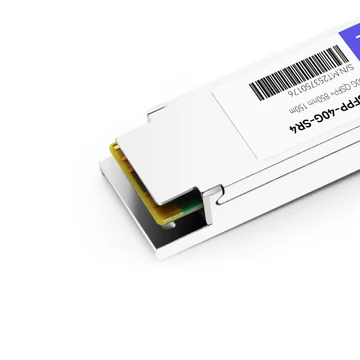

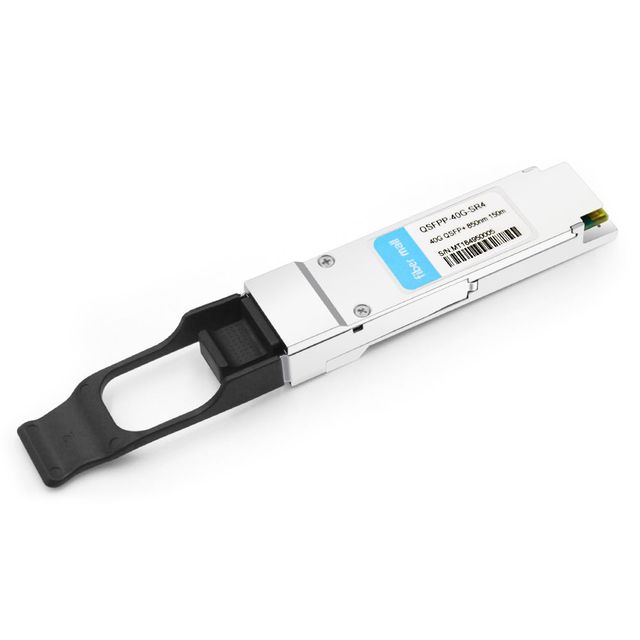

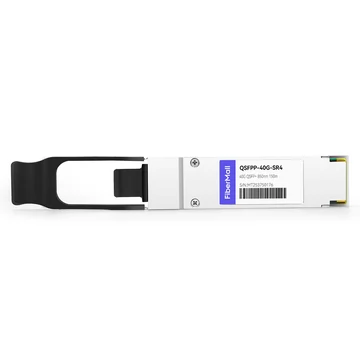

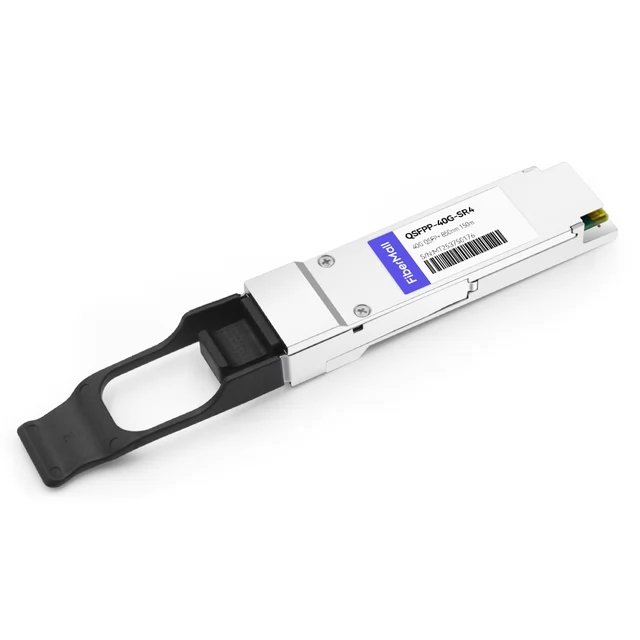

Cisco Meraki MA-QSFP-40G-SR4 Compatible 40G QSFP+ SR4 850nm 150m MTP/MPO MMF DDM Transceiver Module

Name: Cisco Meraki MA-QSFP-40G-SR4 Compatible 40G QSFP+ SR4 850nm 150m MTP/MPO MMF DDM Transceiver Module
Brand: fibermall
SKU: 19011
Price: 25.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19011

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; APRESIA; Alcatel-Lucent; Arista Networks; Avago; Brocade; Check Point; Cisco (Meraki); D-Link; DELL; EdgeCore; Extreme; F5 Networks; Fortinet; Gigamon; H3C; HPE (Aruba); HPE (BladeSystem); HPE (H3C); Huawei; IBM; Intel; Juniper; Mellanox; MikroTik; Palo Alto Networks

Transceiver Type: MA-QSFP-40G-SR4; MA-QSFP-40G-LR4; MA-QSFP-40G-SR-BD

FM PN:

QSFPP-40G-SR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Cisco Meraki MA-QSFP-40G-SR4 Compatible 40G QSFP+ SR4 Transceiver Module (850nm MMF 150m MTP/MPO DDM )

The 40G QSFP+ SR4 is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 100mon OM3 Multimode Fiber (MMF)and 150m on OM4 MMF.

Product Details

Cisco Meraki Compatible	MA-QSFP-40G-SR4	Vendor Name	FiberMall
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	850nm	Max Distance	100m @OM3/150m @OM4
Connector	MTP/MPO	Transmitter Type	VCSEL 850nm
Cable Type	MMF	Receiver Type	PIN
TX Power	-8~1.0dBm	Receiver Sensitivity	< -13dBm
Protocols	40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

40G QSFP SR4

Product Features

v 4 independent full-duplex channels

v Up to 11.2Gbps per channel bandwidth

v QSFP MSA compliant

v Capable of over 100m transmission on OM3 Multimode Fiber (MMF) and 150monOM4 MMF

v Single +3.3V power supply operating

v RoHS Compliant Part

v CML compatible electrical I/O

v TX input and RX output CDR retiming

v Application for Data centers, Switches, Routers, Infiniband 4x SDR, DDR, QDR
