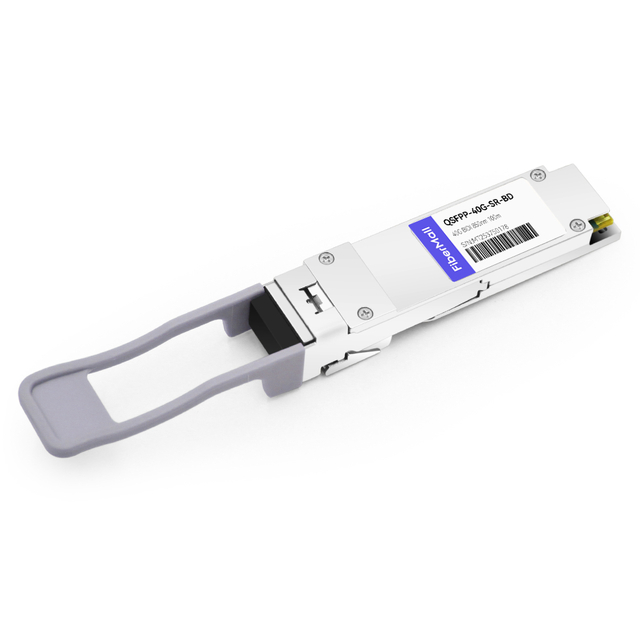

Huawei QSFP-40G-SR-BD 40G QSFP+ BIDI Optical Module | FiberMall

OFF

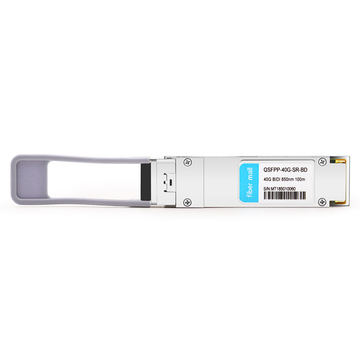

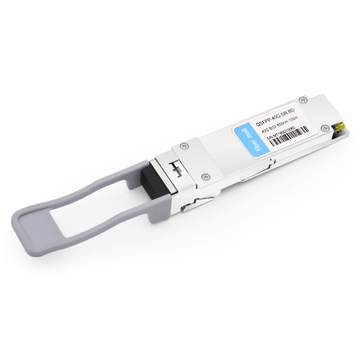

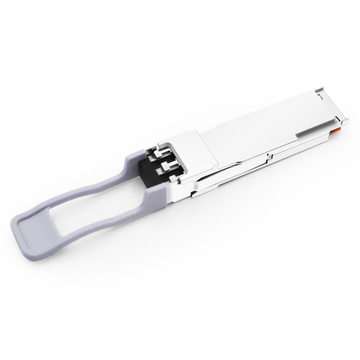

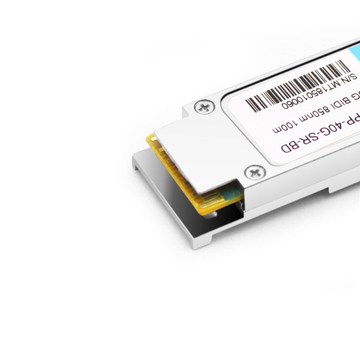

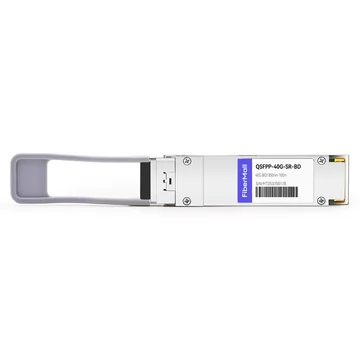

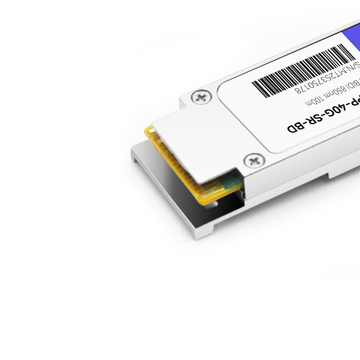

Huawei QSFP-40G-SR-BD Compatible 40G QSFP+ SR Bi-Directional 850nm/900nm 100m/150m Duplex LC MMF Transceiver Module

Add to wish

OFF

Huawei QSFP-40G-SR-BD Compatible 40G QSFP+ SR Bi-Directional 850nm/900nm 100m/150m Duplex LC MMF Transceiver Module

Name: Huawei QSFP-40G-SR-BD Compatible 40G QSFP+ SR Bi-Directional 850nm/900nm 100m/150m Duplex LC MMF Transceiver Module
Brand: fibermall
SKU: 10154
Price: 249.00 USD
Availability: OutOfStock
Rating: 4.8 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:10154

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Brocade; Cisco (Meraki); DELL; Extreme; H3C; HPE (Aruba); HPE (BLADESYSTEM); HPE (H3C); Huawei; Juniper

Transceiver Type: QSFP-40G-iSR4; QSFP-40G-eSR4; QSFP-40G-LR4-Lite; QSFP-40G-iSM4; QSFP-40G-eSM4; QSFP-40G-LR4; QSFP-40G-LX4; QSFP-40G-SR-BD; QSFP-40G-ER4; QSFPP-40G-ZR4-Lite-HW; QSFPP-40G-ZR4-HW; QSFPP-40G-EZR4-HW

FM PN:

QSFPP-40G-SR-BD

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Huawei QSFP-40G-SR-BD Compatible 40G QSFP+ SR Bi-Directional Transceiver Module (850nm, 900nm MMF 100m/150m Duplex LC)

40G QSFP+ SR Bi-Directional is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high-performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes into transmission over a single LC duplex fiber optic cable in each direction. Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.

Product Details

Huawei Compatible	QSFP-40G-SR-BD	Vendor Name	FiberMall
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	850nm, 900nm	Max Distance	100m @OM3/150m @OM4

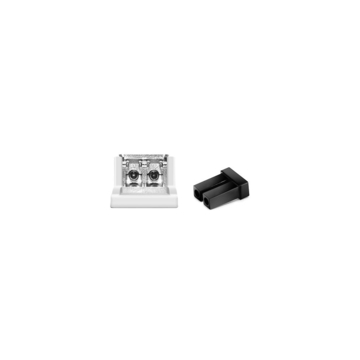

Connector	Duplex LC	Transmitter Type	VCSEL 850nm
Cable Type	MMF	Receiver Type	PIN
TX Power	-2.0~+4.0dBm	Receiver Sensitivity	< -3.0dBm
Protocols	40G Ethernet, IEEE802.3ba-2010, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010

v Compliant to QSFP+ SFF-8436 Specification

v Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data

v QSFP MSA compliant

v Capable of over 100m transmission on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF

v Single +3.3V power supply operating

v RoHS Compliant Part

v Utilizes a standard LC duplex fiber cable allowing the reuse of existing cable infrastructure

v Supports 40 Gigabit Ethernet interconnects, Datacom/Telecom switch & router connections, Data aggregation, and backplane applications.

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Datasheet

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

Christian Lowell

Switzerland

Verified Purchase

5.0

2022-08-28

The Cisco QSFP-40G-SR-BD is fully compatible with my switch, just as the Sale Manager said.

3 Helpful vote Comments

Dominic Snow

Switzerland

Verified Purchase

5.0

2022-08-26

Great experience overall when dealing with Fiber Mall.

3 Helpful vote Comments

Nicola Christian

Canada

Verified Purchase

5.0

2022-05-30

The product Huawei QSFP-40G-SR-BD with duplex LC connector offers me a compelling solution.

3 Helpful vote Comments

Godfery Yonng

United States

Verified Purchase

4.0

2022-04-14

They were outstanding. Fiber Mall even reached out to make sure that I received the item 40G QSFP+ SR BD and it worked.

4 Helpful vote Comments

Walter

United States

Verified Purchase

5.0

2022-01-11

Installed these modules, Huawei QSFP-40G-SR-BD, for nearly one month. They offered seamless connectivity between my switches, helping to set up a stable 40Gbe network.
