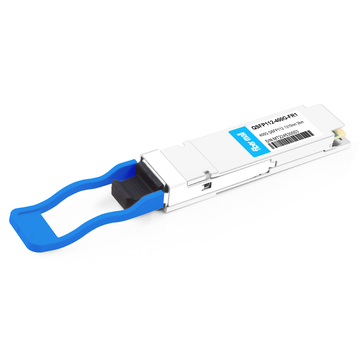

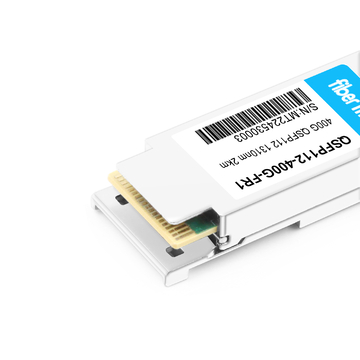

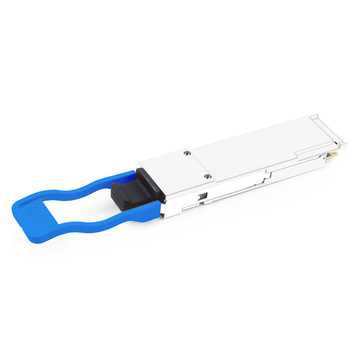

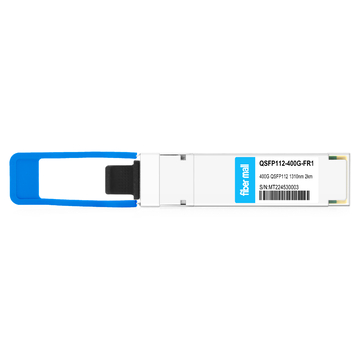

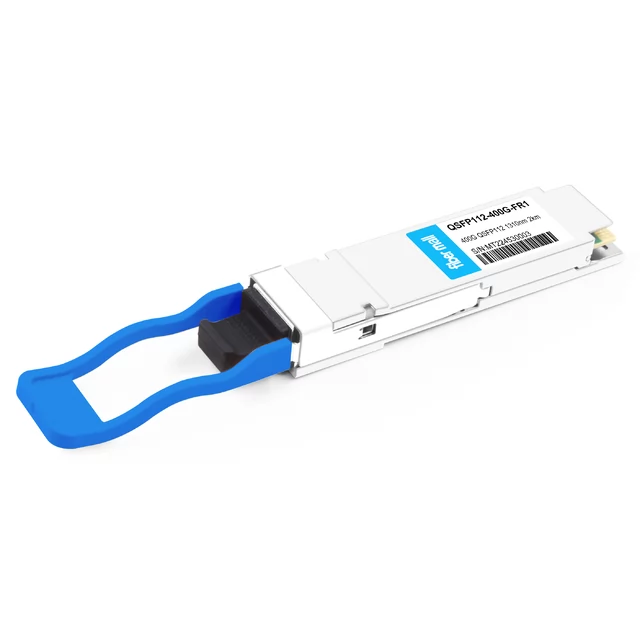

The QSFP112 400GBASE FR1 transceiver module is designed for 400G Ethernet links over 2km of single-mode fiber. The module contains 4 parallel channels at a center wavelength of 1310nm, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.
| FiberMall P/N | QSFP112-400G-FR1 | Vendor Name | FiberMall |
| Form Factor | QSFP112 | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 1310nm EML | Receiver Type | PIN |
| TX Power | -2.4~+4.0dBm | Receiver Sensitivity | < -6.4dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 12W |
| Protocols | QSFP112 MSA, IEEE 802.3bs | Application | 400G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports 425Gbps
v Single 3.3V Power Supply
v 4x106.25Gbps (PAM4) electrical interface
v QSFP112 MSA, RoHS Compliant
v Up to 2km over SMF with FEC supported at the Host side
v Maximum power consumption 10.5W
v Supports Data Center Interconnect, 400GBASE FR1, Infiniband interconnects, Enterprise networking
