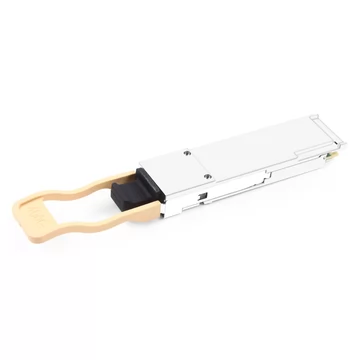

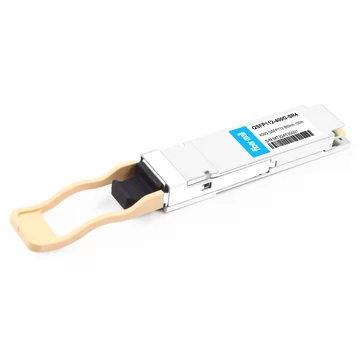

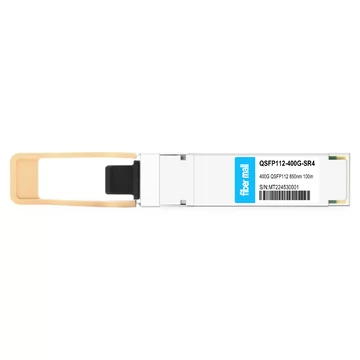

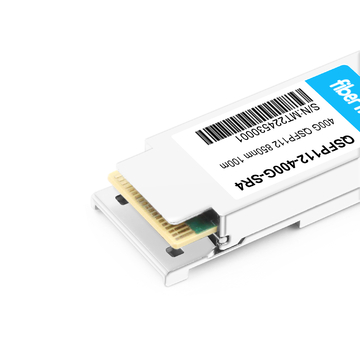

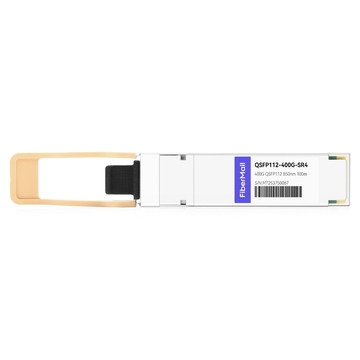

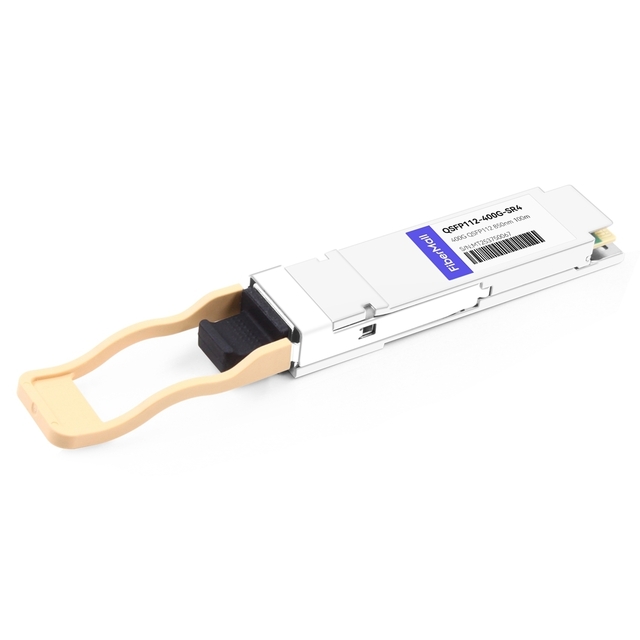

The QSFP112 400GBASE SR4 transceiver module is designed for 400G Ethernet links over 100m of Multi-mode fiber. The module contains 4 parallel channels at a center wavelength of 850nm, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.
| FiberMall P/N | QSFP112-400G-SR4 | Vendor Name | FiberMall |
| Form Factor | QSFP112 | Max Data Rate | 425Gbps |
| Wavelength | 850nm | Max Distance | 60m on OM3/100m on OM4 |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MPO-12 (APC) | Voltage Supply | 3.3V |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| TX Power | -4.6~+4.0dBm | Receiver Sensitivity | < -4.6dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 8W |
| Protocols | QSFP112 MSA, IEEE 802.3bs | Application | 400G Ethernet, Data Center Interconnect, Infiniband Interconnects |
400GIB/EN Switches to 2 Connectx-7 and BIueField-3
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
FiberMall P/N
|
QSFP112-400G-SR4
|
-
|
LQSFP112-400G-SR4
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP112
|
QSFP112
|
QSFP112
|
|
Max Data Rate
|
425Gbps
|
425Gbps
|
425Gbps
|
|
Wavelength
|
850nm
|
850nm
|
850nm
|
|
Max Distance
|
60m on OM3/100m on OM4
|
60m on OM3/100m on OM4
|
50m on OM3
|
|
Modulation Format
|
PAM4
|
PAM4
|
PAM4
|
|
Host Required
|
FEC
|
FEC
|
FEC
|
|
Connector
|
MPO-12 (APC)
|
MPO-12 (APC)
|
MPO-12 (APC)
|
|
Voltage Supply
|
3.3V
|
3.3V
|
3.3V
|
|
Cable Type
|
MMF
|
MMF
|
MMF
|
|
DDM Support
|
Yes
|
Yes
|
Yes
|
|
Transmitter Type
|
850nm VCSEL
|
850nm VCSEL
|
850nm VCSEL
|
|
Receiver Type
|
PIN
|
PIN
|
PIN
|
|
TX Power
|
-4.6~+4.0dBm
|
-4.6~+4.0dBm
|
-4.6~+4.0dBm
|
|
Receiver Sensitivity
|
< -4.6dBm
|
< -4.6dBm
|
< -4.6dBm
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Maximum Power
|
< 8W
|
< 8W
|
< 8W
|
|
Protocols
|
QSFP112 MSA, IEEE 802.3bs
|
QSFP112 MSA, IEEE 802.3bs
|
QSFP112 MSA Compliant, CMIS 5.0
|
|
Application
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
Product Features
v Supports 425Gbps
v Single 3.3V Power Supply
v 4x106.25Gbps (PAM4) electrical interface
v QSFP112 MSA, RoHS Compliant
v Up to 100m over MMF with FEC supported at the Host side
v Maximum power consumption 8W
v Supports Data Center Interconnect, 400GBASE SR4 , Infiniband interconnects, Enterprise networking
