{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

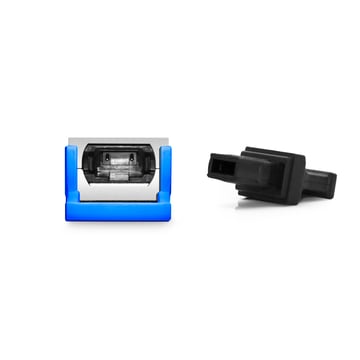

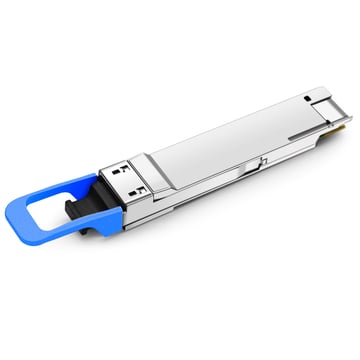

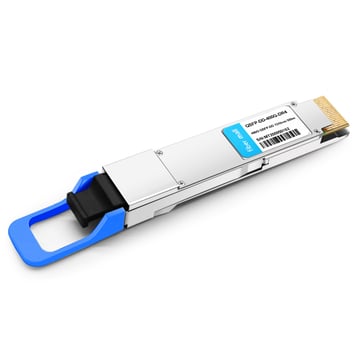

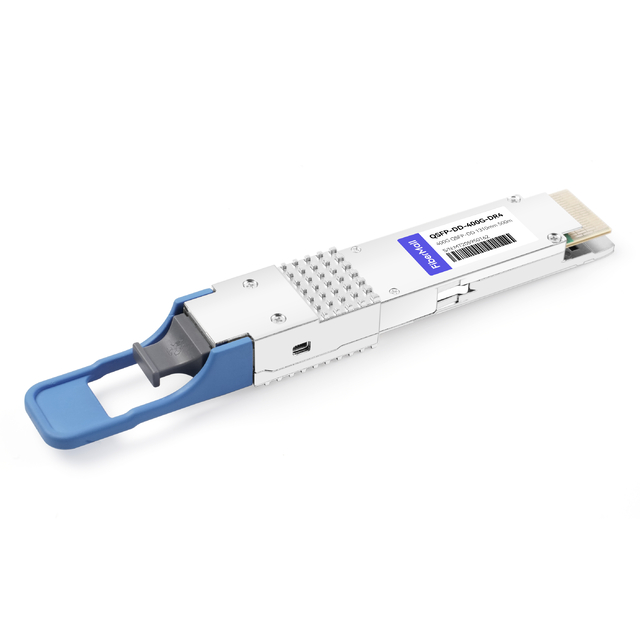

Mellanox MMS1V00-WM Compatible DR4 400G QSFP Optics features an MTP/MPO-12 connector, which is compliant with the QSFP-DD MSA, IEEE 802.3bs and 400GBASE-DR4. 400 Gigabit Ethernet signals are transmitted over four parallel channels on one wavelength per channel. The Transceiver can also be connected to 100G DR optical modules. It adopts a 1310nm EML transmitter type and PAM4 pulse amplitude modulation mode. It is used in data centers, high-performance computing networks, enterprise core, and distribution layers, and service provider applications.
| Mellanox Compatible | MMS1V00-WM | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Distance | 500m |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 1310nm EML | Receiver Type | PIN |
| TX Power | -2.9~+4.0dBm | Receiver Sensitivity | < -5.9dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 10.5W |
| Protocols | QSFP-DD MSA, IEEE 802.3bs 400GBASE-DR4 | Application | 400G Ethernet, Data Center Interconnect |

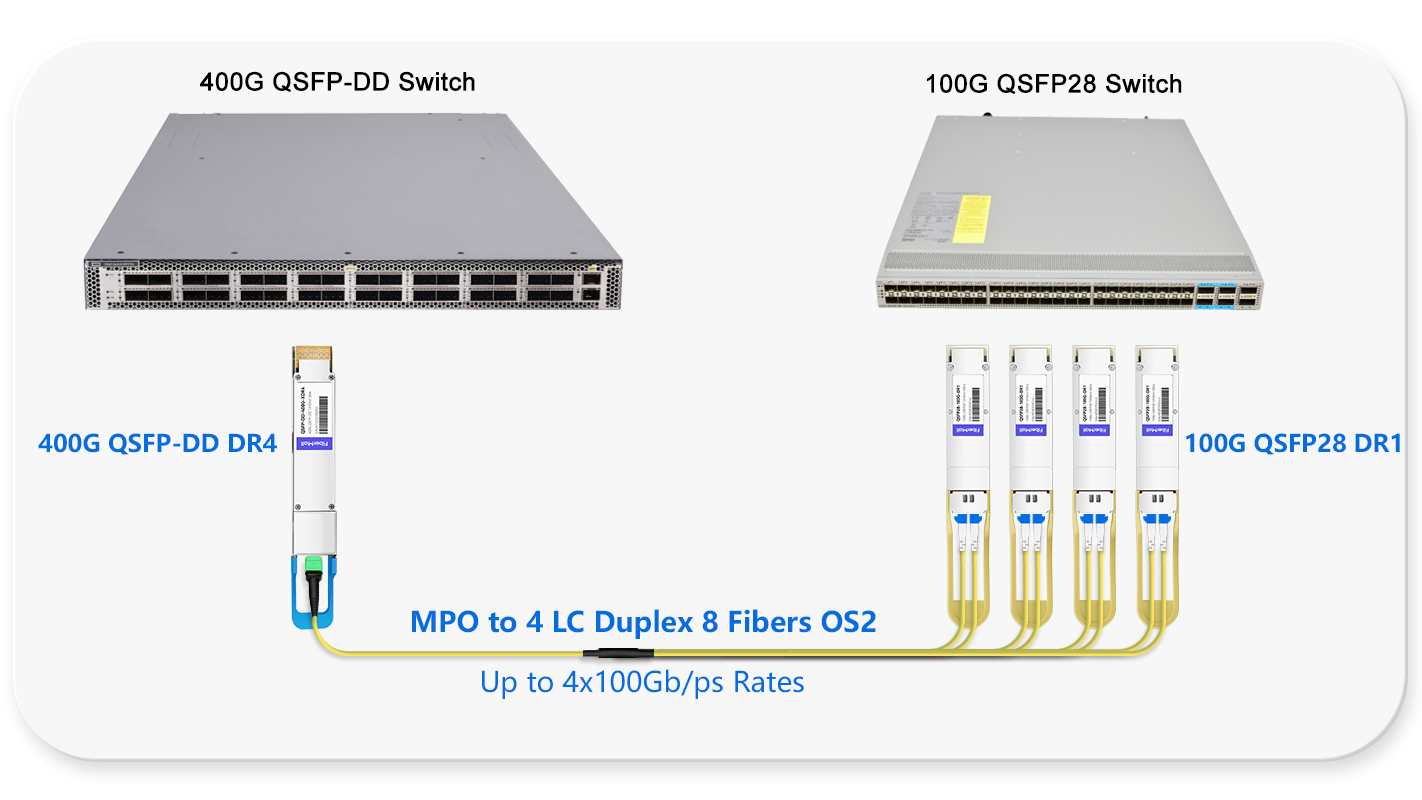

400G Switch to 4x100G Switch Links Using 8 Fibers MPO to LC Breakout Cable
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
NVIDIA Compatible
|
MMS1V00-WM
|
-
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP-DD
|
QSFP-DD
|
|
Max Data Rate
|
425Gbps
|
425Gbps
|
|
Wavelength
|
1310nm
|
1310nm
|
|
Max Distance
|
500m
|
500m
|
|
Modulation Format
|
PAM4
|
PAM4
|
|
Host Required
|
FEC
|
FEC
|
|
Connector
|
MTP/MPO-12
|
MTP/MPO-12
|
|
Voltage Supply
|
3.3V
|
3.3V
|
|
Cable Type
|
SMF
|
SMF
|
|
DDM Support
|
Yes
|
Yes
|
|
Transmitter Type
|
1310nm EML
|
1310nm EML
|
|
Receiver Type
|
PIN
|
PIN
|
|
TX Power
|
-2.9~+4.0dBm
|
-2.9~+4.0dBm
|
|
Receiver Sensitivity
|
< -5.9dBm
|
< -5.9dBm
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Maximum Power
|
< 10.5W
|
< 10.5W
|
|
Protocols
|
QSFP-DD MSA,
IEEE 802.3bs 400GBASE-DR4 |
QSFP-DD MSA,
IEEE 802.3bs 400GBASE-DR4 |
|
Application
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
400G Ethernet, Data Center Interconnect
|
Product Features
v QSFP-DD MSA compliant
v Parallel 4 Optical Lanes
v IEEE 802.3bs 400GBASE-DR4 Specification compliant
v 8x53.125Gb/s electrical interface (400GAUI-8)
v Data Rate 106.25Gbps (PAM4) per channel
v Maximum power consumption 12W
v Supports Data Center Interconnect, 400G Ethernet,Enterprise networking
v RoHS compliant
