NVIDIA MMS1V00-WM Compatible 400G QSFP-DD DR4 Optics | FiberMall

Add to wish

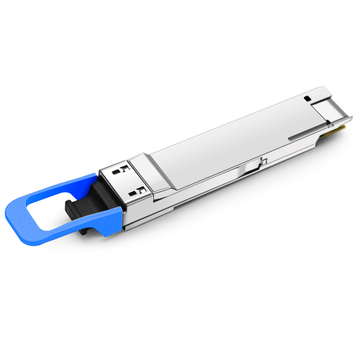

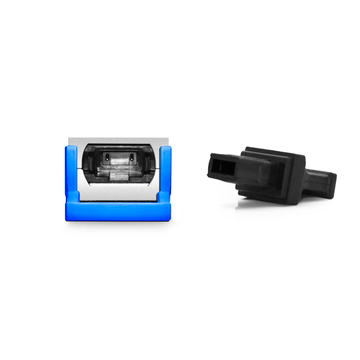

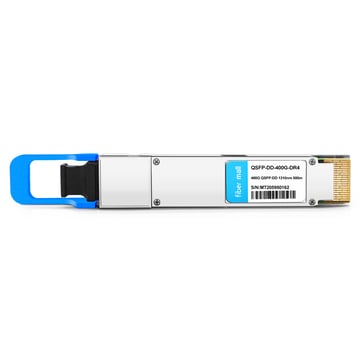

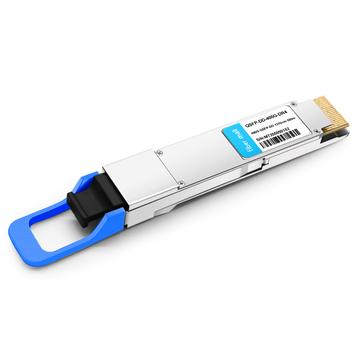

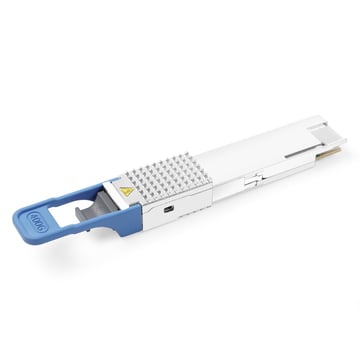

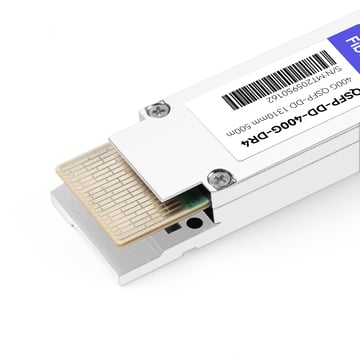

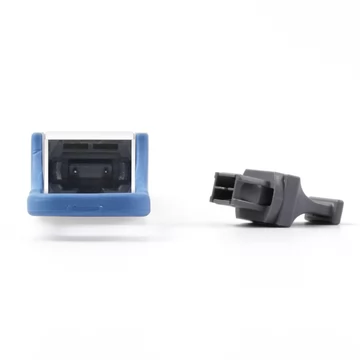

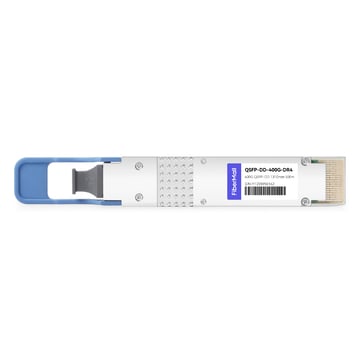

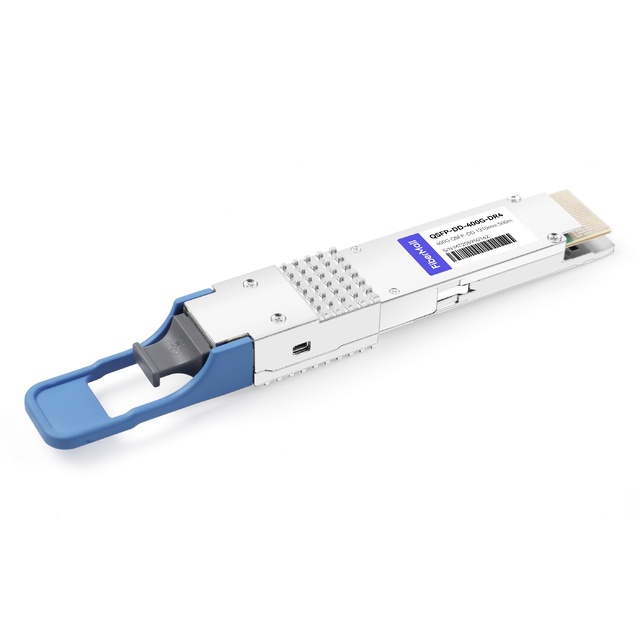

NVIDIA MMS1V00-WM Compatible 400G QSFP-DD DR4 PAM4 1310nm 500m MTP/MPO-12 DDM SMF Optical Transceiver Module

Name: NVIDIA MMS1V00-WM Compatible 400G QSFP-DD DR4 PAM4 1310nm 500m MTP/MPO-12 DDM SMF Optical Transceiver Module
Brand: fibermall
SKU: 20159
Price: 450.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20159

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Mellanox; NVIDIA

Transceiver Type: T-DQ8FNS-N00-M; MMS1V00-WM

FM PN:

QSFP-DD-400G-DR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

NVIDIA MMS1V00-WM Compatible 400G QSFP-DD DR4 Transceiver Module Use for Enterprise Core and Data Center(PAM4, 1310nm, 500m, MTP/MPO-12, DDM, SMF)

NVIDIA MMS1V00-WM Compatible 400G QSFP-DD DR4 Transceiver supports 500m, 8x53.125Gbps (PAM4) EI and uses a wavelength of 1310nm via MTP/MPO-12 connector. The Transceiver complies with QSFP-DD MSA, IEEE 802.3bs protocol, and 400GAUI-8 standard. 400 Gigabit Ethernet signals are transmitted over four parallel channels on one wavelength per channel. It can also be connected to 100G DR optical modules. It adopts a 1310nm EML transmitter type and PAM4 pulse amplitude modulation mode. It is used in data centers, high-performance computing networks, enterprise cores, distribution layers, and service provider applications.

Product Details

NVIDIA Compatible	MMS1V00-WM	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	500m
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-12	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	1310nm EML	Receiver Type	PIN
TX Power	-2.9~+4.0dBm	Receiver Sensitivity	< -5.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 10.5W
Protocols	QSFP-DD MSA, IEEE 802.3bs 400GBASE-DR4	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

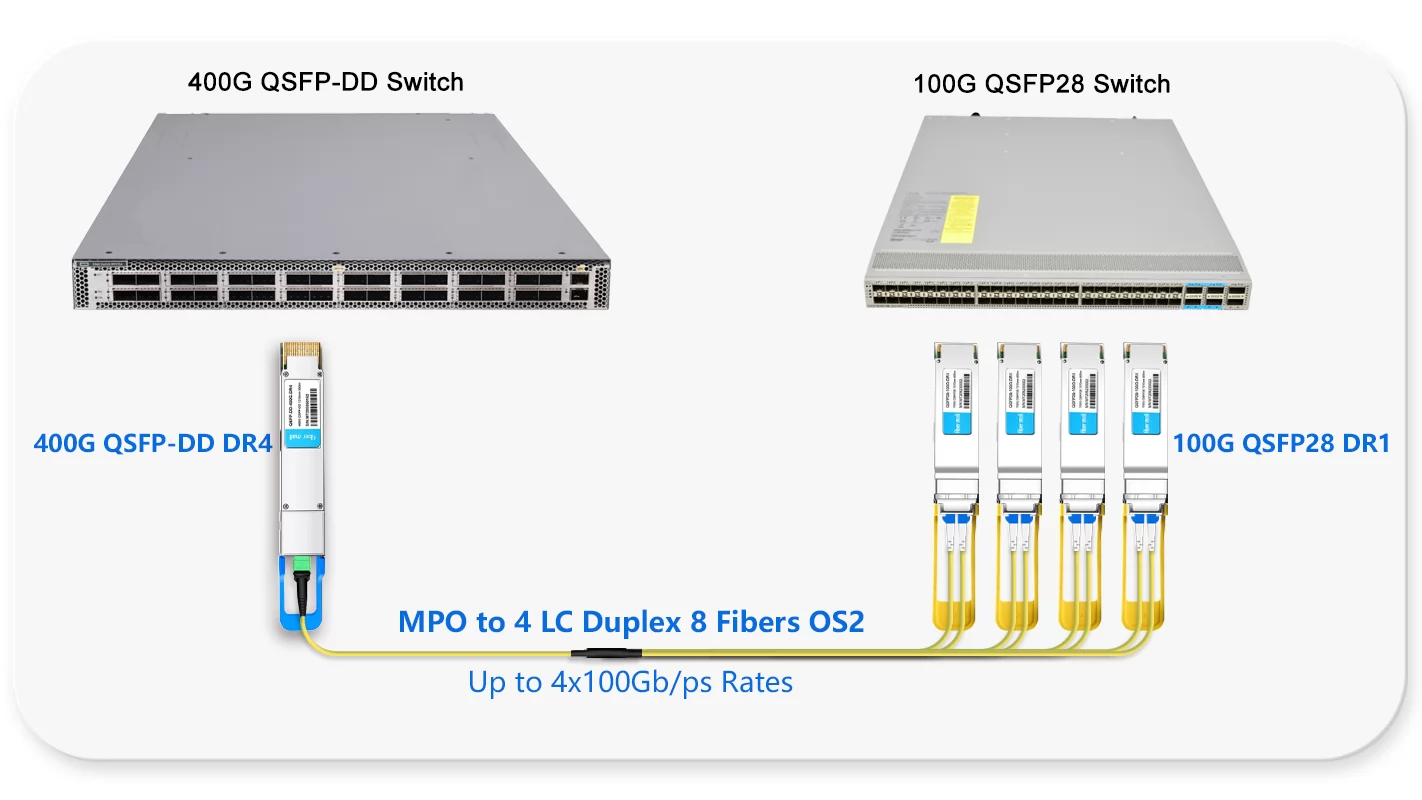

400G to 4x100G links for Switch to Switch

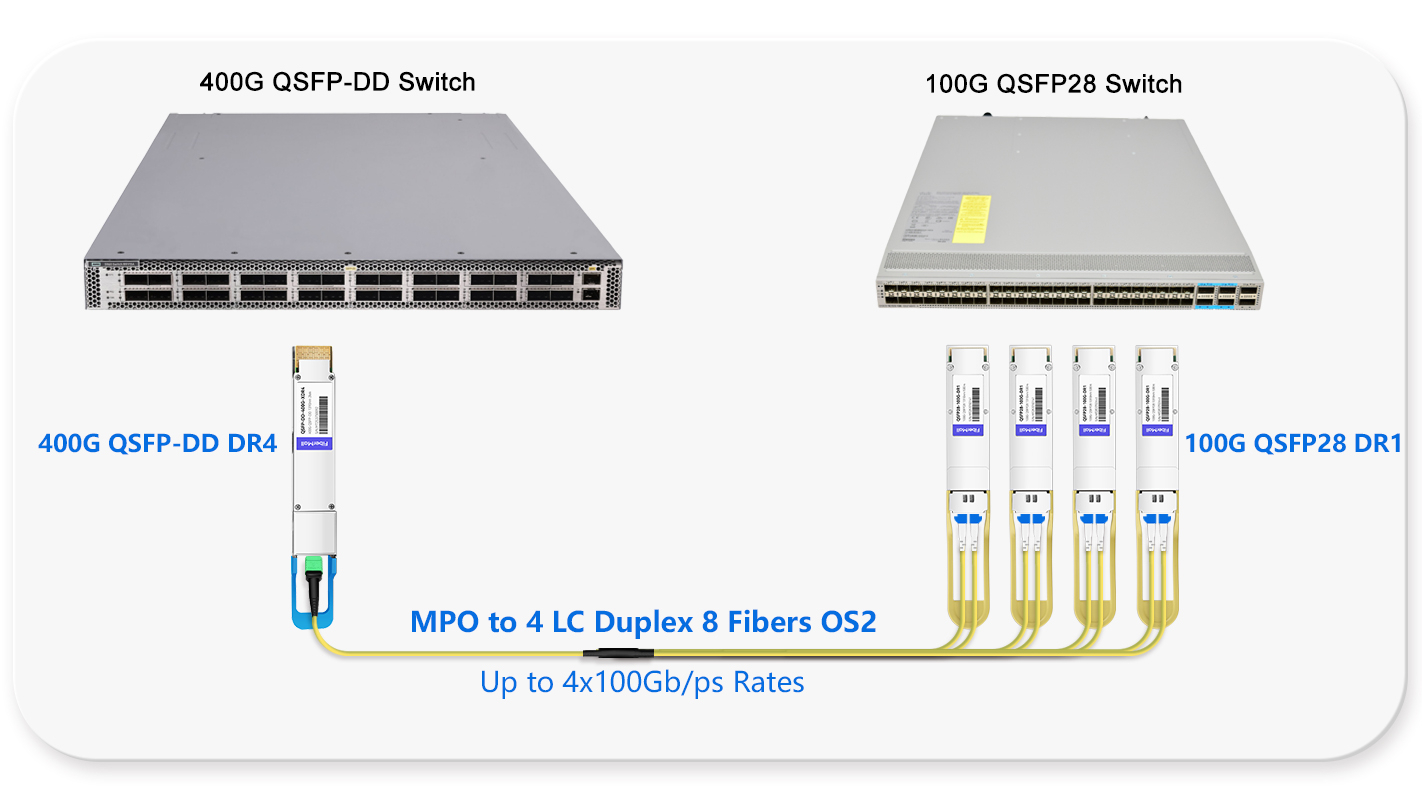

400G Switch to 4x100G Switch Links Using 8 Fibers MPO to LC Breakout Cable

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes:

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

3. 400G is supported as 4x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems

	QSFP-DD-400G-DR4	QSFP-DD-400G-DR4
NVIDIA Compatible	MMS1V00-WM	-
Vendor Name	FiberMall	FiberMall
Form Factor	QSFP-DD	QSFP-DD
Max Data Rate	425Gbps	425Gbps
Wavelength	1310nm	1310nm
Max Distance	500m	500m
Modulation Format	PAM4	PAM4
Host Required	FEC	FEC
Connector	MTP/MPO-12	MTP/MPO-12
Voltage Supply	3.3V	3.3V
Cable Type	SMF	SMF
DDM Support	Yes	Yes
Transmitter Type	1310nm EML	1310nm EML
Receiver Type	PIN	PIN
TX Power	-2.9~+4.0dBm	-2.9~+4.0dBm
Receiver Sensitivity	< -5.9dBm	< -5.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 10.5W	< 10.5W
Protocols	QSFP-DD MSA, IEEE 802.3bs 400GBASE-DR4	QSFP-DD MSA, IEEE 802.3bs 400GBASE-DR4
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect

Product Features

v QSFP-DD MSA compliant

v Parallel 4 Optical Lanes

v IEEE 802.3bs 400GBASE-DR4 Specification compliant

v 8x53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 106.25Gbps (PAM4) per channel

v Maximum power consumption 12W

v Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking

v RoHS compliant
