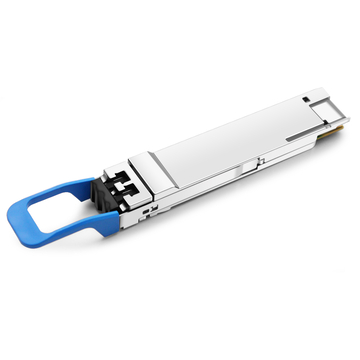

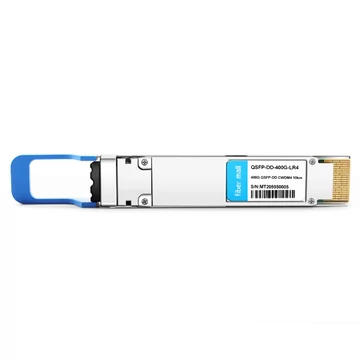

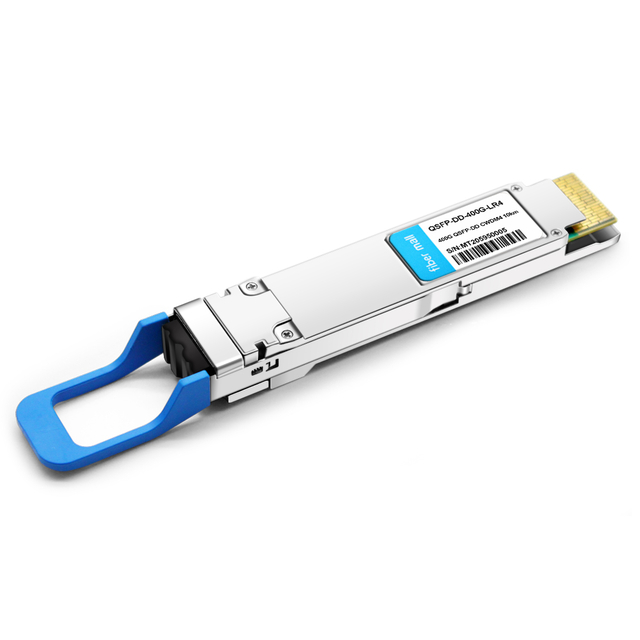

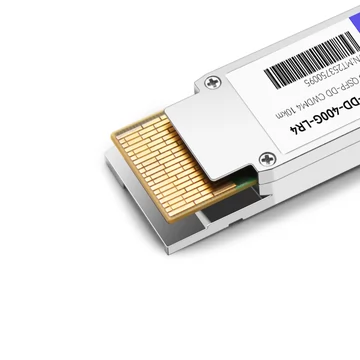

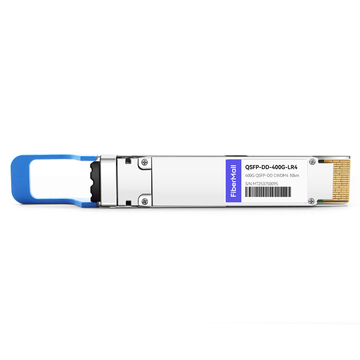

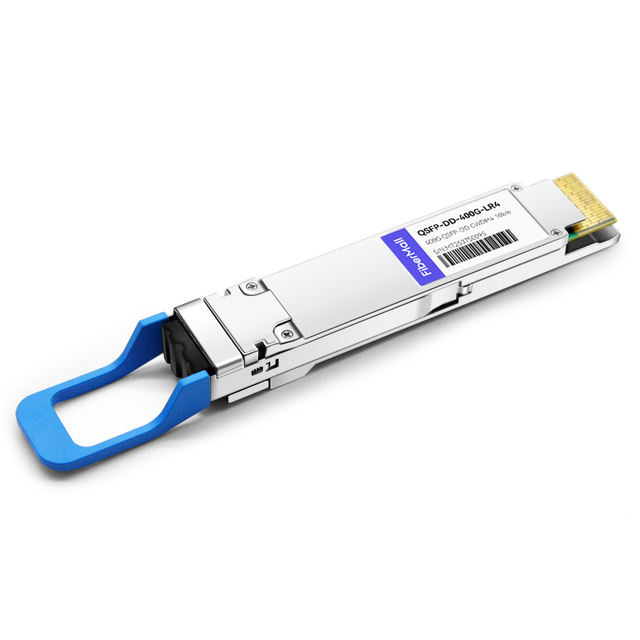

Mellanox MMS1V90-WR Compatible LR4 Optical Transceiver fits into standard QSFP-DD slots and drives 400G Ethernet up to 10km distances with MUX/DEMUX design. The Transceiver modules support link lengths up to 10 km over a pair of standard G.652 single-mode fiber (SMF) with duplex LC connectors. It complies with the IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. It uses built-in CWDM mux/demux and duplex LC connectors to aggregate 4 channels with 100G capacity per channel, using 1271 to 1331nm CWDM lasers.
| Mellanox Compatible | MMS1V90-WR | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 10km |
| Modulation Format | PAM4 | Host Required | FEC |

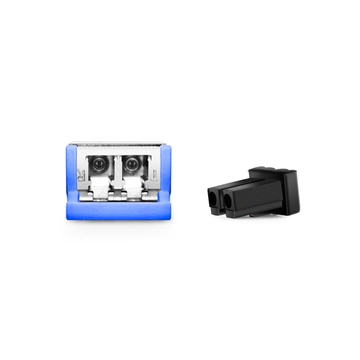

| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | CWDM EML | Receiver Type | PIN |
| TX Power | -3.3~+3.5dBm | Receiver Sensitivity | < -7.7dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 12.0W |
| Protocols | QSFP-DD MSA, 100G Lambda MSA 400G-LR4 | Application | 400G Ethernet, Data Center Interconnect |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing

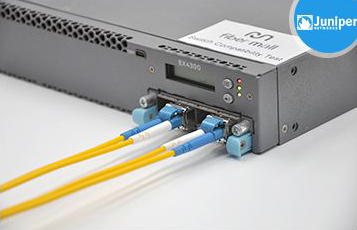

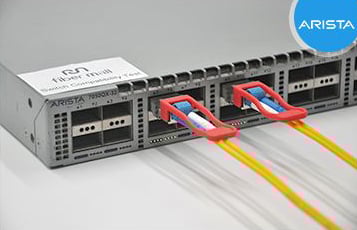

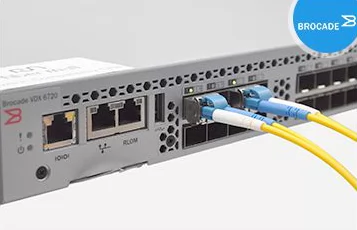

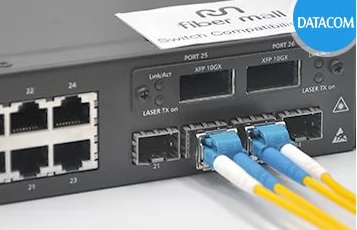

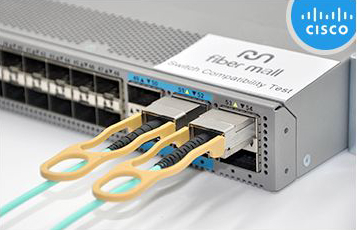

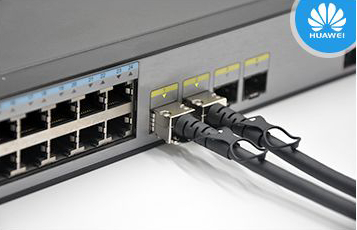

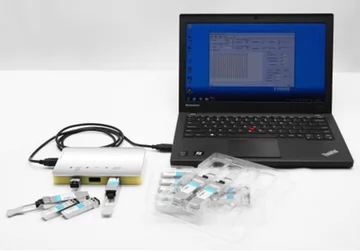

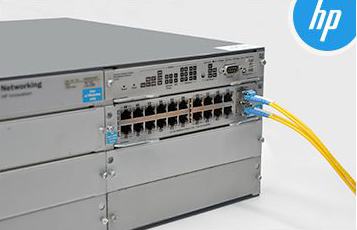

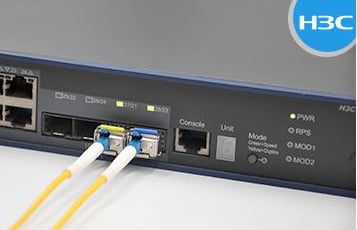

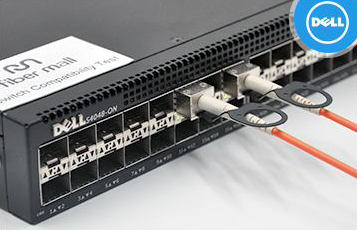

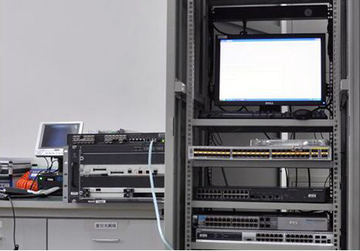

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v QSFP-DD MSA and RoHS compliant
v 4 CWDM lanes MUX/DEMUX design
v 100G Lambda MSA 400G-LR4 Specification compliant
v 8x 53.125Gb/s electrical interface (400GAUI-8)
v Data Rate 106.25Gbps (PAM4) per channel.
v Maximum power consumption 12W
v Supports Data Center Interconnect, 400G Ethernet, Enterprise networking
