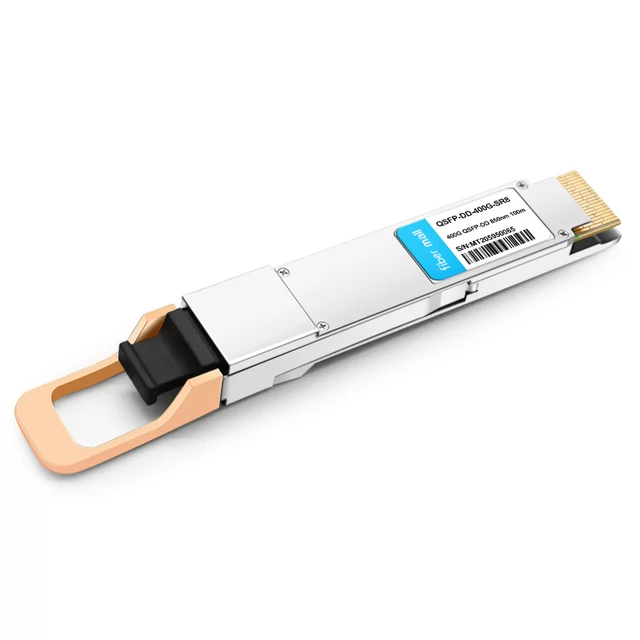

400GBASE SR8 QSFP-DD Optical Transceiver Module| FiberMall

Add to wish

QSFP-DD-400G-SR8 400G QSFP-DD SR8 PAM4 850nm 100m MTP/MPO OM3 FEC Optical Transceiver Module

Name: QSFP-DD-400G-SR8 400G QSFP-DD SR8 PAM4 850nm 100m MTP/MPO OM3 FEC Optical Transceiver Module
Brand: fibermall
SKU: 17982
Price: 180.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:17982

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; DELL; EdgeCore; H3C; Huawei; Juniper

Transceiver Type: QSFP-DD-400G-SR8; QSFP-DD-400G-DR4; QSFP-DD-400G-FR4; QSFP-DD-400G-SR4; QSFP-DD-400G-LR4; QSFP-DD-400G-XDR4; QDD-4X100G-FR-Si; QDD-4X100G-FR-4Si; QSFP-DD-400G-PLR4; QSFP-DD-400G-SR4.2; QSFP-DD-400G-ER4L; QSFP-DD-400G-LR8; QSFP-DD-400G-ER8; QSFP-DD-400G-ER4

FM PN:

QSFP-DD-400G-SR8

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

400G QSFP-DD SR8 PAM4 Optical Transceiver Module (850nm MTP/MPO OM3/OM4 100m with FEC DDM)

400G QSFP-DD SR8 module supports multimode fiber (MMF) link lengths of up to 100m via MTP/MPO-16 connectors. It supports eight electrical interface channels that operate in 50G PAM4 coding mode to produce 400G (8x50G) data rates. It is compliant with the IEEE 802.3bs protocol and the 400GAUI-8/CEI-56G-VSR-PAM4 standard. The multiplexing and demultiplexing of eight wavelengths are managed within the device and connect 400G signals from the server side (NIC) to the data center aggregation switch.

Product Details

FiberMall P/N	QSFP-DD-400G-SR8	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	850nm	Max Distance	70m on OM3/100m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-16	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Receiver Type	PIN	TX Power	-6.5~+4.0dBm
Receiver Sensitivity	< -7.9dBm	Operation Temperature	0 to 70°C (32 to 158°F)
Maximum Power	< 12W	Protocols	QSFP-DD MSA, IEEE 802.3bs
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

400G QSFP-DD Swtich to 200G NIC Link

400G Switch to 200G NIC Link Using Multi-mode Optics

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP-DD-400G-SR4	QSFP-DD-400G-SR4.2	QSFP-DD-400G-SR8	OSFP-400G-SR4-FLT	OSFP-400G-SR8
FiberMall P/N	QSFP-DD-400G-SR4	QSFP-DD-400G-SR4.2	QSFP-DD-400G-SR8	OSFP-400G-SR4-FLT	OSFP-400G-SR8
Vendor Name	FiberMall	FiberMall	FiberMall	FiberMall	FiberMall
Form Factor	QSFP-DD	QSFP-DD	QSFP-DD	OSFP	OSFP
Wavelength	850nm	850nm/910nm	850nm	850nm	-
Max Distance	60m on OM3/100m on OM4	100m on OM4/150m on OM5	70m on OM3/100m on OM4	30m on OM3/50m on OM4	100m on OM3
Modulation Format	PAM4	PAM4	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC	FEC	FEC
Connector	MTP/MPO-12	MTP/MPO-12	MTP/MPO-16	MPO-12 (APC)	MTP/MPO-16
Voltage Supply	3.3V	3.3V	3.3V	3.3V	3.3V
Cable Type	MMF	MMF	MMF	MMF	MMF
Modulation (electrical)	8x53.125Gb/s PAM4	-	-	-	-
Modulation (Optical)	4x106.25Gb/s PAM4	-	-	-	-
TX Power	-4.6~+4.0dBm	-6.5~+4.0dBm	-6.5~+4.0dBm	-4.6~+4.0dBm	-6.0~+4.0dBm
Receiver Sensitivity	<-6.4dBm	< -6.6dBm	< -7.9dBm	< -4.6dBm	< -7.0dBm
DDM Support	Yes	Yes	Yes	Yes	Yes
Receiver Type	PIN	PIN	PIN	PIN	PIN
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	<9W	< 12W	< 12W	< 8W	< 12.0W
Protocols	QSFP-DD MSA, IEEE 802.3bs	QSFP-DD MSA, IEEE 802.3bs	QSFP-DD MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs
Application	400G Ethernet, Data Center Interconnect	400G Ethernet, Data Center Interconnect, Infiniband HDR, EDR	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking

Product Features

v QSFP-DD MSA compliant

v 8 parallel lanes on 850nm center wavelength

v Compliant to IEEE 802.3bs, RoHS

v 8x53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 53.125Gbps (PAM4) per channel.

v Maximum power consumption 12W

v Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking
