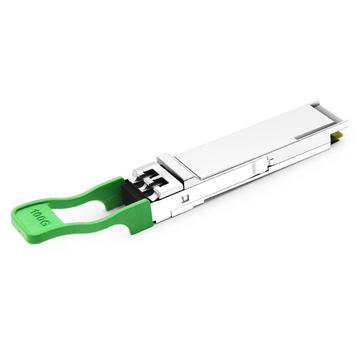

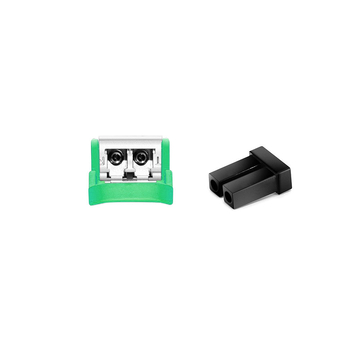

HPE X150 JH673A Compatible 100G QSFP28 CWDM4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 2km LC DDM)
The 100G QSFP28 CWDM4 transceiver modules are designed for 100 Gb Ethernet links over single-mode fiber up to 2 km. It complies with the 1000GBASE CWDM4 MSA standard. The module converts 25Gb/s electrical data from 4 input channels (ch) into 4 CWDM optical signals and multiplexes them into a single channel for 100Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2.
Product Details
| HPE Compatible | JH673A | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelength | 1271nm, 1291nm
1311nm, 1331nm | Max Distance | 2km |
| Connector | Duplex LC | Transmitter Type | CWDM DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -6.5~+2.5dBm | Receiver Sensitivity | < -11.5dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
Keep In Stock
- Fast Delivery
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
Professional Service
- Technical Support
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
- Coding(EEPROM Programming)
![HPE X150 JH673A Compatible 100GBASE-CWDM4 Transceiver | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
