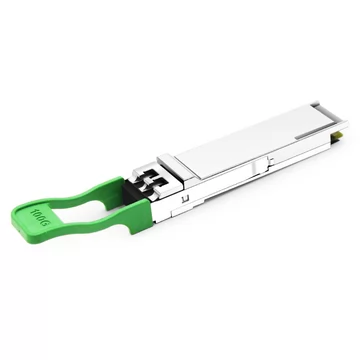

Huawei QSFP-100G-CWDM4 Compatible 100G QSFP28 CWDM4 1310nm 2km LC SMF DDM Transceiver Module

Name: Huawei QSFP-100G-CWDM4 Compatible 100G QSFP28 CWDM4 1310nm 2km LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 10020
Price: 110.00 USD
Availability: OutOfStock
Rating: 4.7 (13 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:10020

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Brocade; DELL; EdgeCore; H3C; HPE (Aruba); HPE (H3C); Huawei; Juniper Networks; Mellanox; Palo Alto Networks

Transceiver Type: QSFP-100G-SR4; QSFP28-100G-eSR4; QSFP-100G-CWDM4; QSFP28-100G-DR; QSFP28-100G-PSM4; QSFP-100G-eCWDM4; QSFP-100G-FR1; QSFP-100G-LR1; QSFP-100G-BIDI-G2; QSFP-100G-LR4; 02311QUK; QSFP28-100G-BIDI; Q28-100G23-BX10-HW; Q28-100G32-BX10-HW; Q28-100G23-BX20-HW; Q28-100G32-BX20-HW; QSFP-100G-ER4-Lite; Q28-100G49-BX30-HW; Q28-100G94-BX30-HW; Q28-100G49-BX40-HW; Q28-100G94-BX40-HW

Transmission Mode: Regular

FM PN:

QSFP28-100G-IR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Huawei QSFP-100G-CWDM4 Compatible 100G QSFP28 CWDM4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 2km LC DDM)

The 100G QSFP28 CWDM4 transceiver modules are designed for 100 Gb Ethernet links over single-mode fiber up to 2 km. It complies with the 1000GBASE CWDM4 MSA standard. The module converts 25Gb/s electrical data from 4 input channels (ch) into 4 CWDM optical signals and multiplexes them into a single channel for 100Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2.

Product Details

Huawei Compatible	QSFP-100G-CWDM4	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1271nm, 1291nm 1311nm, 1331nm	Max Distance	2km

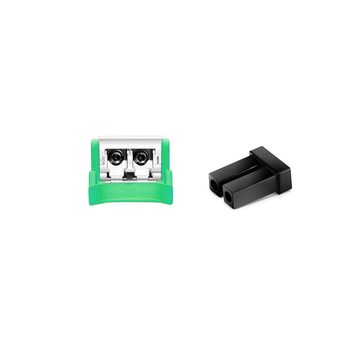

Connector	Duplex LC	Transmitter Type	CWDM DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	-6.5~+2.5dBm	Receiver Sensitivity	< -11.5dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP28-100G-FR1	QSFP28-100G-IR4
Huawei Compatible	QSFP-100G-FR1	QSFP-100G-CWDM4
Vendor Name	FiberMall	FiberMall
Form Factor	QSFP28	QSFP28
Max Data Rate	100Gbps Single Lambda	103.1Gbps
Wavelength	1310nm	1271nm, 1291nm 1311nm, 1331nm
Max Distance	2km	2km
Connector	Duplex LC	Duplex LC
Transmitter Type	EML	CWDM DFB
Cable Type	SMF	SMF
Receiver Type	PIN	PIN
TX Power	-2.4~+4.0dBm	-6.5~+2.5dBm
Receiver Sensitivity	< -4.5dBm	< -11.5dBm
DDM Support	YES	-
FEC Support	YES	-
Protocols	100G Lambda MSA 100G-FR, 100G Ethernet	100G Ethernet, MSA Compliant
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)

Product Features

v Single +3.3V power supply

v QSFP28 MSA package with duplex LC connector

v Supports103.1Gb/s, each lane bit rate 25.78 Gb/s

v 4 CWDM lanes MUX/DEMUX design

v Up to 2km transmission on single mode fiber (SMF) with FEC

v CWDM DFB laser and PIN receiver

v Maximum power consumption 3.5W

v Supports Data Center Interconnect, 100GBASE-SR4 100G Ethernet, Infiniband QDR, and DDR interconnects
