{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

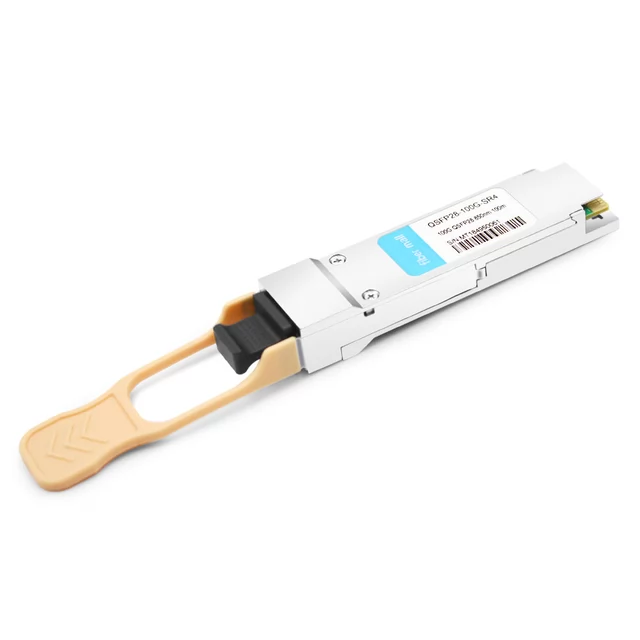

| FiberMall P/N | QSFP28-100G-SR4 | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelength | 850nm | Max Distance | 100m on OM4 |
| Connector | MTP/MPO-12 | Transmitter Type | 850nm VCSEL |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -8.4~+2.4dBm | Receiver Sensitivity | < -10.3dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
FiberMall P/N
|
QSFP28-100G-SR4
|
QSFP28-100G-SR1.2
|
QSFP28-100G-SRBD
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP28
|
QSFP28
|
QSFP28
|
|
Max Data Rate
|
103.1Gbps
|
100Gbps
|
40Gbps/100Gbps
|
|
Wavelength
|
850nm
|
850nm & 900nm
|
850nm & 900nm
|
|
Max Distance
|
100m on OM4
|
100m
|
100m
|
|
Connector
|
MTP/MPO-12
|
Duplex LC
|
Duplex LC
|
|
Transmitter Type
|
850nm VCSEL
|
850/900nm VCSEL
|
850/900nm VCSEL
|
|
Cable Type
|
MMF
|
MMF
|
MMF
|
|
Receiver Type
|
PIN
|
PIN
|
PIN
|
|
TX Power
|
-8.4~+2.4dBm
|
-6.0~+4.0dBm
|
-6.0~+4.0dBm
|
|
Receiver Sensitivity
|
< -10.3dBm
|
< -8.0dBm
|
<-8.0dBm
|
|
Protocols
|
100G Ethernet, MSA Compliant
|
100G Ethernet, QSFP28 MSA Compliant
|
100G Ethernet, QSFP28 MSA Compliant
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
Product Features
v Hot-pluggable QSFP28 form factor
v Supports 103.1Gb/s aggregate bit rates
v 4x25G electrical interface
v 4x25Gb/s 850nm VCSEL-based transmitter
v Power dissipation < 3.5W
v RoHS compliant
v Supports Data Center Interconnect, 100GBASE-SR4 100G Ethernet, Infiniband QDR, and DDR interconnects
Q: Why should I trust FIBERMALL.COM compatible transceivers? By E***g on 2019-10-22
A: Besides the price advantage we have compared to branded transceivers, FIBERMALL.COM compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.By HUIJING on 2019-10-22
1111111111By Lucy Lucy
really？By Lucas Conn
{{reply_items.text?reply_items.text:reply_items.topic}}By {{reply_items.author}}
