Palo Alto PAN-QSFP28-100GBASE-SR4 Compatible 100G SR4 | FiberMall

Add to wish

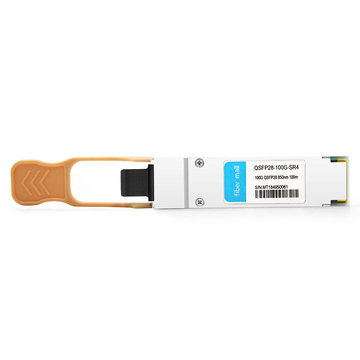

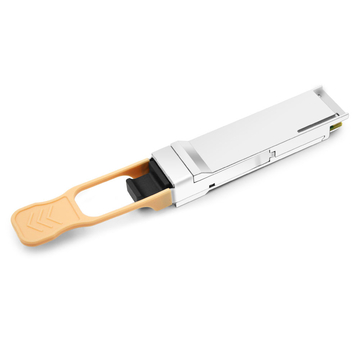

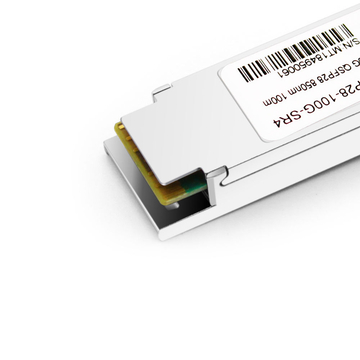

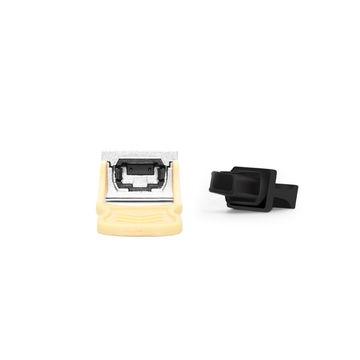

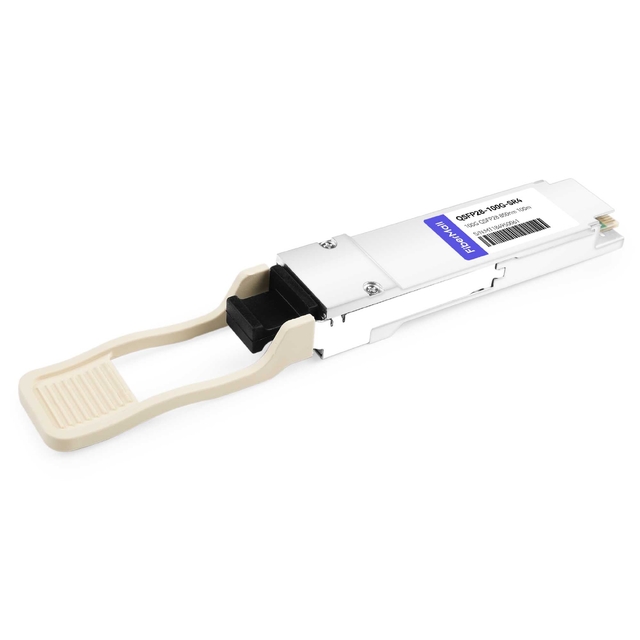

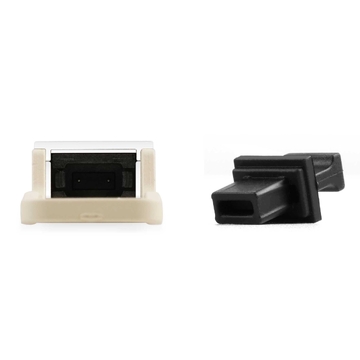

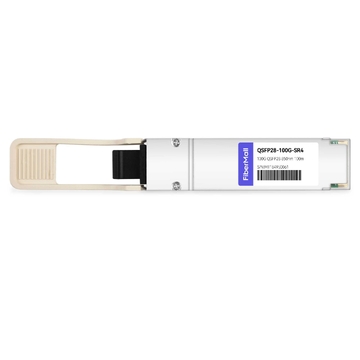

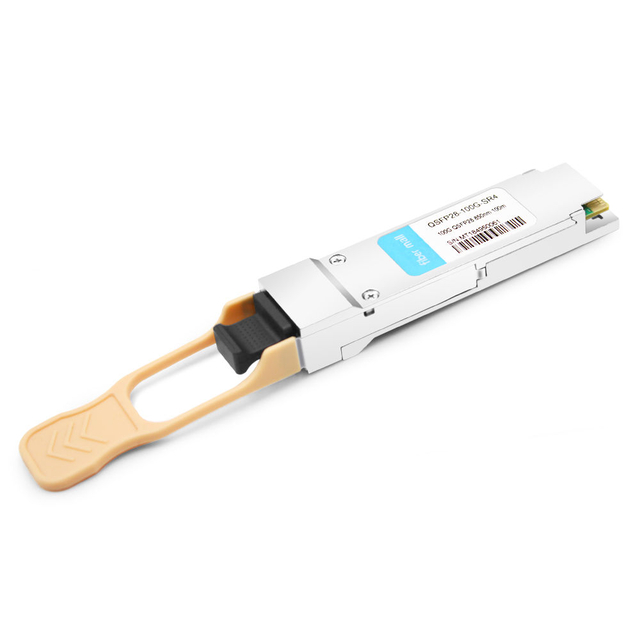

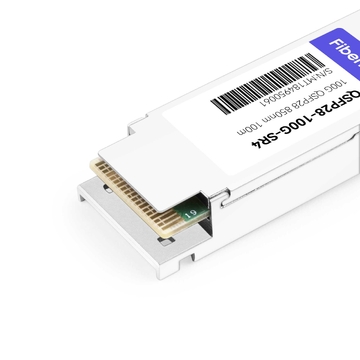

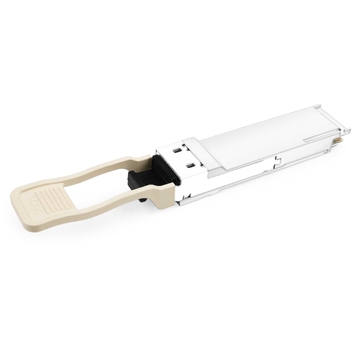

Palo Alto Networks PAN-QSFP28-100GBASE-SR4 Compatible 100G QSFP28 SR4 850nm 100m MTP/MPO MMF DDM Transceiver Module

Name: Palo Alto Networks PAN-QSFP28-100GBASE-SR4 Compatible 100G QSFP28 SR4 850nm 100m MTP/MPO MMF DDM Transceiver Module
Brand: fibermall
SKU: 17922
Price: 40.00 USD
Availability: OutOfStock
Rating: 4.8 (14 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:17922

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

100+ pieces

$ 36.00

Compatible: Cisco; FiberMall; AVAGO Broadcom; Arista Networks; Brocade; Ciena; DELL; EdgeCore; Extreme Networks; H3C; HPE (Aruba); HPE (BladeSystem); HPE (H3C); Huawei; Juniper Networks; Mellanox; Palo Alto Networks

Transceiver Type: PAN-QSFP28-100GBASE-SR4; PAN-QSFP28-100GBASE-CWDM4; PAN-QSFP28-100GBASE-4WDM-10; PAN-QSFP28-100GBASE-LR4

Transmission Mode: Regular

FM PN:

QSFP28-100G-SR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Palo Alto Networks PAN-QSFP28-100GBASE-SR4 Compatible 100G QSFP28 SR4 Transceiver Module (850nm MMF 100m MTP/MPO DDM)

The 100G QSFP28 SR4 transceiver modules are designed for 100G Ethernet links over multimode fiber. They are compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostic functions are available through the QSFP28 MSA-specified I2C interface.

Product Details

Palo Alto Networks Compatible	PAN-QSFP28-100GBASE-SR4	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	850nm	Max Distance	100m on OM4
Connector	MTP/MPO-12	Transmitter Type	850nm VCSEL
Cable Type	MMF	Receiver Type	PIN
TX Power	-8.4~+2.4dBm	Receiver Sensitivity	< -10.3dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v Hot-pluggable QSFP28 form factor

v Supports 103.1Gb/s aggregate bit rates

v 4x25G electrical interface

v 4x25Gb/s 850nm VCSEL-based transmitter

v Power dissipation < 3.5W

v RoHS compliant

v Supports Data Center Interconnect, 100GBASE-SR4 100G Ethernet, Infiniband QDR, and DDR interconnects
