{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

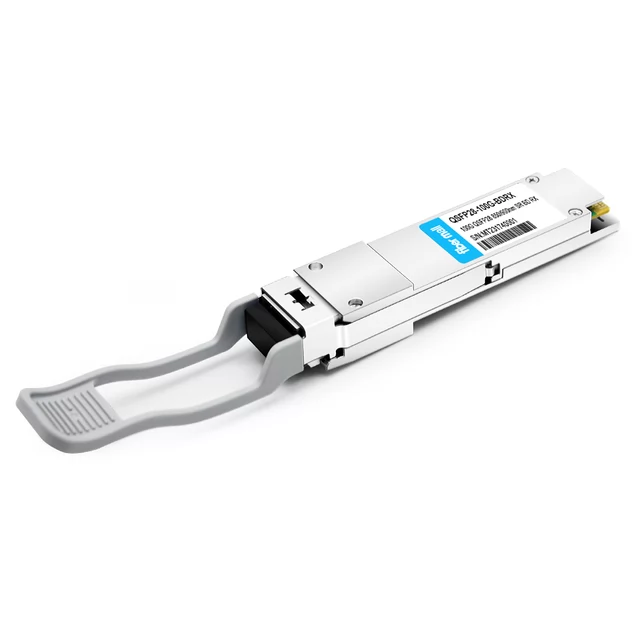

| FiberMall P/N | QSFP28-100G-BDRX | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps |
| Wavelength | 850nm & 900nm | Max Distance | 100m |
| Connector | Duplex LC | Cable Type | MMF |
| Receiver Type | PIN | Receiver Sensitivity | <-8.0dBm |
| Host FEC | Turned off | Modulation Format | PAM4 |
| Protocols | 100G Ethernet, QSFP28 MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Compliant with the 100GbE XLPPI electrical specification per IEEE 802.3bm
v Compliant to QSFP28 SFF-8636 Specification
v Aggregate bandwidth of > 100Gbps
v Dual wavelength optical interface, PAM4 2 × 50-Gb/s 850nm/900nm Only Receiver
v QSFP28 MSA compliant
v Single +3.3V power supply operating
v RoHS Compliant Part
v Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE CAUI4 interface with the host FEC turned off.
v Utilizes a standard LC duplex fiber cable allowing the reuse of existing cable infrastructure
v Supports 100 Gigabit Ethernet interconnects, Datacom/Telecom switch & router connections, Data aggregation and backplane applications, and Proprietary protocol and density applications
