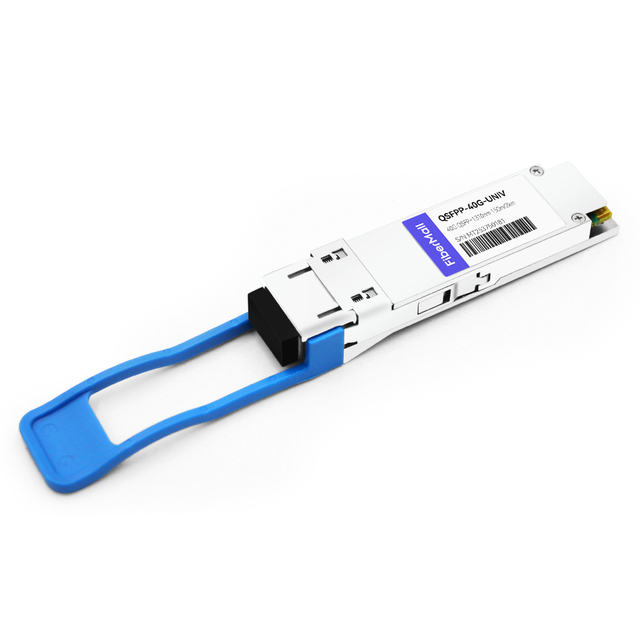

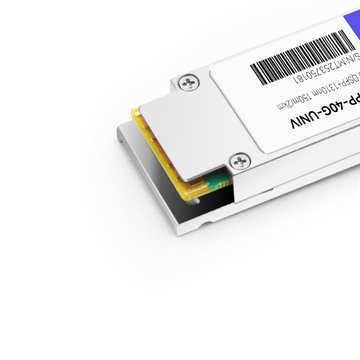

Cisco QSFP-40G-UNIV Compatible 40G QSFP+ UNIV Transceiver Module (1310nm MMF/SMF 150m/2km LC DDM)
This product is a transceiver module designed for optical transmission applications over both MMF and SMF with transmission distances of up to 150m on MMF (OM3) and 2kmon SMF. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex connector for the optical interface and a 148-pin connector for the electrical interface.
Product Details
| Cisco Compatible | QSFP-40G-UNIV | Vendor Name | FiberMall |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1310nm | Max Distance | 2km on SMF / 150m on OM3 MMF |
| Connector | LC Duplex | Transmitter Type | 4 Lanes CWDM DFB |
| Cable Type | MMF/SMF | Receiver Type | PIN |
| TX Power | -7~2.3dBm | Receiver Sensitivity | < -10.5dBm |
| Protocols | 40G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
Keep In Stock
- Fast Delivery
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
Professional Service
- Technical Support
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
- Coding(EEPROM Programming)
![Cisco QSFP-40G-UNIV 40G QSFP UNIV Optical Module | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
