Arista QSFP-40G-UNIV 40G QSFP+ UNIV Transceiver | FiberMall

OFF

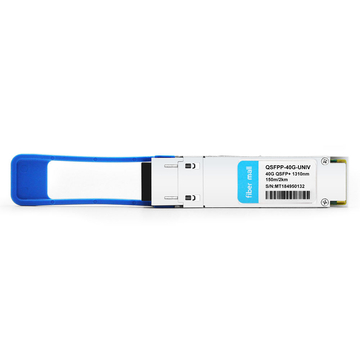

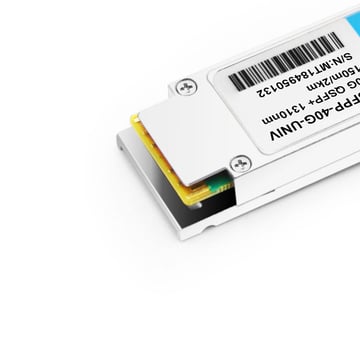

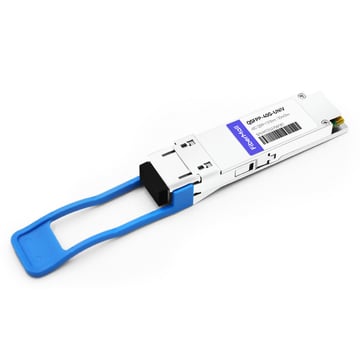

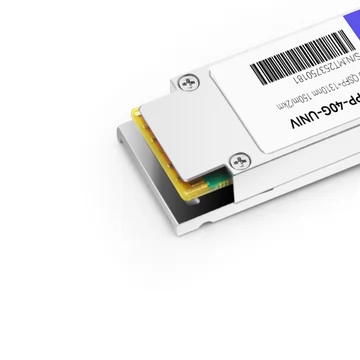

Arista Networks QSFP-40G-UNIV Compatible 40G QSFP+ UNIV 1310nm 150m/2km LC MMF/SMF DDM Transceiver Module

Add to wish

OFF

Arista Networks QSFP-40G-UNIV Compatible 40G QSFP+ UNIV 1310nm 150m/2km LC MMF/SMF DDM Transceiver Module

Name: Arista Networks QSFP-40G-UNIV Compatible 40G QSFP+ UNIV 1310nm 150m/2km LC MMF/SMF DDM Transceiver Module
Brand: fibermall
SKU: 10086
Price: 149.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:10086

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Brocade; DELL; DELL Force10; EdgeCore; Extreme; Huawei; Juniper

Transceiver Type: QSFP-40G-SR4; QSFP-40G-XSR4; QSFP-40G-LRL4; QSFP-40G-PLRL4; QSFP-40G-LR4; QSFP-40G-PLR4; QSFP-40G-UNIV; QSFP-40G-SRBD-R; QSFPP-40G-SR-BD; QSFP-40G-ER4; QSFPP-40G-ZR4-Lite-AN; QSFPP-40G-ZR4-AN; QSFPP-40G-EZR4-AN

FM PN:

QSFPP-40G-UNIV

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Arista Networks QSFP-40G-UNIV Compatible 40G QSFP+ UNIV Transceiver Module (1310nm MMF/SMF 150m/2km LC DDM )

This product is a transceiver module designed for optical transmission applications over both MMF and SMF with transmission distances of up to 150m on MMF (OM3) and 2kmon SMF. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex connector for the optical interface and a 148-pin connector for the electrical interface.

Product Details

Arista Networks Compatible	QSFP-40G-UNIV	Vendor Name	FiberMall
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	1310nm	Max Distance	2km on SMF / 150m on OM3 MMF
Connector	LC Duplex	Transmitter Type	4 Lanes CWDM DFB
Cable Type	MMF/SMF	Receiver Type	PIN
TX Power	-7~2.3dBm	Receiver Sensitivity	< -10.5dBm
Protocols	40G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v 4 CWDM lanes MUX/DEMUX design

v Up to 11.2Gb/s data rate per wavelength

v QSFP+ MSA compliant

v IEEE 802.3ba Electrical Interface

v Compliant with QDR/DDR Infiniband data rates

v Up to 150m transmission on OM3 multimode fiber (MMF) or 2km transmission on single mode fiber (SMF)

v Maximum power consumption 3.5W

v Supports Data centers, 40GBASE-LX4 Ethernet Links, Infiniband QDR, and DDR interconnect, Client-side 40G datacom connections
