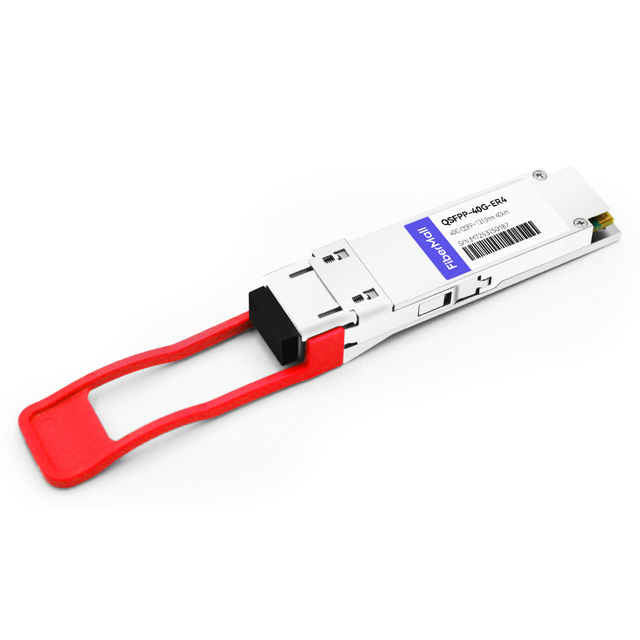

Cisco QSFP-40G-ER4 40GBase ER4 Transceiver Module | FiberMall

10%

OFF

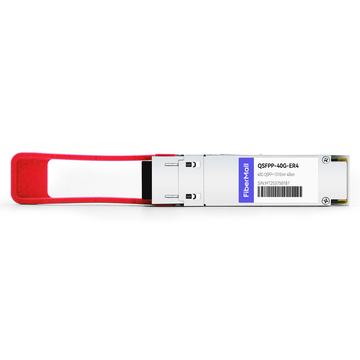

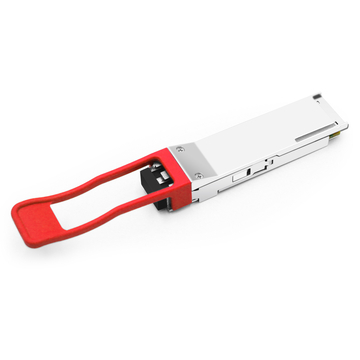

Cisco QSFP-40G-ER4 Compatible 40G QSFP+ ER4 1310nm (CWDM4) 40km LC SMF DDM Transceiver Module

Add to wish

10%

OFF

Cisco QSFP-40G-ER4 Compatible 40G QSFP+ ER4 1310nm (CWDM4) 40km LC SMF DDM Transceiver Module

Name: Cisco QSFP-40G-ER4 Compatible 40G QSFP+ ER4 1310nm (CWDM4) 40km LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 10142
Price: 449.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:10142

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Brocade; DELL Force10; Extreme; H3C; HPE (Aruba); HPE (H3C); Huawei; Intel; Juniper; Mellanox; Palo Alto Networks

Transceiver Type: QSFP-40G-SR4; QSFP-40G-SR4-S; QSFP-40G-CSR4; WSP-Q40GLR4L; QSFP-40G-PLRL4; ONS-QSFP-4X10-MLR=; QSFP-40G-LR4; QSFP-40G-LR4-S; QSFP-40G-UNIV; QSFP-4X10G-LR-S; QSFP-40G-BD-RX; QSFP-40G-LR4-20; QSFP-40G-SR-BD; QSFP-40G-ER4; QSFPP-40G-ZR4-Lite-CI; QSFPP-40G-ZR4-CI; QSFPP-40G-EZR4-CI

FM PN:

QSFPP-40G-ER4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Cisco QSFP-40G-ER4 Compatible 40G QSFP+ ER4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 40km LC DDM)

The QSFPP-40G-ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant with 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals and converts them to 4-channel output electrical data.

Product Details

Cisco Compatible	QSFP-40G-ER4	Vendor Name	FiberMall
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	1271nm, 1291nm 1311nm, 1331nm	Max Distance	40km
Connector	LC Duplex	Transmitter Type	4 Lanes CWDM DFB
Cable Type	SMF	Receiver Type	APD
TX Power	-3.7~4.5dBm	Receiver Sensitivity	< -22dBm
Protocols	OTN OTU3, 40G Ethernet, Infiniband, Fiber Channel, SATA/SAS3, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v 4 CWDM lanes MUX/DEMUX design

v Up to 11.2Gbps per channel bandwidth

v Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard

v QSFP MSA compliant

v Up to 40 km transmission

v Compliant with QDR/DDR Infiniband data rates

v Single +3.3V power supply operating

v RoHS Compliant Part

v Supports 40 Gigabit Ethernet interconnects, Datacom/Telecom switch & router connections, Data aggregation, and 40G BASE-ER4 Ethernet Links.
