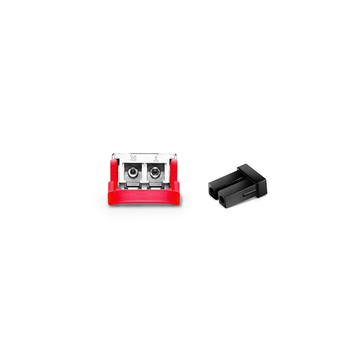

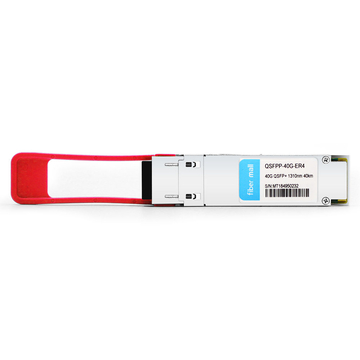

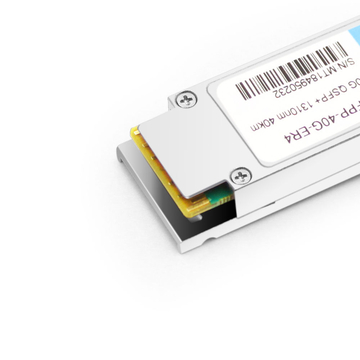

40G QSFP+ ER4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 40km LC DDM)
The QSFPP-40G-ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant with 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 WDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals and converts them to 4-channel output electrical data.
Product Details
| FiberMall P/N | QSFPP-40G-ER4 | Vendor Name | FiberMall |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1271nm, 1291nm
1311nm, 1331nm | Max Distance | 40km |
| Connector | LC Duplex | Transmitter Type | 4 Lanes CWDM DFB |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | -3.7~+4.5dBm | Receiver Sensitivity | < -22dBm |
| Protocols | OTN OTU3, 40G Ethernet, Infiniband, Fiber Channel, SATA/SAS3, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
Keep In Stock
- Fast Delivery
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
Professional Service
- Technical Support
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
- Coding(EEPROM Programming)
![40Gbase QSFP+ ER4 Optical Transceiver Module | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
