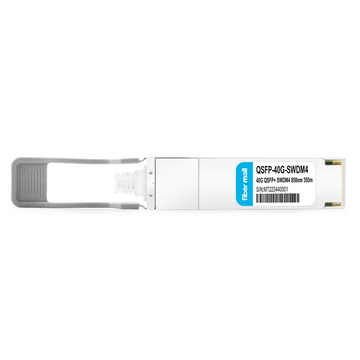

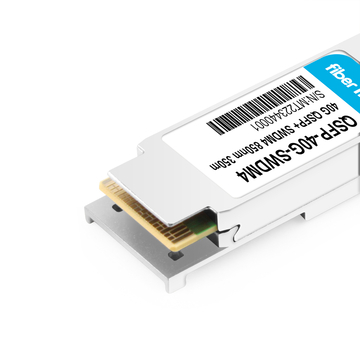

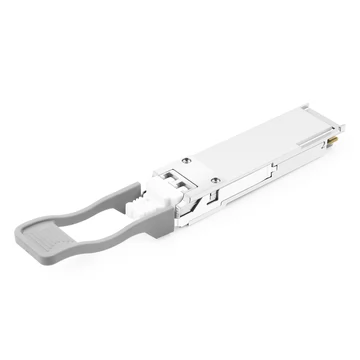

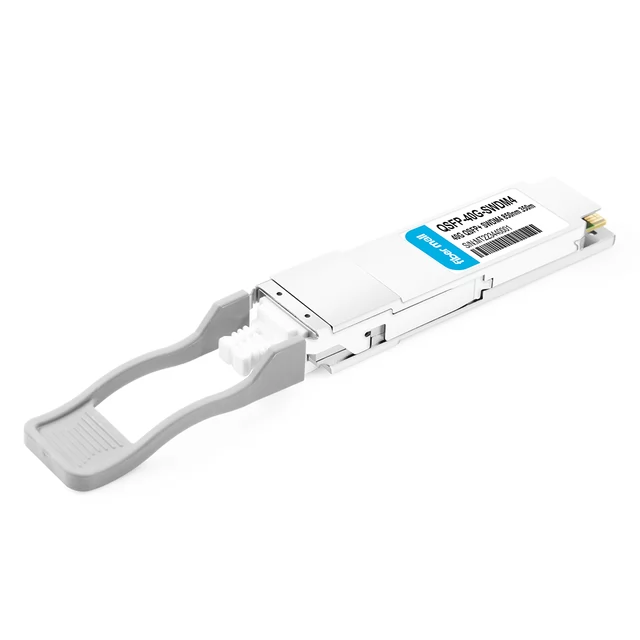

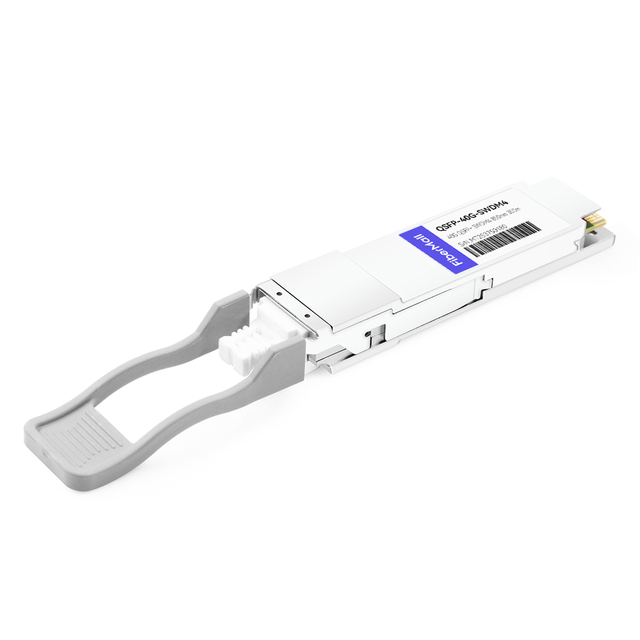

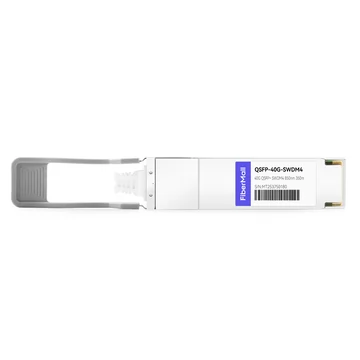

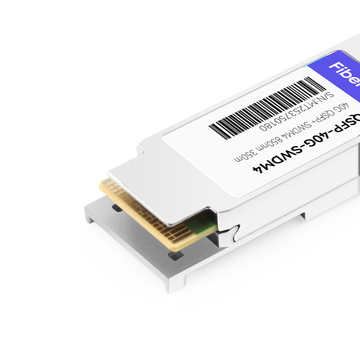

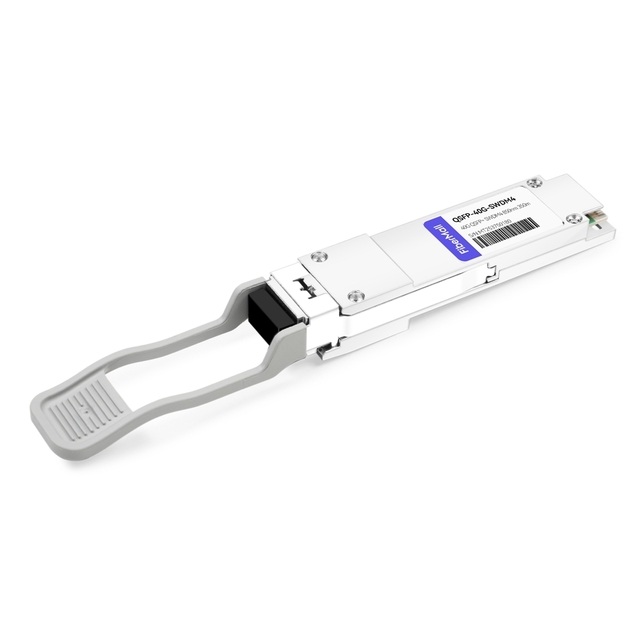

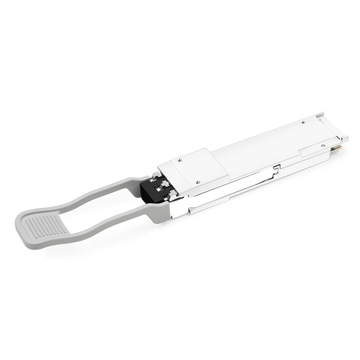

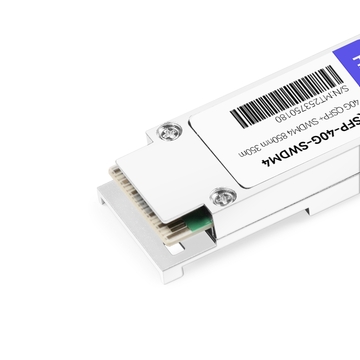

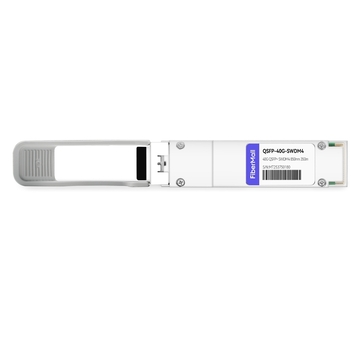

The 40G QSFP+ SWDM4 transceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region 10Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.
| FiberMall P/N | QSFP-40G-SWDM4 | Vendor Name | FiberMall |
| Form Factor | QSFP+ | Max Data Rate | 41.2Gb/s |
| Wavelength | 850nm, 880nm, 910nm, 940nm | Max Distance | 240m@OM3/350m@OM4 |
| Connector | Duplex LC | Transmitter Type | 850mm VCSEL |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -7.5~+3.0dBm | Receiver Sensitivity | < -9.1dBm |
| Protocols | 40Gigabit Ethernet, 10Gigabit Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
? Compliant with QSFP+ MSA, SWDM MSA, SFF-8636,IEEE 802.3ba
? Hot-pluggable QSFP+ form factor
? 4x10Gb/s VCSEL-based SWDM transmitter
? Supports 41.2Gbps aggregate bit rate
? Power dissipation<3.5W
? Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF

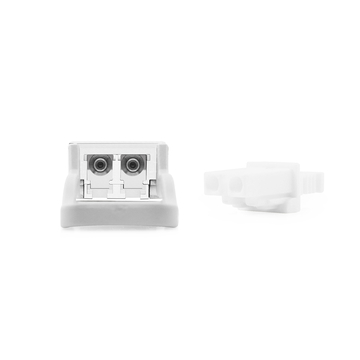

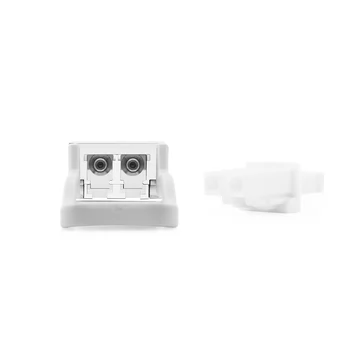

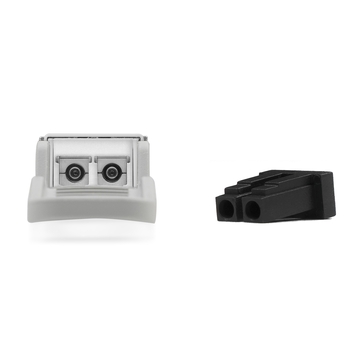

? Duplex LC receptacles
? XLPPI electrical interface
? RoHS compliant
? XLPPI electrical interface
