Huawei QSFP-DD-400G-DR4 400G QSFP-DD DR4 | FiberMall

Add to wish

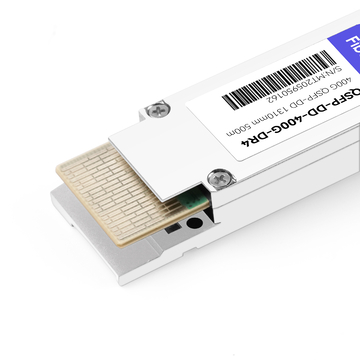

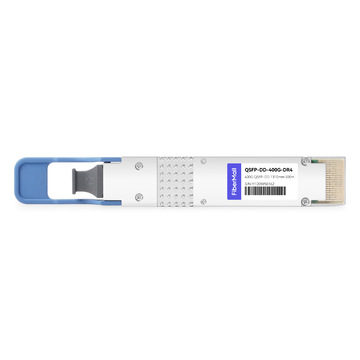

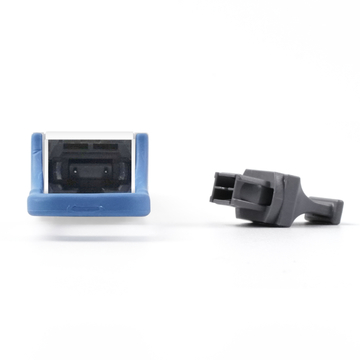

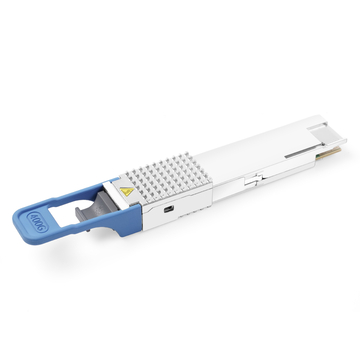

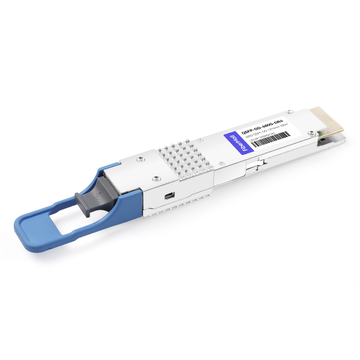

Huawei QSFP-DD-400G-DR4 Compatible 400G QSFP-DD DR4 PAM4 1310nm 500m MTP/MPO SMF FEC Optical Transceiver Module

Name: Huawei QSFP-DD-400G-DR4 Compatible 400G QSFP-DD DR4 PAM4 1310nm 500m MTP/MPO SMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 20250
Price: 450.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20250

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; AVAGO (Broadcom); Arista Networks; Ciena; EdgeCore; Huawei; Juniper Networks

Transceiver Type: QSFP-DD-400G-SR8; QSFP-DD-400G-DR4; QSFP-DD-400G-FR4; QSFP-DD-400G-SR4; QSFP-DD-400G-LR8

FM PN:

QSFP-DD-400G-DR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Huawei QSFP-DD-400G-DR4 Compatible 400G QSFP-DD DR4 Transceiver Module Use for Enterprise Core and Data Center(PAM4, 1310nm, 500m, MTP/MPO-12, DDM, SMF)

Huawei QSFP-DD-400G-DR4 Compatible 400G QSFP-DD DR4 Transceiver supports 500m, 8x53.125Gbps (PAM4) EI and uses a wavelength of 1310nm via MTP/MPO-12 connector. The Transceiver complies with QSFP-DD MSA, IEEE 802.3bs protocol, and 400GAUI-8 standard. 400 Gigabit Ethernet signals are transmitted over four parallel channels on one wavelength per channel. It can also be connected to 100G DR optical modules. It adopts a 1310nm EML transmitter type and PAM4 pulse amplitude modulation mode. It is used in data centers, high-performance computing networks, enterprise cores, distribution layers, and service provider applications.

Product Details

Huawei Compatible	QSFP-DD-400G-DR4	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	500m
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-12	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	1310nm EML	Receiver Type	PIN
TX Power	-2.9~+4.0dBm	Receiver Sensitivity	< -5.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 10.5W
Protocols	QSFP-DD MSA, IEEE 802.3bs 400GBASE-DR4	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP-DD-400G-DR4	OSFP-400G-DR4-FLT	OSFP-400G-DR4	OSFP-400G-DR4+
Huawei Compatible	QSFP-DD-400G-DR4	-	-	-
Vendor Name	FiberMall	FiberMall	FiberMall	FiberMall
Form Factor	QSFP-DD	OSFP	OSFP	OSFP
Max Data Rate	425Gbps	425Gbps	425Gbps	425Gbps
Wavelength	1310nm	1310nm	1310nm	1310nm
Max Distance	500m	500m	500m	2km
Modulation Format	PAM4	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC	FEC
Connector	MTP/MPO-12	MTP/MPO-12 APC	MTP/MPO-12	MTP/MPO-12
Voltage Supply	3.3V	3.3V	3.3V	3.3V
Cable Type	SMF	SMF	SMF	SMF
DDM Support	Yes	Yes	Yes	Yes
Transmitter Type	1310nm EML	1310nm EML	1310nm EML	1310nm EML
Receiver Type	PIN	PIN	PIN	PIN
TX Power	-2.9~+4.0dBm	-2.9~+4.0dBm	-2.9~+4.0dBm	-2.4~+4.0dBm
Receiver Sensitivity	< -5.9dBm	< -4.4dBm	< -4.4dBm	< -6.4dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 10.5W	< 12.0W	< 12.0W	< 12.0W
Protocols	QSFP-DD MSA, IEEE 802.3bs 400GBASE-DR4	OSFP MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects

Product Features

v QSFP-DD MSA compliant

v Parallel 4 Optical Lanes

v IEEE 802.3bs 400GBASE-DR4 Specification compliant

v 8x53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 106.25Gbps (PAM4) per channel

v Maximum power consumption 12W

v Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking

v RoHS compliant

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

M***s

United States

Verified Purchase

5.0

2023-12-05

I have received the package and put into operation some optical transceivers. the 400G QSFP-DD DR4 module works as expected and there are no problems so far. We are very happy with the quality of your product.

5 Helpful vote Comments

R***d

United States

Verified Purchase

5.0

2023-11-11

I appreciate your solution which enables me to establish 400G to 100G connections.

5 Helpful vote Comments

N***y

United States

Verified Purchase

5.0

2023-03-15

I have tested the 400G QSFP-DD DR4 module in a test environment and it works well.
