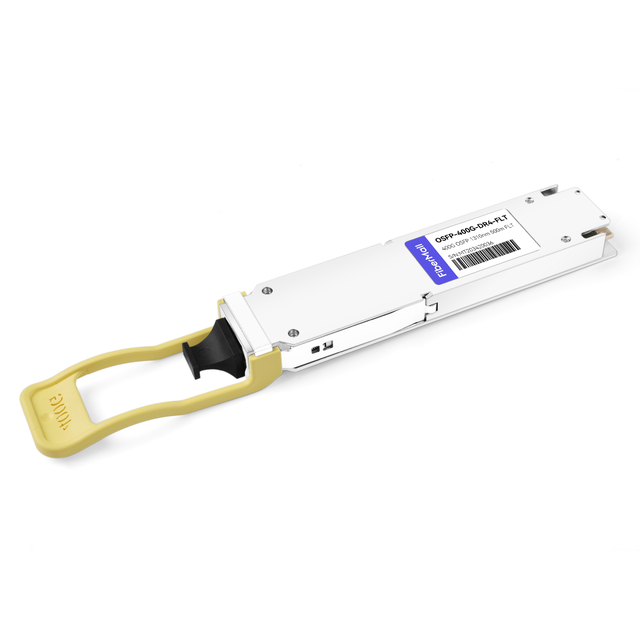

400G OSFP DR4 Flat Top 1310nm 500m Transceiver | FiberMall

Add to wish

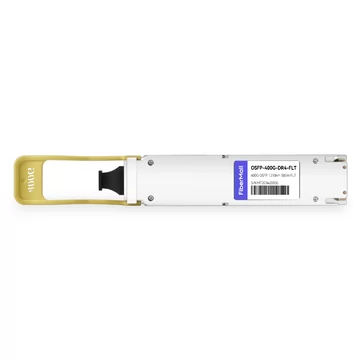

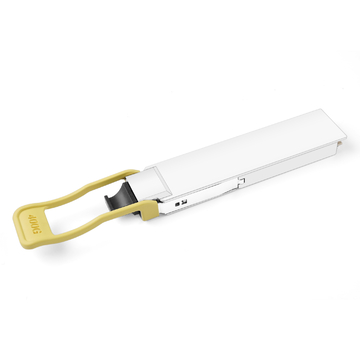

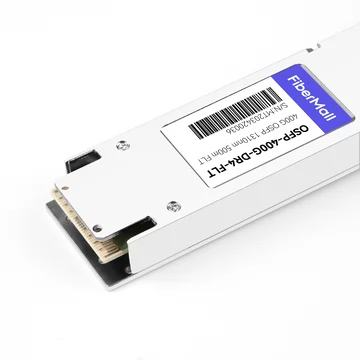

OSFP-400G-DR4-FLT 400G OSFP DR4 Flat Top PAM4 1310nm MTP/MPO-12 500m SMF FEC Optical Transceiver Module

Name: OSFP-400G-DR4-FLT 400G OSFP DR4 Flat Top PAM4 1310nm MTP/MPO-12 500m SMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 19231
Price: 800.00 USD
Availability: OutOfStock
Rating: 4.8 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19231

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Transceiver Type: OSFP-400G-SR8; OSFP-400G-SR4-FLT; OSFP-400G-DR4-FLT; OSFP-400G-DR4+; OSFP-400G-DR4; OSFP-400G-FR4; OSFP-400G-LR4; OSFP-400G-PSM8; OSFP-2x200G-FR4

FM PN:

OSFP-400G-DR4-FLT

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

OSFP-400G-DR4-FLT 400G DR4 OSFP Flat Top PAM4 Optical Transceiver Module (1310nm MTP/MPO-12 500m SMF with FEC DDM)

The 400G OSFP DR4 Flat Top transceiver module is designed for 400 Gigabit Ethernet links over 500m single mode fiber. The module has 4 independent electrical input/output channels operating up to 106.25Gbps per channel. This transceiver consists of a transmitter/receiver unit, each operating on a set of wavelengths at 1310nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an EML laser and a 4-channel internal driver. On the receiver path, used 4 photodiodes and a 4-channel TIA array, along with the PAM4 re-timer.

Product Details

FiberMall P/N	OSFP-400G-DR4-FLT	Vendor Name	FiberMall
Form Factor	OSFP	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	500m
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-12 APC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	1310nm EML	Receiver Type	PIN
TX Power	-2.9~+4.0dBm	Receiver Sensitivity	< -4.4dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 12.0W
Protocols	OSFP MSA, IEEE 802.3bs	Application	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects

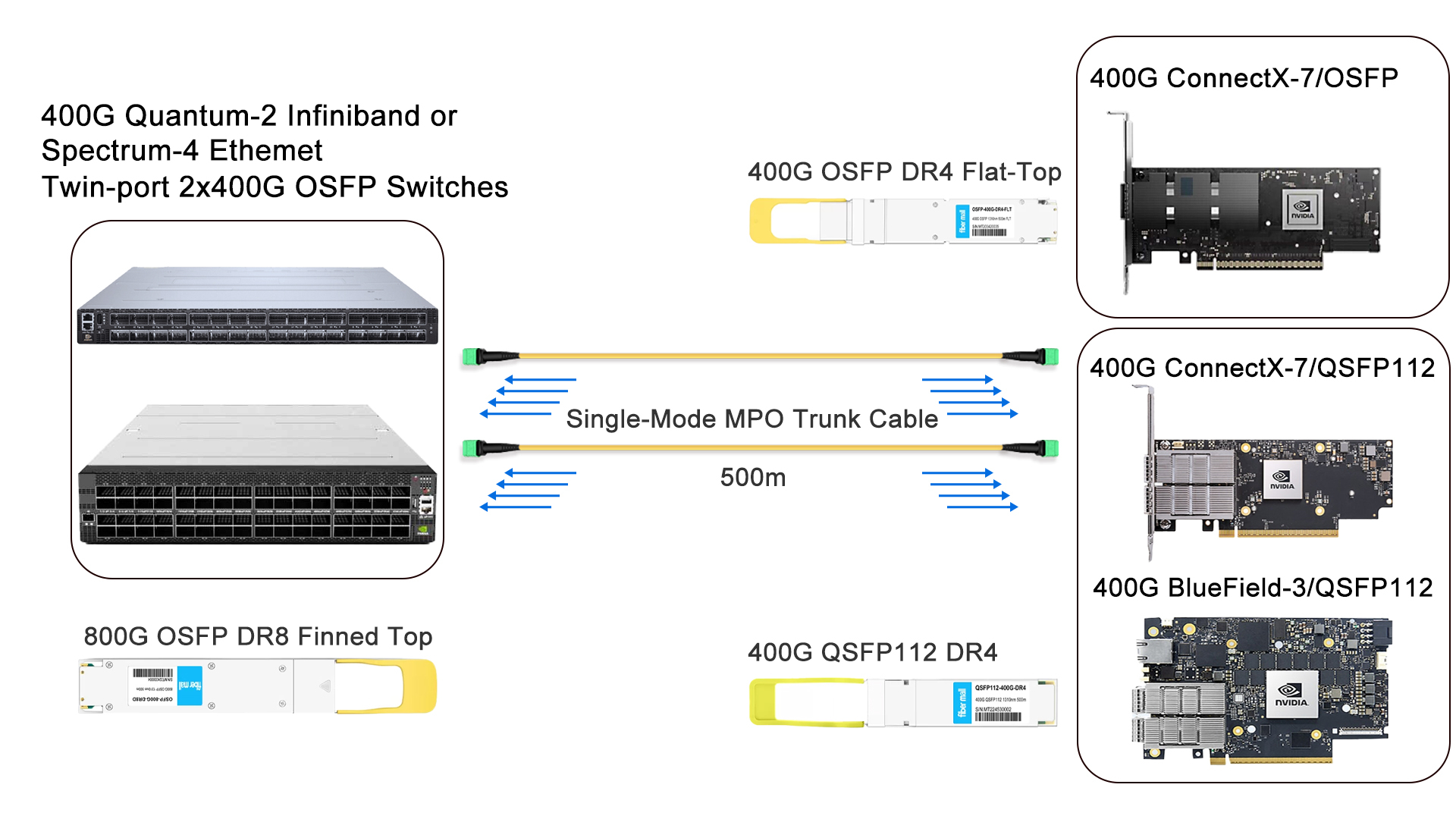

2x400G to 400G Links

400GIB/EN Switches to 2 Connectx-7 and BIueField-3

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes:

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

3. 400G is supported as 4x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems

	OSFP-400G-DR4-FLT	OSFP-400G-DR4	OSFP-400G-DR4+
FiberMall P/N	OSFP-400G-DR4-FLT	OSFP-400G-DR4	OSFP-400G-DR4+
Vendor Name	FiberMall	FiberMall	FiberMall
Form Factor	OSFP	OSFP	OSFP
Max Data Rate	425Gbps	425Gbps	425Gbps
Wavelength	1310nm	1310nm	1310nm
Max Distance	500m	500m	2km
Modulation Format	PAM4	PAM4	PAM4
Host Required	FEC	FEC	FEC
Connector	MTP/MPO-12 APC	MTP/MPO-12	MTP/MPO-12
Voltage Supply	3.3V	3.3V	3.3V
Cable Type	SMF	SMF	SMF
DDM Support	Yes	Yes	Yes
Transmitter Type	1310nm EML	1310nm EML	1310nm EML
Receiver Type	PIN	PIN	PIN
TX Power	-2.9~+4.0dBm	-2.9~+4.0dBm	-2.4~+4.0dBm
Receiver Sensitivity	< -4.4dBm	< -4.4dBm	< -6.4dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 12.0W	< 12.0W	< 12.0W
Protocols	OSFP MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs	OSFP MSA, IEEE 802.3bs
Application	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects

400G OSFP

Product Features

v OSFP MSA compliant

v Parallel 4 Optical Lanes

v IEEE802.3bs Specification compliant

v Up to 500m transmission on single mode fiber (SMF) with FEC

v Operating case temperature: 0 to 70oC

v 4x100G PAM4 retimed 400GAUI-4 electrical interface

v Data Rate 106.25Gbps (PAM4) per channel.

v Maximum power consumption 12W

v MPO-12 APC connector

v RoHS compliant

Applications

v 400G Ethernet

v Infiniband Interconnects

v Datacenter Enterprise Networking

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

Jordan Hayes

Verified Purchase

5.0

2024-06-15

Installing this 400G OSFP DR4 optical module was very simple, it is immediately recognized after being plugged in and it is fully compatible with our NVIDIA networking equipment.

5 Helpful vote Comments

A***e

United States

Verified Purchase

5.0

2023-11-17

Our data center handles a lot of real-time, high-volume transactions. Since we installed the 400G transceivers, we've seen a dramatic improvement in reliability. No packet loss, no errors - just consistently high quality performance under continuous high workloads.

3 Helpful vote Comments

B***m

United States

Verified Purchase

5.0

2023-09-01

I was initially concerned about the complexity of upgrading to 400G, but the modules made it straightforward. The flat top design was ideal for our dense rack configuration, and installation was a breeze with no compatibility issues. It was a near plug-and-play experience that had us operational in no time.

1 Helpful vote Comments

G***n

United States

Verified Purchase

4.0

2023-08-11

As we scale our data center, power consumption is a major consideration. These NVIDIA modules are not only powerful, but also surprisingly energy efficient. After a few months of operation, we noticed a significant reduction in power consumption compared to the old modules, which is a huge advantage from a sustainability and cost perspective.
