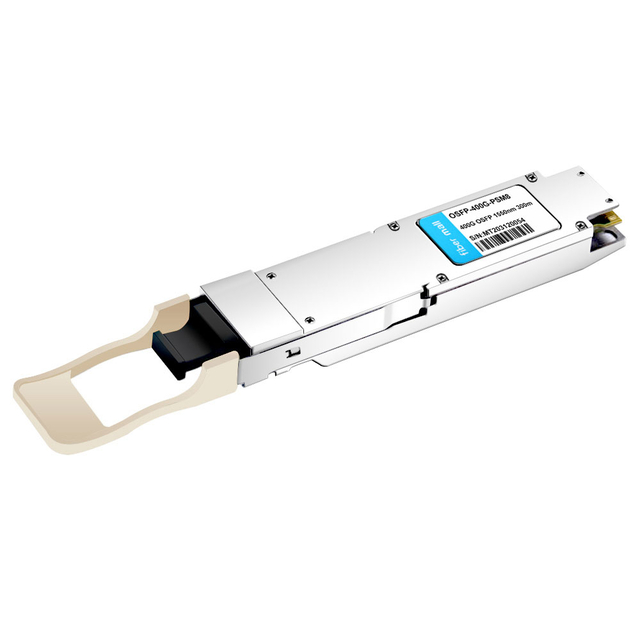

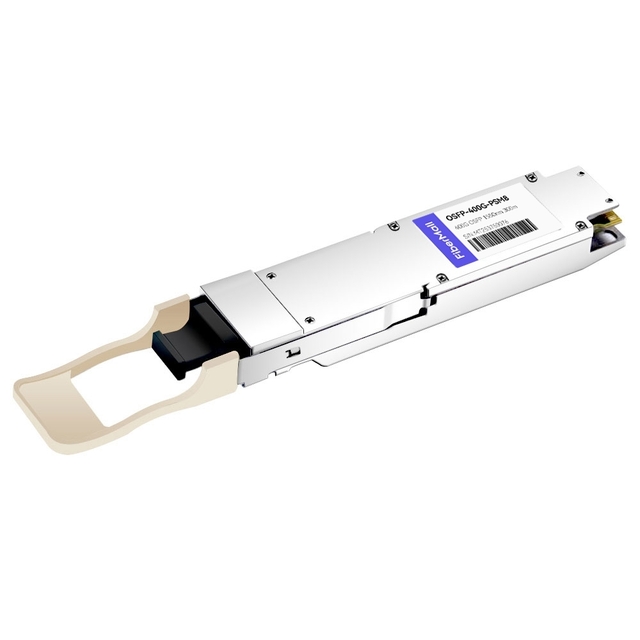

OSFP-400G-PSM8 is a 300m transmission Optical Module | FiberMall

Add to wish

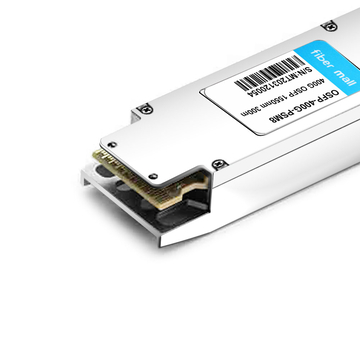

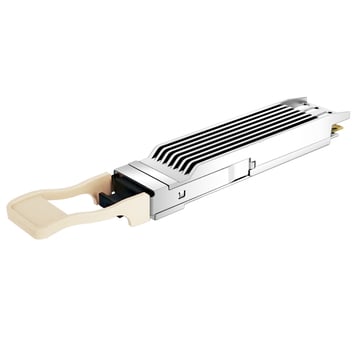

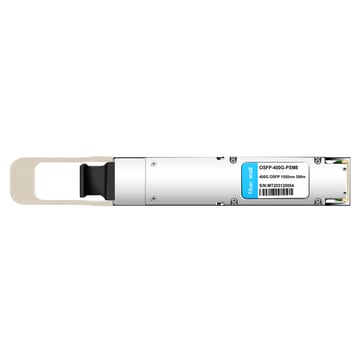

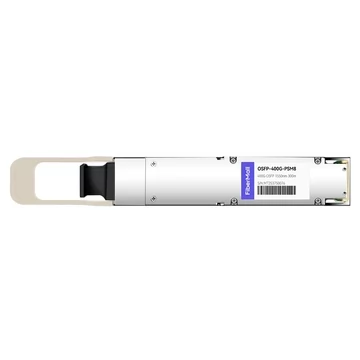

OSFP-400G-PSM8 400G PSM8 OSFP PAM4 1550nm MTP/MPO-16 300m SMF FEC Optical Transceiver Module

Name: OSFP-400G-PSM8 400G PSM8 OSFP PAM4 1550nm MTP/MPO-16 300m SMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 18118
Price: 1200.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18118

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Transceiver Type: OSFP-400G-SR8; OSFP-400G-SR4-FLT; OSFP-400G-DR4-FLT; OSFP-400G-DR4+; OSFP-400G-DR4; OSFP-400G-FR4; OSFP-400G-LR4; OSFP-400G-PSM8; OSFP-2x200G-FR4

FM PN:

OSFP-400G-PSM8

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

400G PSM8 OSFP PAM4 Silicon Photonic Basis Optical Transceiver Module (1550nm MTP/MPO-16 SMF 300m with FEC DDM)

Product Details

FiberMall P/N	OSFP-400G-PSM8	Vendor Name	FiberMall
Form Factor	OSFP	Max Data Rate	425Gbps
Wavelength	1550nm	Max Distance	2km
Modulation Format	PAM4	Host Required	KP4 FEC
Connector	MTP/MPO-16	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	CWDM Laser	Receiver Type	PD+TIA
TX Power	-3.3~+0dBm	Receiver Sensitivity	< -6.3dBm/-11.35dBm
Operation Temperature	20 to 52°C (68 to 125.6°F)	Maximum Power	< 9.0W
Protocols	OSFP MSA	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

400G OSFP

Product Features

v OSFP MSA compliant

v Silicon Photonic Basis

v 8 parallel lanes on 1550nm center wavelength

v Compliant to 400G_SiP_PSM8_Module Specification

v Up to 300m transmission on single mode fiber (SMF) with KP4 FEC

v Operating case temperature: 20 to 52oC

v 8x53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 53.125Gbps (PAM4) per channel.

v Maximum power consumption 9W

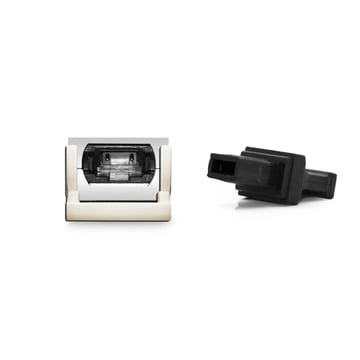

v MPO-16 connector

v RoHS compliant

Applications

v Data Center Interconnect

v 400G Ethernet

v Infiniband Interconnects

v Enterprise Networking
