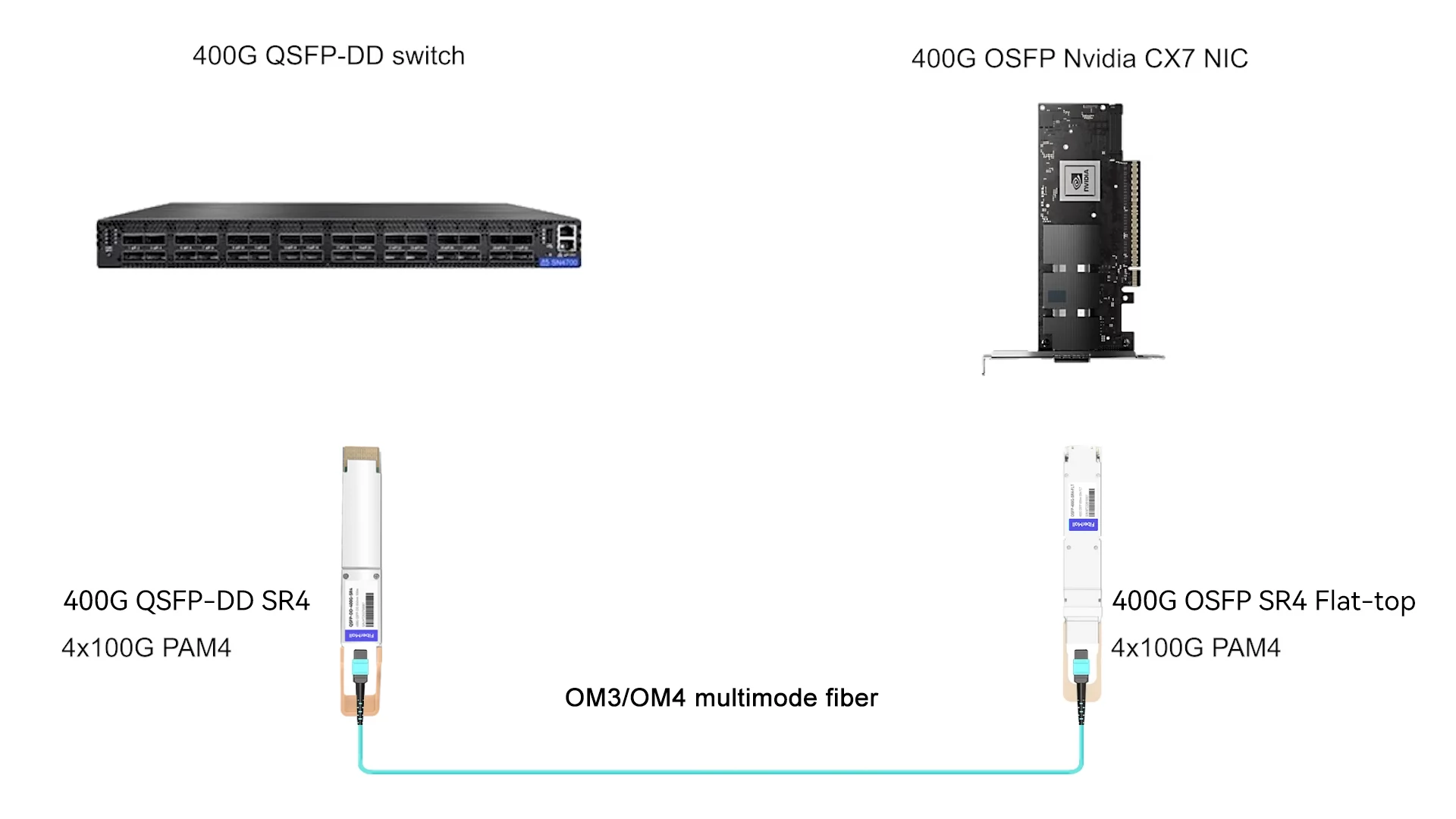

400G QSFP-DD SR4 is used to connect 400G QSFP-DD switches and NVIDIA ConnectX-7 NDR 400G OSFP or QSFP112 InfiniBand Adapter Card.
Huawei Compatible | QSFP-DD-400G-SR4 | Vendor Name | FiberMall |
Form Factor | QSFP-DD | Wavelength | 850nm |
Max Distance | 60m on OM3/100m on OM4 | Modulation Format | PAM4 |
Host Required | FEC | Connector | MTP/MPO-12 |
Voltage Supply | 3.3V | Cable Type | MMF |
Modulation (electrical) | 8x53.125Gb/s PAM4 | Modulation (Optical) | 4x106.25Gb/s PAM4 |
TX Power | -4.6~+4.0dBm | Receiver Sensitivity | <-6.4dBm |
DDM Support | Yes | Receiver Type | PIN |
Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | <9W |
Protocols | QSFP-DD MSA, IEEE 802.3bs | Application | 400G Ethernet, Data Center Interconnect |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
