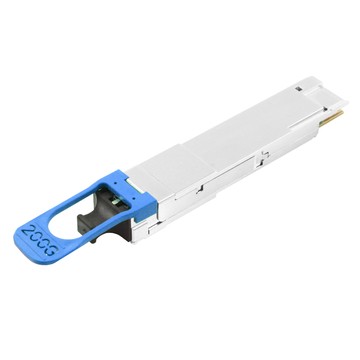

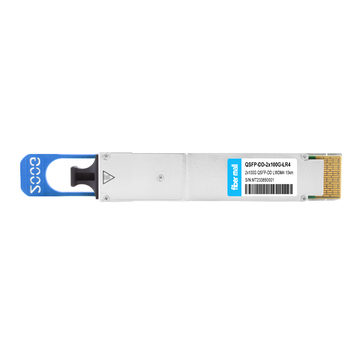

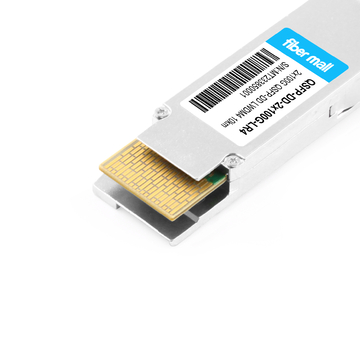

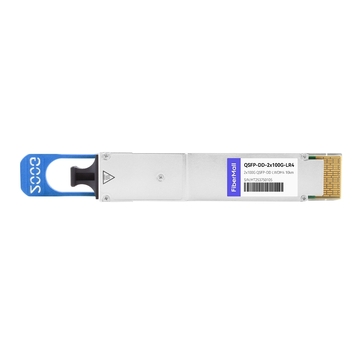

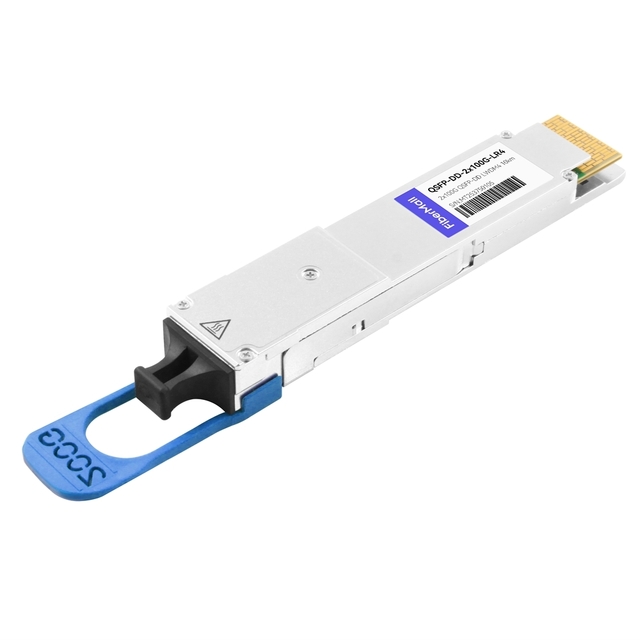

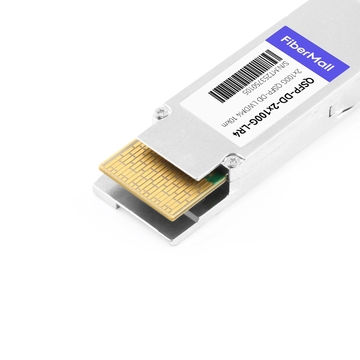

QSFP-DD 2x100GBASE-LR4 optical transceiver modules are suitable for data centers and HPC (High-Performance Computing) links up to 10km over single-mode fiber. It also features outstanding BER and high sensitivity because of its reliable design and excellent coupling efficiency.
| Cisco Compatible | QDD-2X100-LR4-S | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 212.5Gbps |
| Wavelength | 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm | Max Distance | 10km |

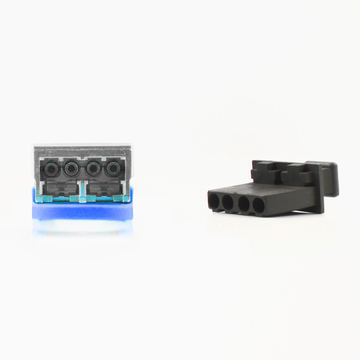

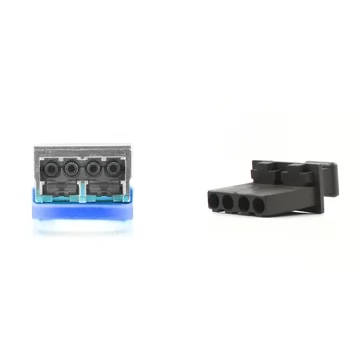

| Connector | Duplex CS | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | DML LWDM4 | Receiver Type | PIN |
| TX Power | Each Lane | Receiver Sensitivity | < -8.6 dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 8W |
| Protocols | SFF-8665 CMIS 3.0 QSFP-DD MSA | Application | 100G Ethernet |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports 206Gbps
v Single 3.3V Power Supply
v Power dissipation < 8.0W
v QSFP-DD MSA Compliant
v 8*25Gbps DML transmitter
v I2C interface with integrated Digital Diagnostic Monitoring
v RoHS compliant
v 2x100G QSFP-DD LWDM4 applications
